Bose Wave music system Supplementary Guide

6
UNDER-CABINET INSTALLATION
EnglishEspañolItaliano DeutschFrançaisNederlandsKorean ThaiArabic S. Chin
Finalizing the under-cabinet assembly
You are now ready to assemble the bracket, using one of the two assembly screws:
1. On the top of the platform, fit the mounting assembly alignment pin into the rear of the
three holes (Figure 6).
2. From under the platform, insert the screw through the middle hole on the platform !
and into the mounting assembly bar above the platform. Tighten the screw to hold the
platform securely in place.

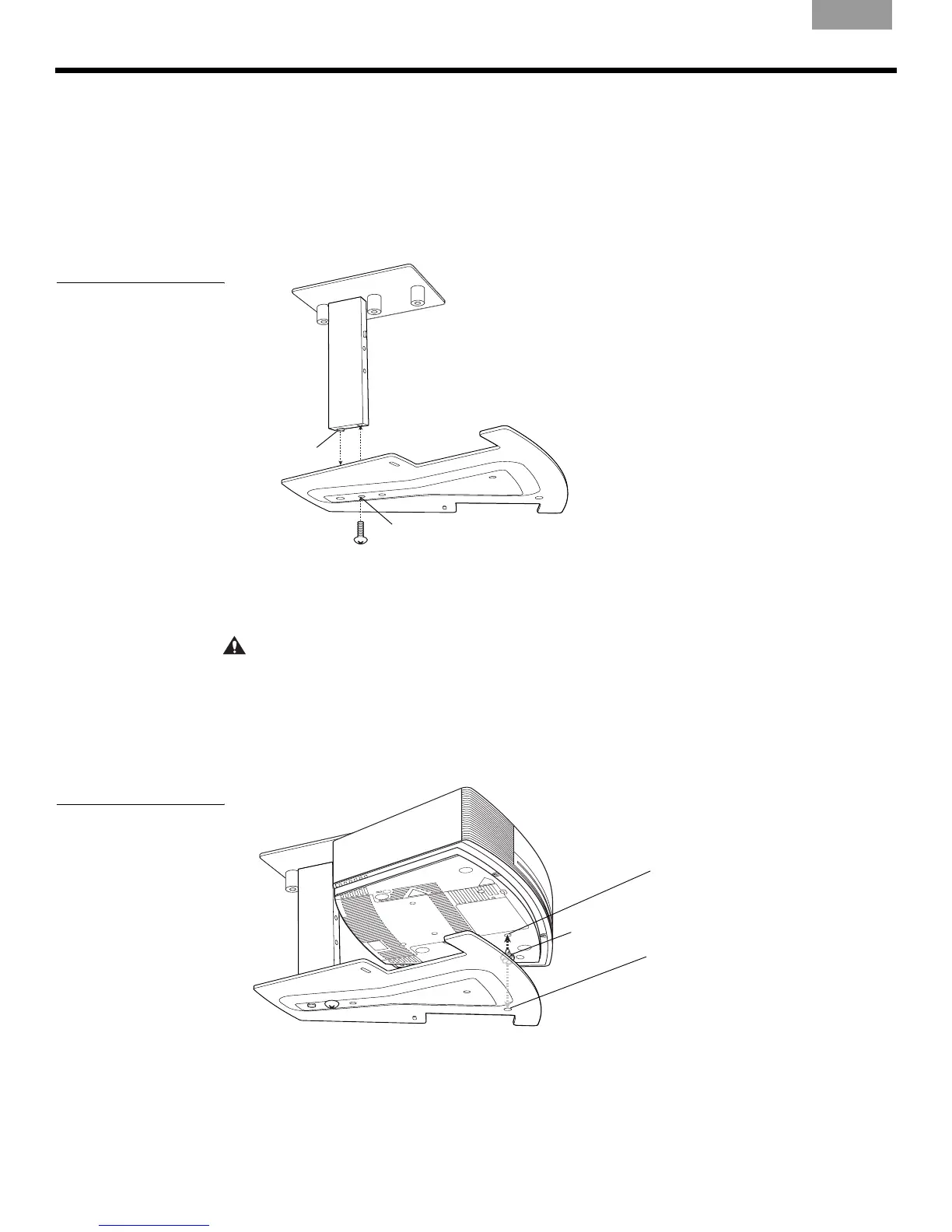

Figure 6
Under-cabinet bracket
assembly
Middle hole
Assembly screw
Mounting assembly
Platform
A
lignment pin
Securing your Wave
®
product to the bracket
With the bracket securely mounted, be sure to add the bracing pin, as instructed below, for
increased stability when you place your Wave
®
system on the platform.
CAUTION: Be sure to insert the pin only in the bracket platform hole that is appropriate for the
Wave
®
music system and Wave
®
radio II.
1. Press the two halves of the pin together and fit them through the proper hole on the !
platform (Figure 7). The pin snaps into place.
2. Lower your Wave
®
system onto the platform, making sure it engages the pin and that the
back feet of the Wave
®
system rest securely inside the foot pads on the platform.
Figure 7
Securing your Wave
®
music system to the
bracket
Bracing pin
Platform hole to use with the !
Wave
®
music system !
or Wave
®
radio II
Hole on the bottom of the
Wave
®
music system !
or Wave
®
radio II
Wave
®
music system
