WALL INSTALLATION
ArabicKoreanNederlands S. ChinThaiItalianoEspañol FrançaisEnglish Deutsch

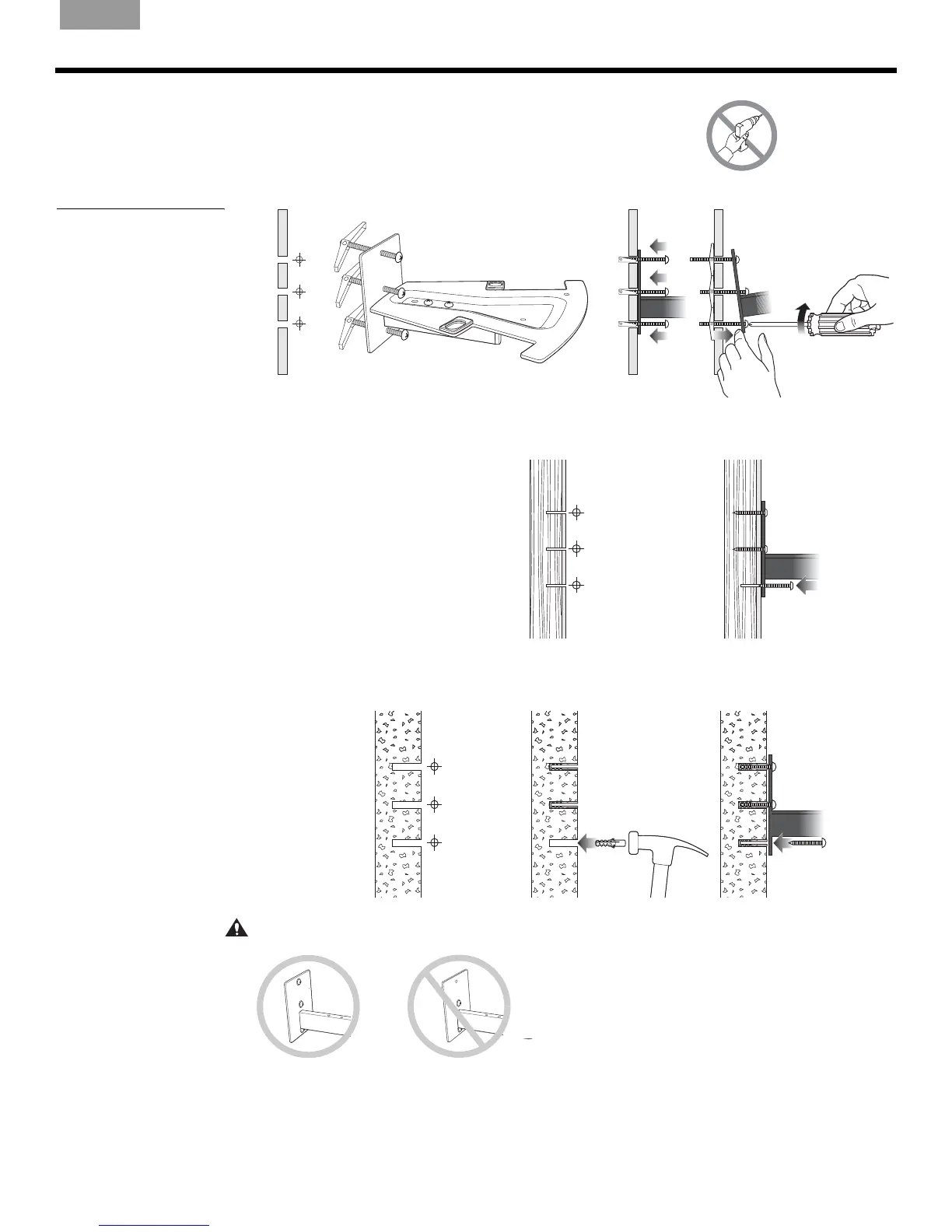

Drill the three holes and attach the bracket as shown (Figure 10).!
Do not use a screw gun to tighten the screws or bolts.
Figure 10
Wall attachment steps for
A, B, or C
A. Mount to wall board (sheetrock) using toggle bolts and wings.
Toggle bolts
and wings
½"
½"
½"
Bracket
13
mm
13
mm
13
mm
.
B. Mount to the wooden or metal stud behind a wall using sheet metals screws.
C. Mount to masonry using sheet metal screws and plastic anchors.
Sheet metal
screws
3
/
32
"
3
/
32
"
3
/
32
"
Screw
anchor
Sheet metal
screws
Bracket
Bracket
Tapped flush
to surface
2.5
mm
2.5
mm
2.5
mm
10
mm
10
mm
10
mm
3
/
8
"
3
/
8
"
3
/
8
"
CAUTION: Be sure to use all three screws in the mounting assembly holes.
