Installing Batteries
* Batteries are supplied with the unit. The life of these batteries
may be limited, however, since their primary purpose was to
enable testing.

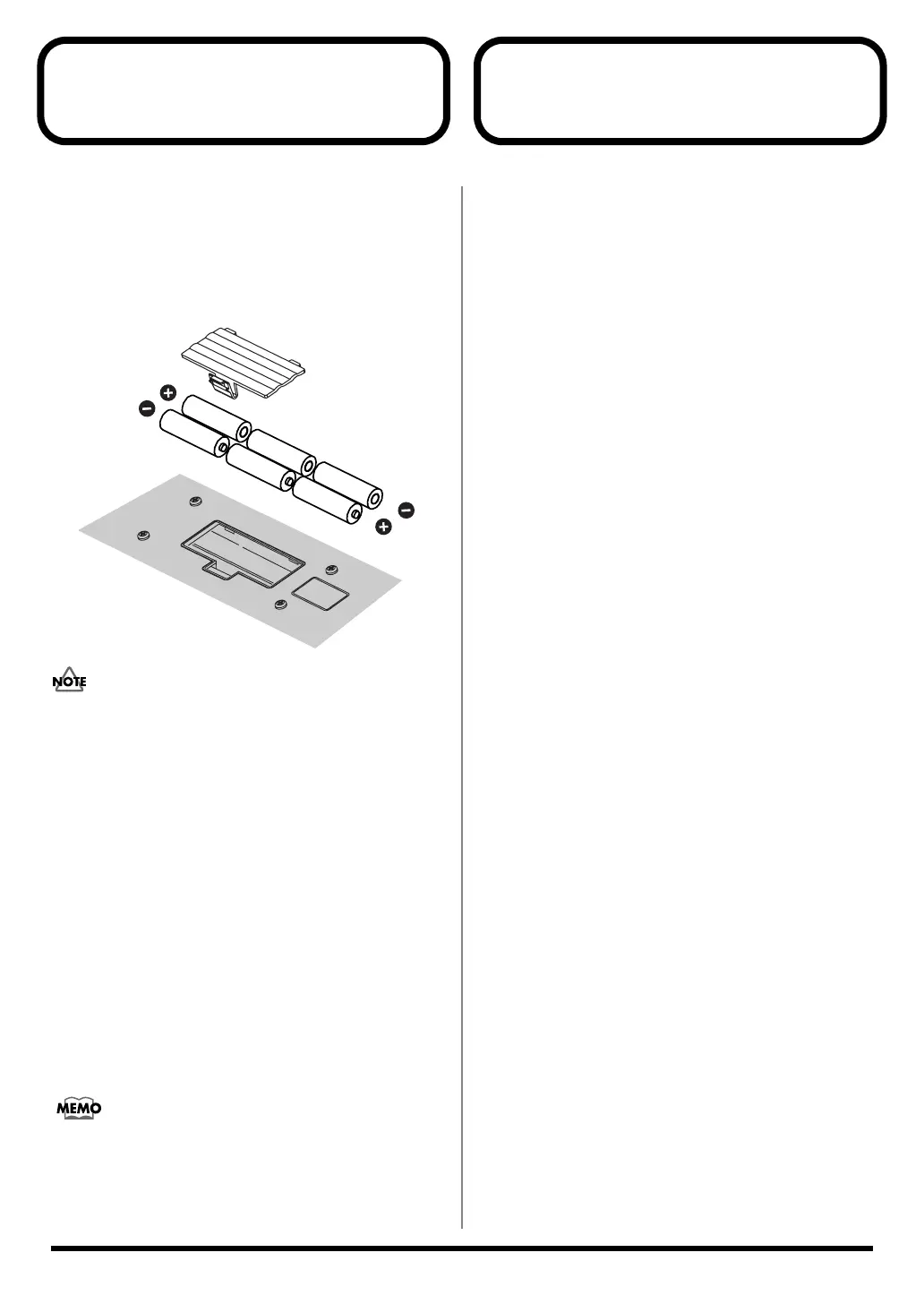

Insert the included batteries as shown in figure, being careful
to orient the batteries correctly.
fig.01-01
• When turning the unit upside-down, get a bunch of
newspapers or magazines, and place them under the
four corners or at both ends to prevent damage to the
buttons and controls. Also, you should try to orient the
unit so no buttons or controls get damaged.
• When turning the unit upside-down, handle with care to
avoid dropping it, or allowing it to fall or tip over.
• Make sure the “+” and “-” ends of the batteries are
oriented correctly.
• When the batteries run down, the POWER indicator gets
dim. If this happens, replace with new batteries.
• When replacing the batteries, use six AA type.
• Avoid using new batteries together with used ones. In
addition, avoid mixing different types of batteries.
Doing so can result in fluid leakage.
• Battery life can vary depending on battery type.
Continuous usage time under battery power is about 23
hours with alkaline batteries and about 9 hours with
carbon batteries. (This may vary according to usage
conditions.)
