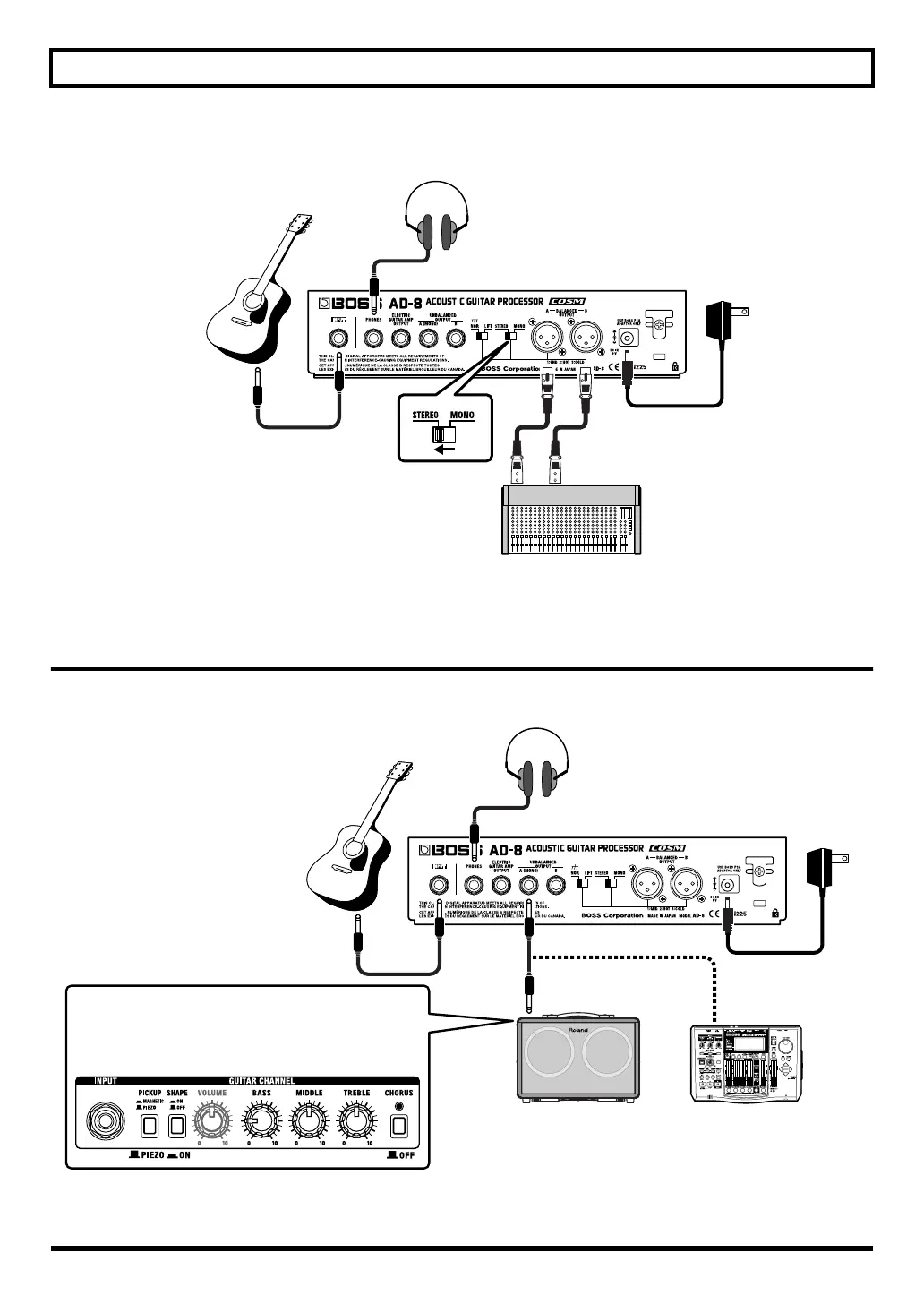

Connections
Stereo Connection
fig.02-07
Connecting to Acoustic Guitar Amps or Multitrack Recorders
Mono Connection
fig.02-03
Mixer
Stereo Headphones
AC Adaptor
(PSA series)
Acoustic Guitar
(Piezo Pickup)
Acoustic Guitar
(Piezo Pickup)
Acoustic Guitar Amp
(Roland AC-60 etc.)
MTR
Stereo Headphones
AC Adaptor
(PSA series)
GUITAR CHANNEL
■ Recommended settings for the AC-60
* The AC-60 is designed to produce optimal sound with an electric
acoustic guitar connected directly to the unit. You can produce the
best results when connecting to the AD-8 by setting the AC-60’s
GUITAR CHANNEL as shown in the figure.
