Part Names and Functions

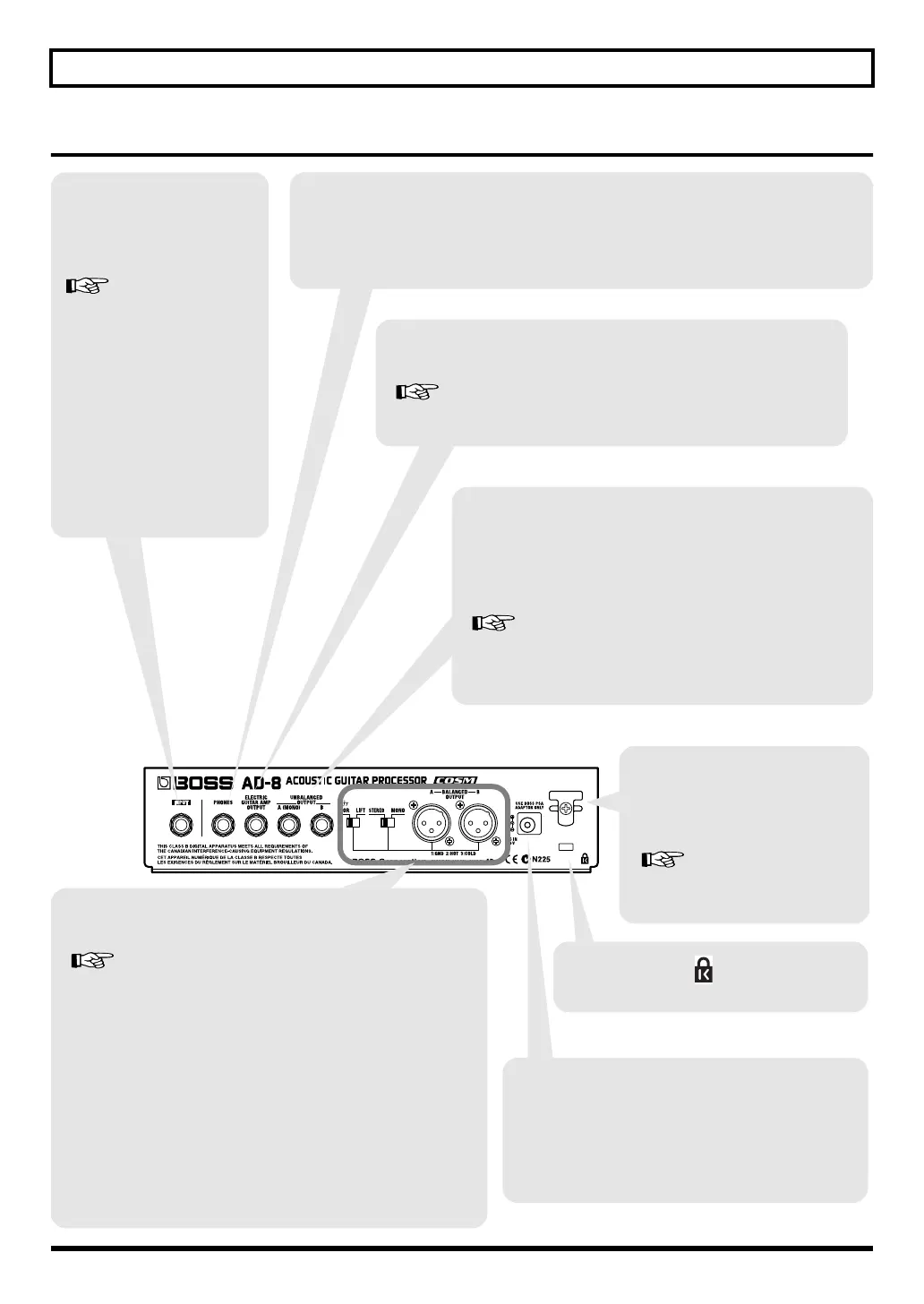

Rear Panel
PHONES jack
You can connect headphones here to listen to the sounds.
* Connect headphones only after turning on the power. Also be sure to disconnect the
headphones before turning off the power.
INPUT jack
Connect the output from your
acoustic guitar or effects
processor here.
“Connections” (p. 6)
* The AD-8 is switched on
when a plug is connected to
the INPUT jack. The power
is turned off when the plug
is disconnected from the
jack.
Be sure to disconnect any
plug from this jack
whenever the AD-8 is not
in use.
AC Adaptor jack
This jack is used for connecting an optional AC
adaptor (the PSA series).
Using the AC adaptor allows you to perform with
the AD-8 for extended periods without having to
worry about running out of battery power.
ELECTRIC GUITAR AMP OUTPUT jack
This jack is used for connecting to electric guitar amps.
“Connecting to Electric Guitar Amps” (p. 8)
UNBALANCED OUTPUT A (MONO)/B jacks
These jacks are used for connecting to acoustic guitar amps,
multitrack recorders, and other such equipment.
When using monaural signals, connect to the
UNBALANCED OUTPUT A (MONO) jack.
“Connecting to Acoustic Guitar Amps or Multitrack
Recorders” (p. 7)
BALANCED OUTPUT A/B jacks
Use these jacks to connect to a mixer.
“Connecting to Mixers” (p. 6)
STEREO/MONO switch
This switches between stereo output (STEREO) and monaural
output (MONO). The same sounds are output from A and B
when mono output is used.
NOR/LIFT switch
This disconnects the 1:GND pin from the input’s ground.
Switch this to “LIFT” if humming or other noise from ground
loops becomes a problem.
The AD-8 is normally used with this set to NOR.
Cord Hook
Wrap the cable around this hook
so that the AC adaptor cable is
not pulled out accidentally
“Connections” (p. 6).
Security slot ( )
