6

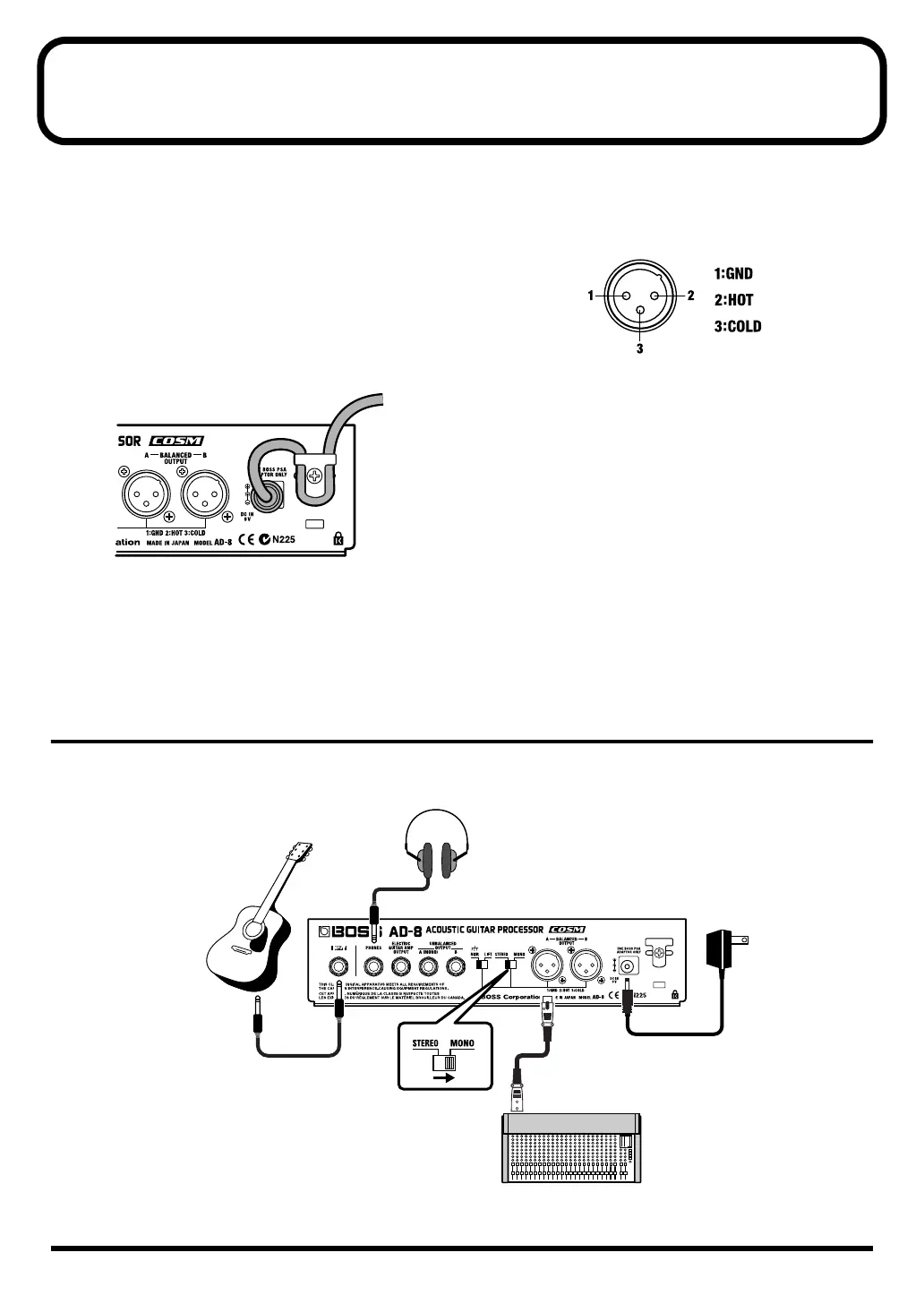

Connections
To prevent malfunction and/or damage to speakers or other
devices, always turn down the volume, and turn off the power
on all devices before making any connections.
* Rise the amp volume only after turning on the power to all
connected devices.
* To prevent the inadvertent disruption of power to your unit
(should the plug be pulled out accidentally), and to avoid
applying undue stress to the AC adaptor jack, anchor the power
cord using the cord hook, as shown in the illustration.
fig.02-02
* The pin assignment for the XLR type connectors is as shown
below. Before making any connections, make sure that this pin
assignment is compatible with that of all your other devices.
fig.02-01
* The power comes on when you insert the connector plug into
the INPUT jack.
* Once the connections have been completed, turn on power to
your various devices in the order specified. By turning on
devices in the wrong order, you risk causing malfunction and/
or damage to speakers and other devices.
When powering up:
Turn on the power to your guitar amp
last
.
When powering down:
Turn off the power to your guitar amp
first
.
* Always make sure to have the volume level turned down before
switching on power. Even with the volume all the way down,
you may still hear some sound when the power is switched on,
but this is normal, and does not indicate a malfunction.
Connecting to Mixers
Mono Connection
fig.02-06
Acoustic Guitar
(Piezo Pickup)
Mixer
Stereo Headphones
AC Adaptor
(PSA series)
* The same sounds are output
from A and B when mono
output is used.
AD-8_e.book 6 ページ ２００７年６月２０日 水曜日 午前９時３４分
