Boss BE9ACP - Wiring and Connections; Power, SWC, and Accessory Wiring

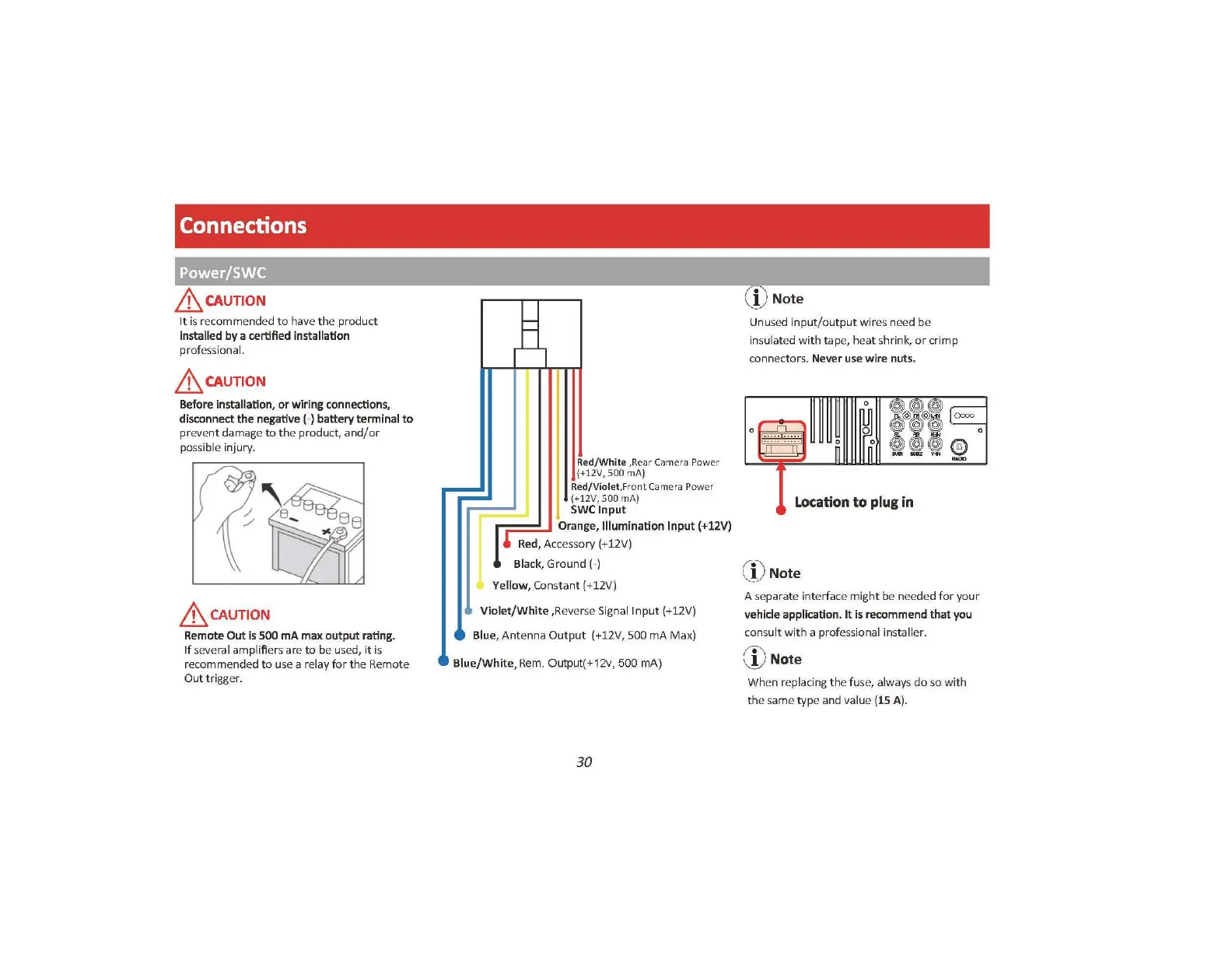

Connections
Power/SWC
&CAUTION
It is recommended to have the product
installed by a certified installation
professional.
&CAUTION
Before installation, or wiring connections,
disconnect the negative(-) battery terminal to
preve nt damage to th e product, and/or
possible injury.
&CAUTION
Remote Out is 500 mA max output rating .
If several amplifiers are to be u se d, it is
recommended to use a relay for the Re mote
Out trigger.
Red/White ,Rear C ame ra P ow er
{ +1 2V, 500 mA)
Red/Violet, Fron t C ame ra Power
(+12V, 500 mA)
SWC Input
r-:: ==- _. Orange, Illumination Input (+12V)
Yellow, Constant (+12V)
Violet/White ,Reverse Signal Input (+12V)
Blue, Ant enna Output (+12V, 500 mA Max)
Blue/White, Rem. Output(+12v, 500 mA)
30
,.,
\. V Note
Unused input/output wires need be
insulated with tape, he at shrink, or crimp
connectors. Never use wire nuts.
Location to plug in
f ~\
'< V Note
A separate interface might be needed for your
vehicle application. It is recommend that you
cons ult with a professional installer.
, /'i'\
\!; ' Note
When replacing th e fuse, a lw ays do so wi th
th e same type and value (15 A).
