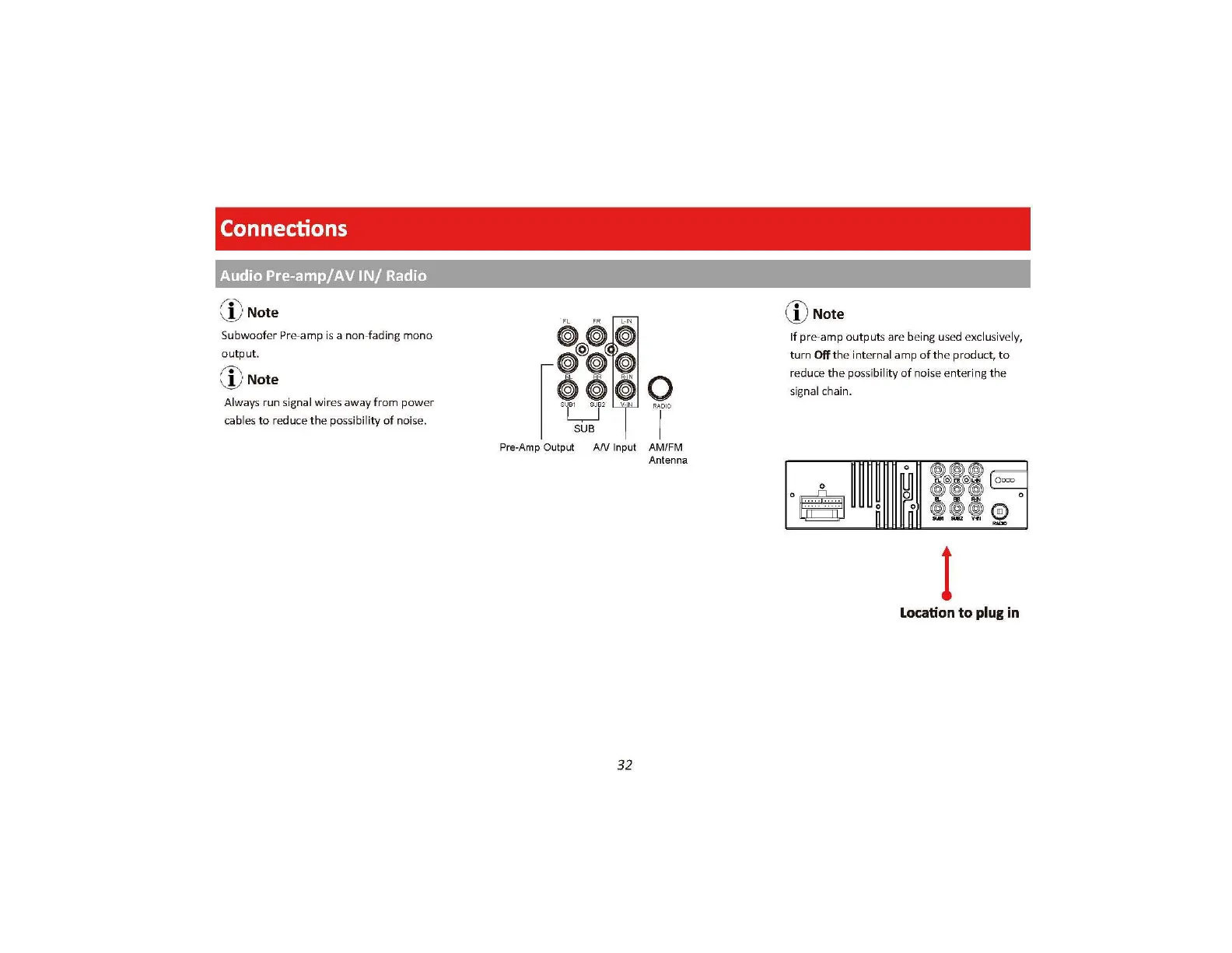

Connections
Audio Pre-amp/AV IN/ Radio
, '-\
\.. !) Note
Subwoofer Pre-amp is a non-fading mono
output.
, '7'\
\ .! ) Note
Alwa ys run signal wires aw ay from pow er
cables to re du ce th e po ss ibility of noise.
Pre-A mp Output AN Input AM/ FM
Antenna
32
,.--._
t, J) Note
If pr e-amp o utput s are being used exclusively,
turn Off th e int ernal a mp of th e pro du ct, t o
reduce th e possibility of noise entering the
signal chain.
0 ~
~
1
Location to plug in
