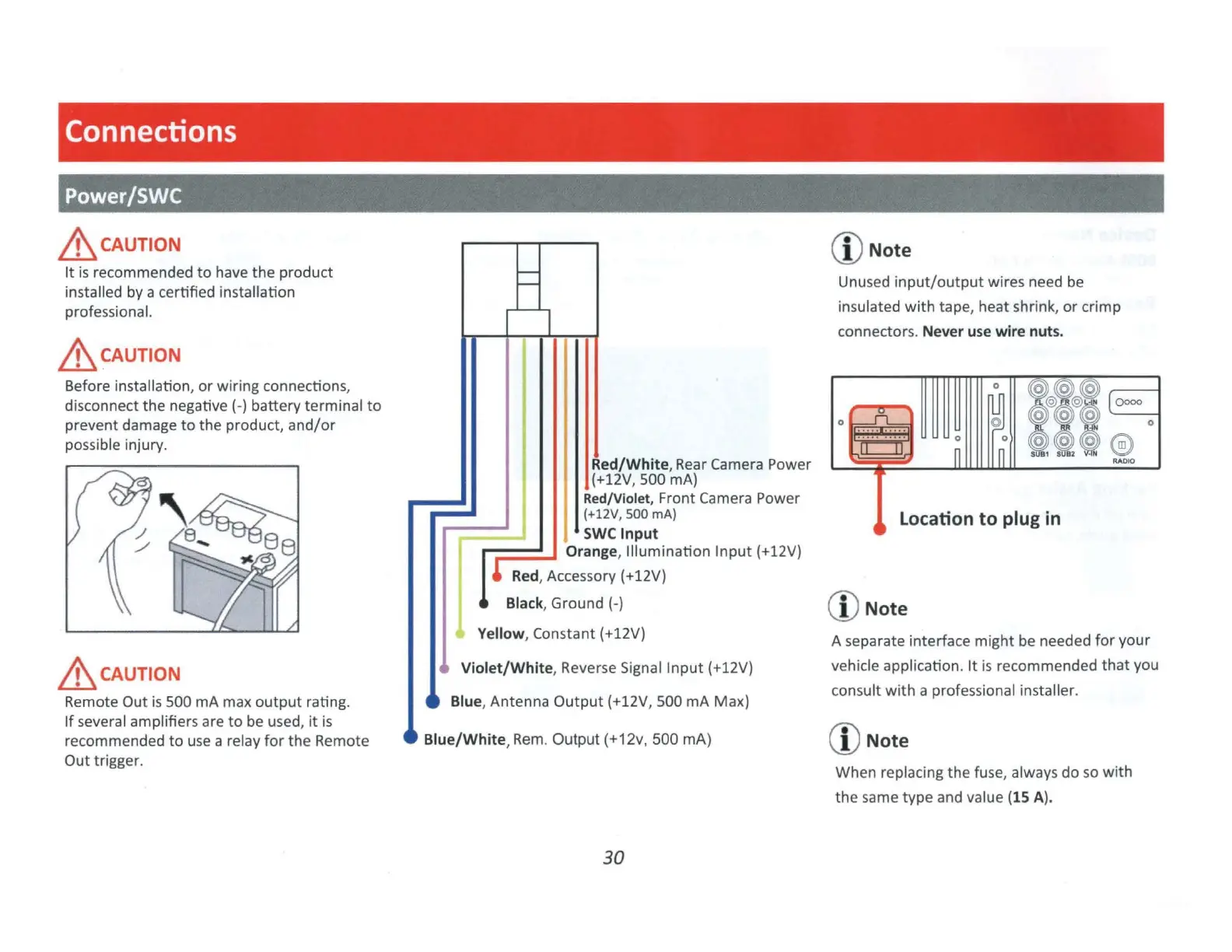

Connections
Power/SWC
,&cAUTION
It
is
recommended
to
have
the
product
installed by a certified installation
professional.
,&cAUTION
Before installation,
or
wiring connections,
disconnect the negative(-) battery terminal
to
prevent damage
to
the product,
and/or
possible injury.
,&cAUTION
Remote Out
is
500 mA max
output
rating.
If
several amplifiers are
to
be used,
it
is
recommended
to
use
a relay
for
the Remote
Out trigger.
Red/White, Rear Camera Power
(+12V, 500 mA)
l
Red/Violet, Front Camera Power
- (+12V,500mA)
·
SWC
Input
r:
=:=
.J
Orange, Illumination
Input
(+12V)
I
Red
, Accessory ( + 12V)
·
~
Black,
Ground
(-)
Yellow, Constant (+12V)
i Violet/White, Reverse Signal
Input
(+12V)
1
1
Blue, Antenna
Output
(+12V, 500 mA Max)
l •
Blue/White
,
Rem
. Output (+12v, 500 mA)
30
CD
Note
Unused
input/output
wires need
be
insulated
with
tape, heat shrink,
or
crimp
connectors. Never
use
wire nuts.
0
~
JI::Jt
Location
to
plug
in
CD
Note
0000
®
RADIO
0
A separate interface might be needed
for
your
vehicle application.
It
is
recommended
that
you
consult
with
a professional installer.
CD
Note
When replacing the fuse, always do so
with
the
same type and value (15
A).
To Next Page
