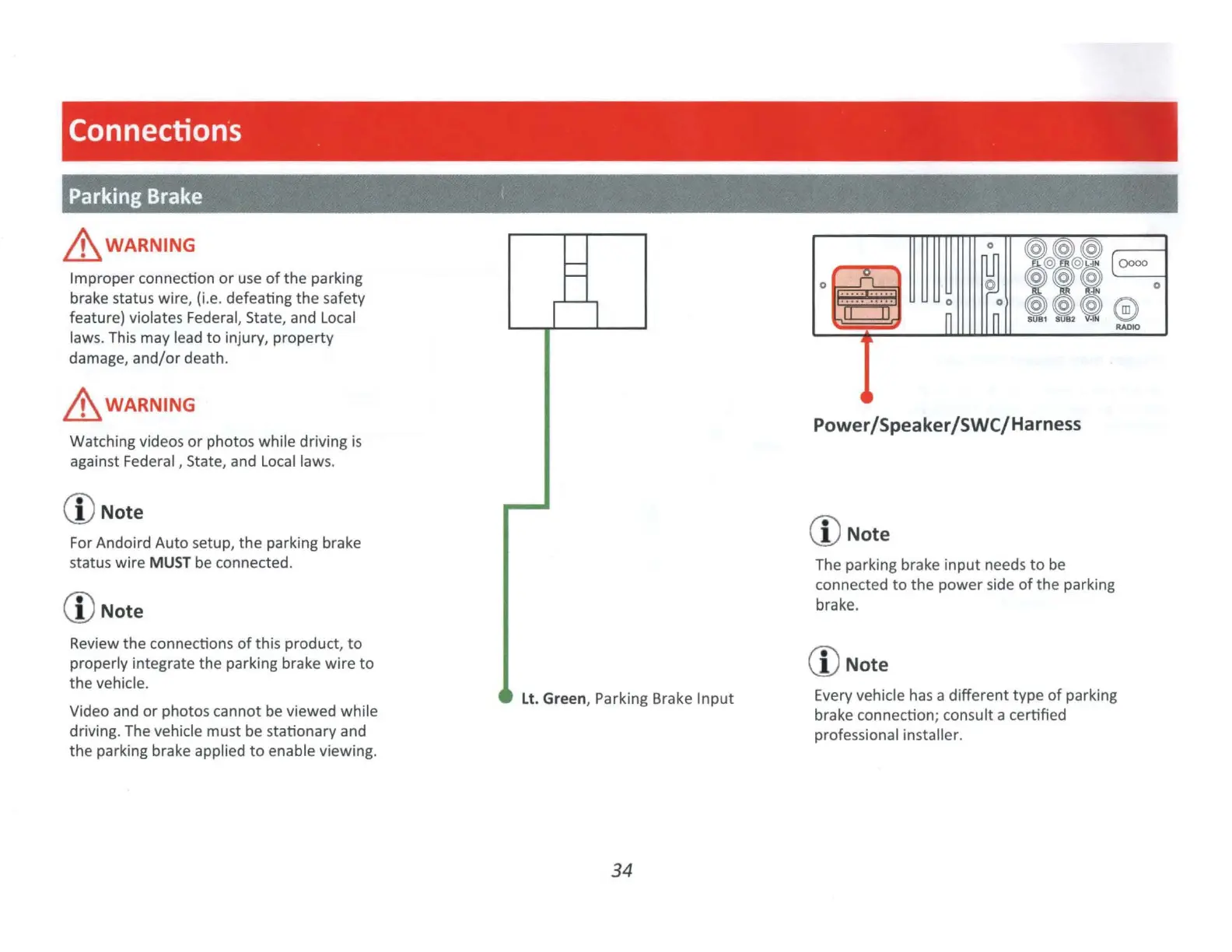

Connection·s
Parking
Brake
&WARNING
Improper connection
or
use
of
the
parking
brake status wire, (i.e. defeating
the
safety
feature) violates Federal, State, and
Local
laws. This may lead
to
injury, property
damage,
and/or
death.
&WARNING
Watching videos
or
photos while driving
is
against Federal , State, and
Local
laws.
CD
Note
For Andoird Auto setup,
the
parking brake
status wire
MUST
be
connected.
CD
Note
Review the connections
of
this product,
to
properly integrate the parking brake wire
to
the
vehicle.
Video and
or
photos cannot be viewed while
driving. The vehicle must
be
stationary and
the
parking brake applied
to
enable viewing.
1
t
Lt.
Green Parking Brake
Input
34
0
~
JCJt
0
Power /Speaker
/SWC/
Harness
CD
Note
The parking brake input needs
to
be
connected
to
the
power side
of
the parking
brake.
(D Note
Every vehicle has a different type
of
parking
brake connection; consult a certified
professional installer.
0
