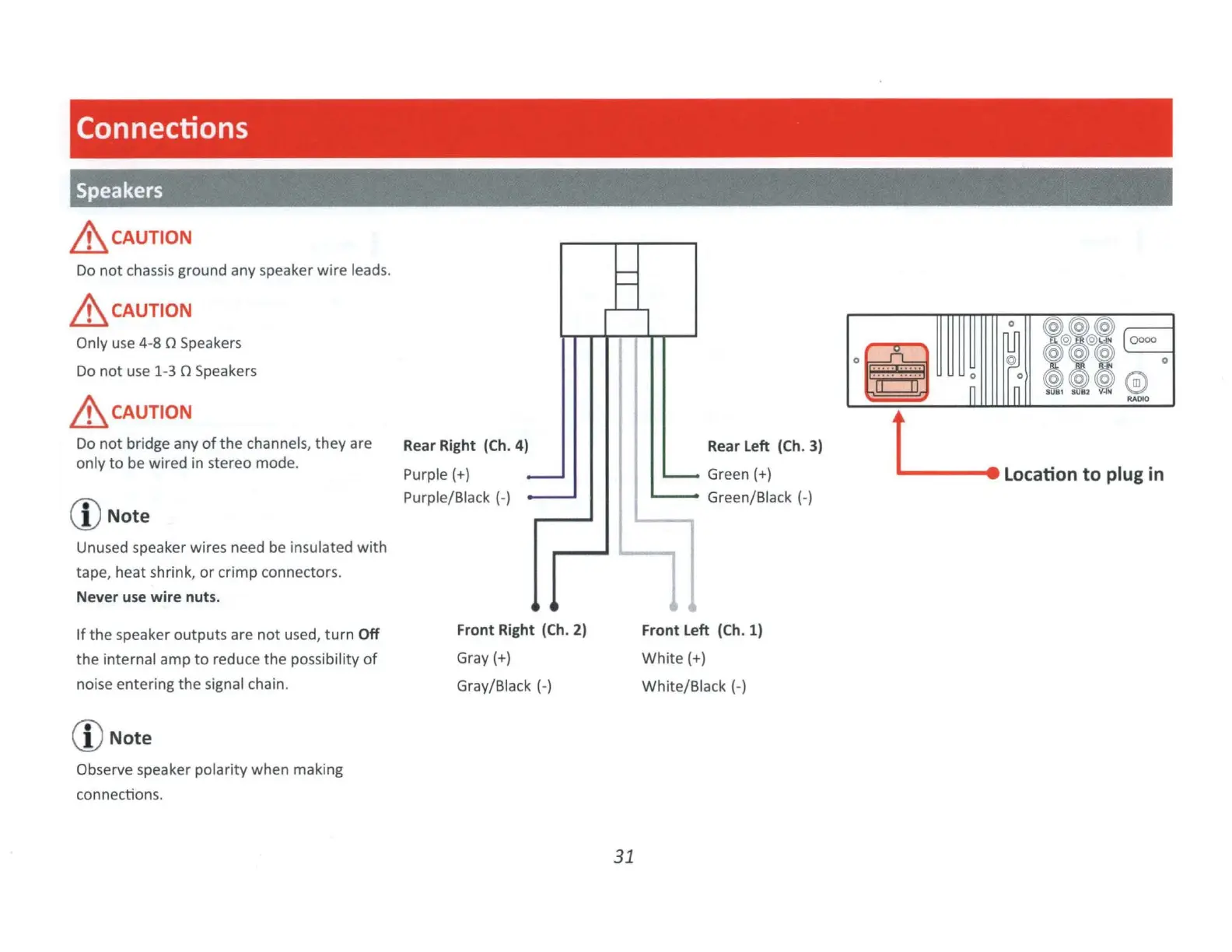

Connections
Speakers
,&cAUTION
Do not chassis ground any speaker wire leads.
_6cAUTION
Only use 4-8 0 Speakers
Do not use 1-3 0 Speakers
,&cAUTION
Do not bridge any of the channels, they are
only to be wired in stereo mode.
CD Note
Unused speaker wires need be insulated with
tape, heat shrink, or crimp connectors.
Never use wire nuts.
If the speaker outputs are not used, turn Off
the internal amp to reduce the possibility of
noise entering the signal chain.
CD Note
Observe speaker polarity when making
connections.
Rear Right (Ch. 4)
Purple(+) -
Purple/Black (-)
I I
Front Right (Ch. 2)
Gray(+)
Gray/Black(-)
-
-
31
Rear Left (Ch. 3)
- Green(+)
-- Green/Black (-)
Front Left (Ch. 1)
White(+)
White/Black (-)
0 ~
lg
L Location to plug in
