Physician Manual
91098825-02 46 of 337
The Remote Control
CAUTION:
• Keep the Remote Control dry. It should not be exposed to moisture.
• Keep the Remote Control away from pets, pests, and children to avoid damage
to the device.
Basic Operation
The Remote Control communicates with the Stimulator through a radio frequency
(RF) telemetry link from a distance of 18 inches (45 cm). When it is not being used,
the Remote Control is in sleep mode from which it can be reactivated by any button
press. During normal patient use, the Remote Control will transition to sleep mode
automatically after 60 seconds of non-use.

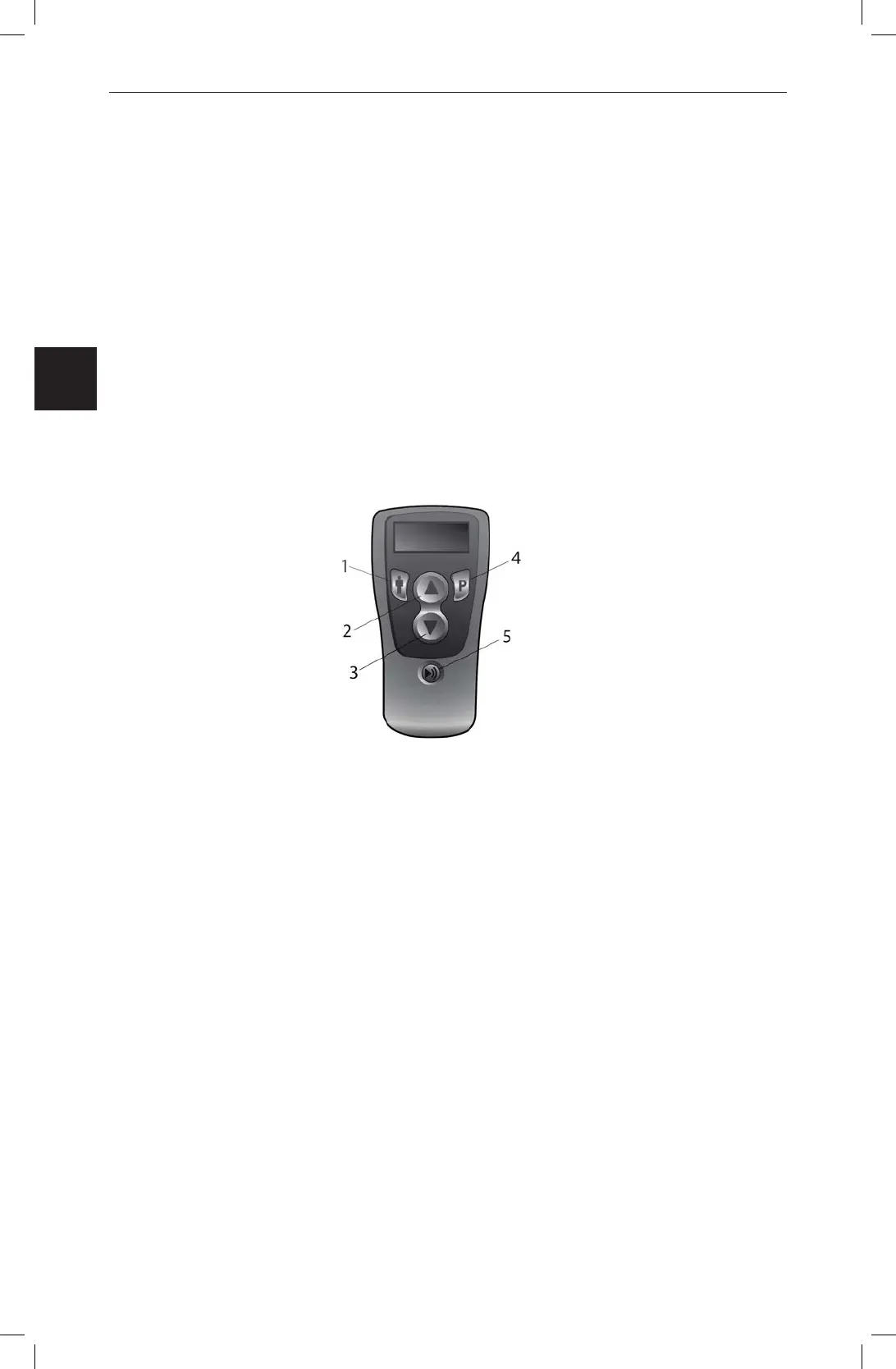

1. Area Button
2. Up/Activate
3. Down/Save
4. Program Button
5. Stimulation On/Off
Some Remote Control functions (i.e., the Restore option and Clinician Mode) are
accessed by pressing and holding a button (for approximately three seconds). These
are identied in the appropriate sections following.
