20
Input wiring

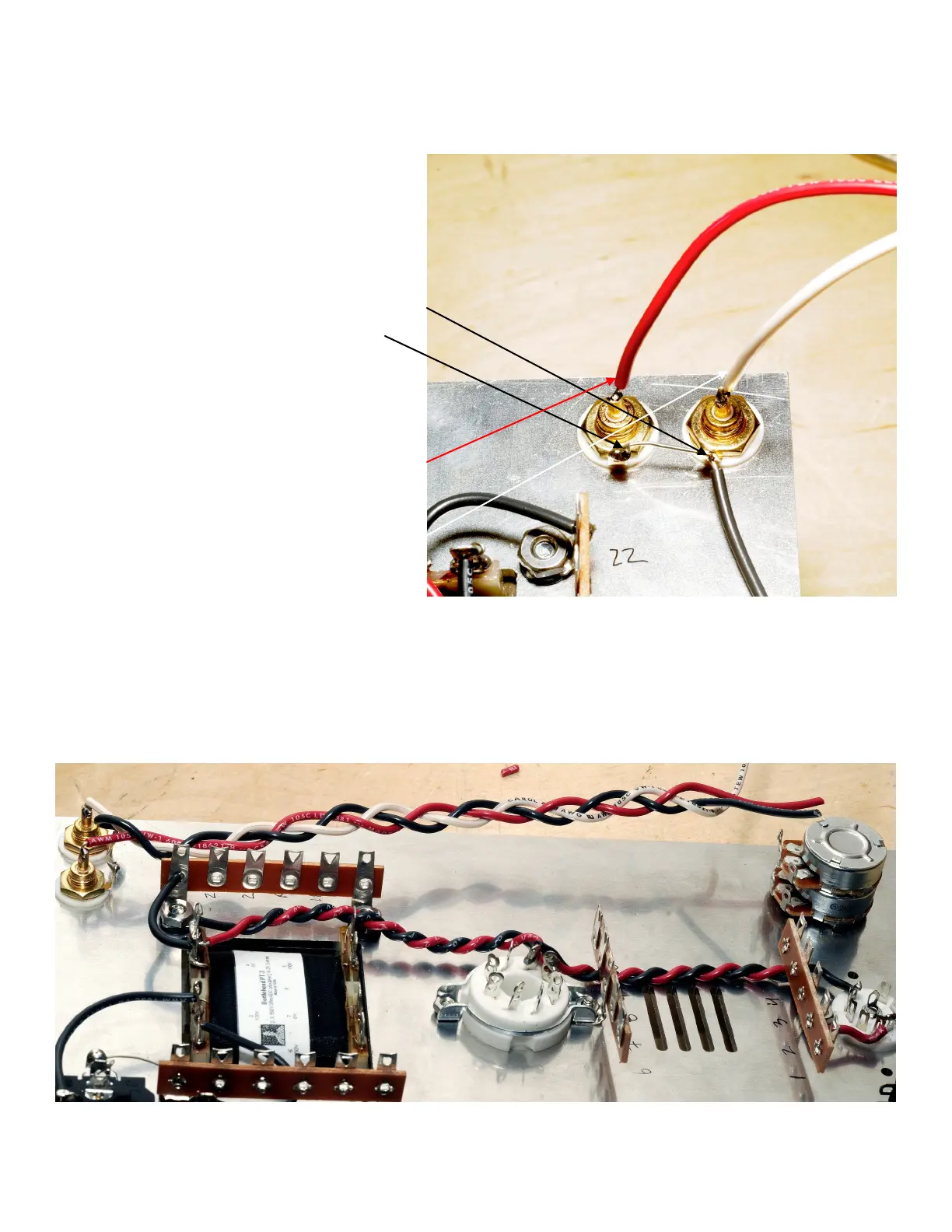

The next step is a bit tedious, but a methodical approach will yield a nice looking, functional job. The
braiding will help to reject noise pickup.
()Cuta10”(250mm)pieceeachofred,
black and white wire.
( ) Strip one end of the black wire back
1”(25mm)andinsertitthroughtheleft
RCA jack ground tab and then attach it to
the right RCA ground tab. Solder the wire to
each ground tab.
( ) Strip one end of the red wire back
1/4”(6mm)andsolderitintothecenterpin
solder cup of the right (red) RCA jack.
( ) Strip one end of the white wire back
1/4”(6mm)andsolderitintothecenterpin
solder cup of the left (black) RCA jack.
()Braidthethreewirestogetherasshown,leavingabout2”(50mm)unbraidedatthefreeend.
