Assembly, Part Three—components and Power Supply
Plate Load Resistors
These resistors create loads for
the plates of the driver triodes.

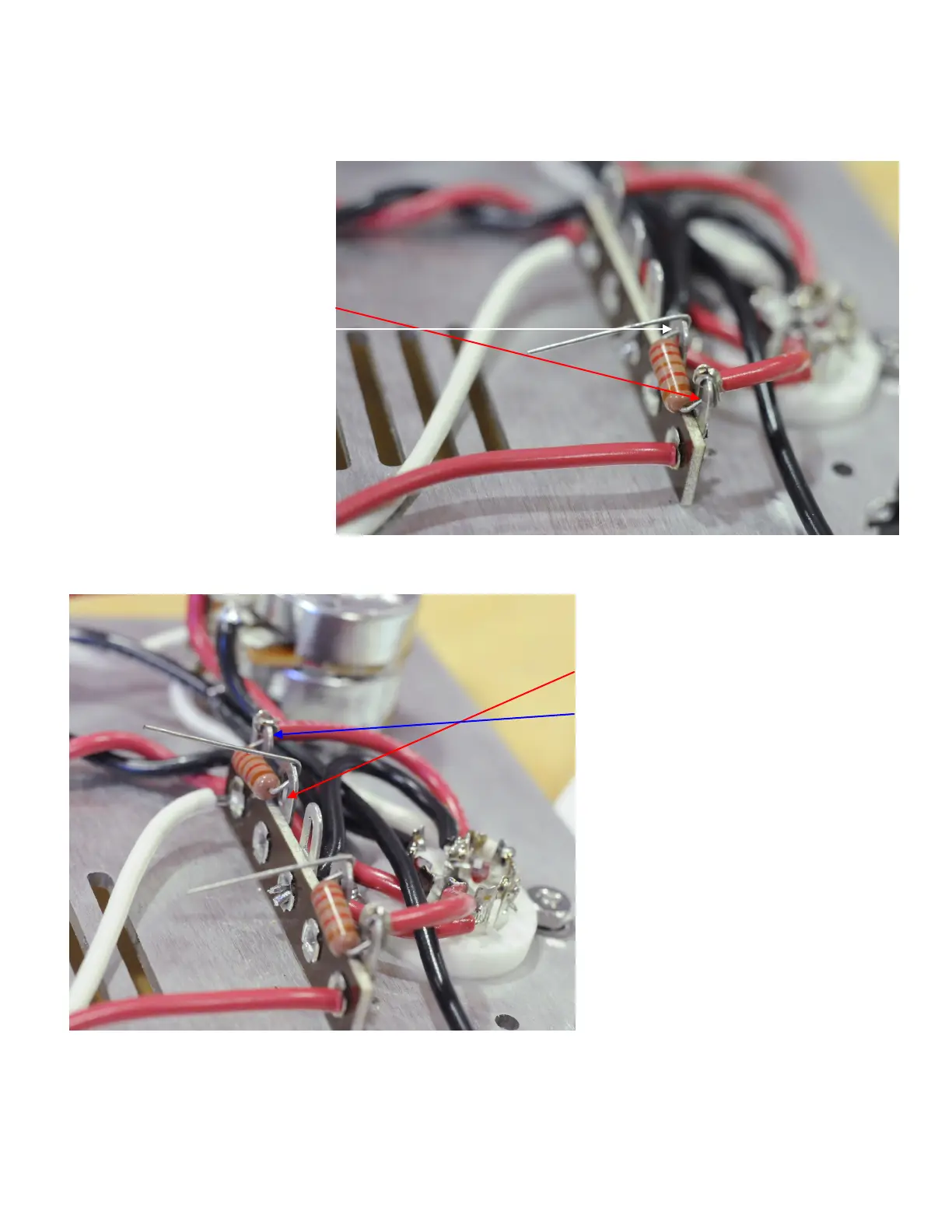

( ) Attach one end of an 22.1K
ohm 1W resistor to 1U.
Attach the other end to 2U.
Solder 1U.
( ) Attach one end of an 22.1K ohm
1W resistor to 4U.
Attach the other end to 5U.
Solder 5U.
