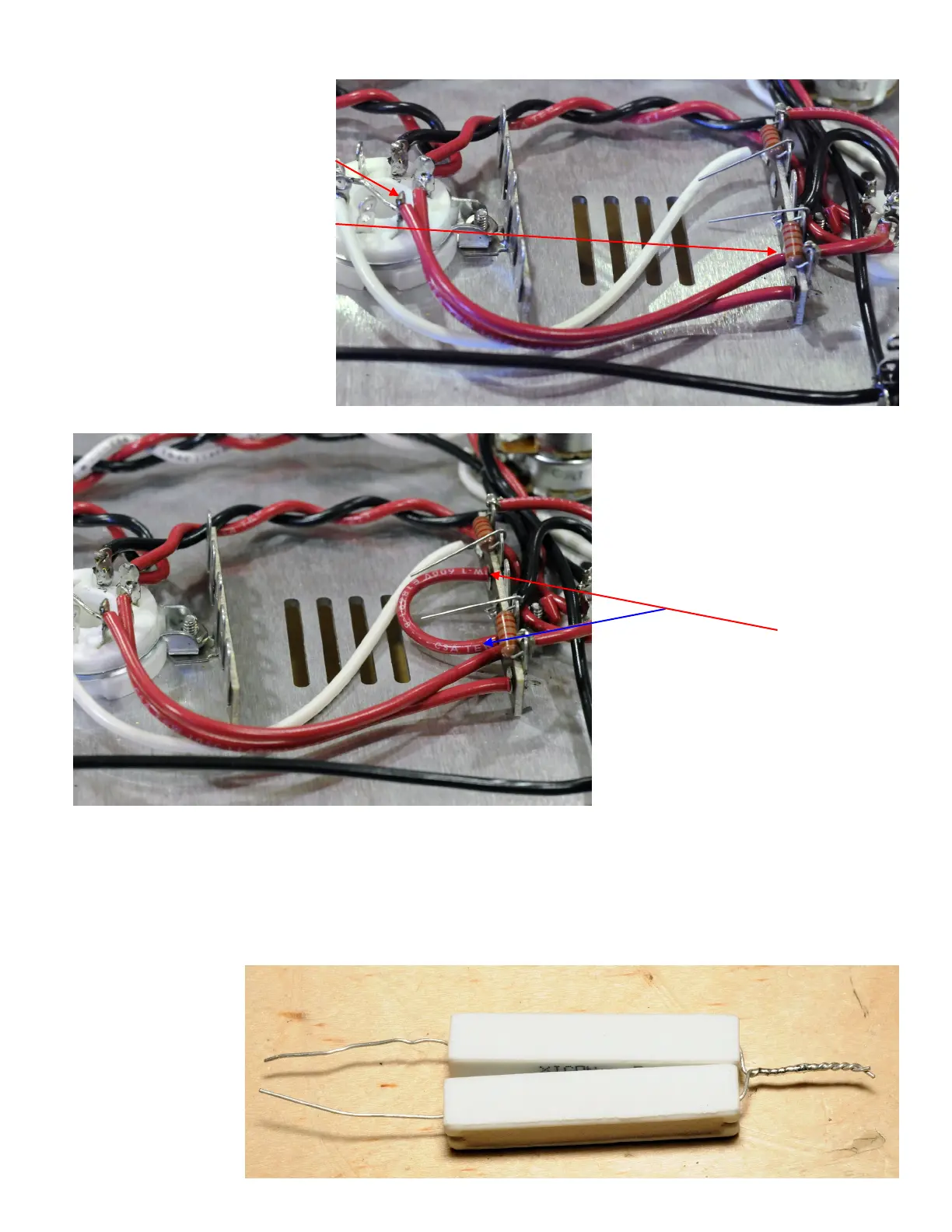

Output stage wiring
( ) Cut a piece of red wire 4"
(100mm) longandstripboth
ends1/4”(6mm).Attachone
end to terminal B2 and solder.
Attach the other end to terminal
2L.
( ) Cut a piece of red wire
2”(50mm)longandstripbothends
1/4”(6mm).Attachoneendto
terminal 2L and solder. Attach the
other end to terminal 4L and solder.
Also solder 2U and 4U and trim any
excess leads.
Output stage cathode resistors
( ) Twist one pair of the ends of the 3K ohm wirewound resistors together and solder them.
