Bottlehead Crack - Page 32

32

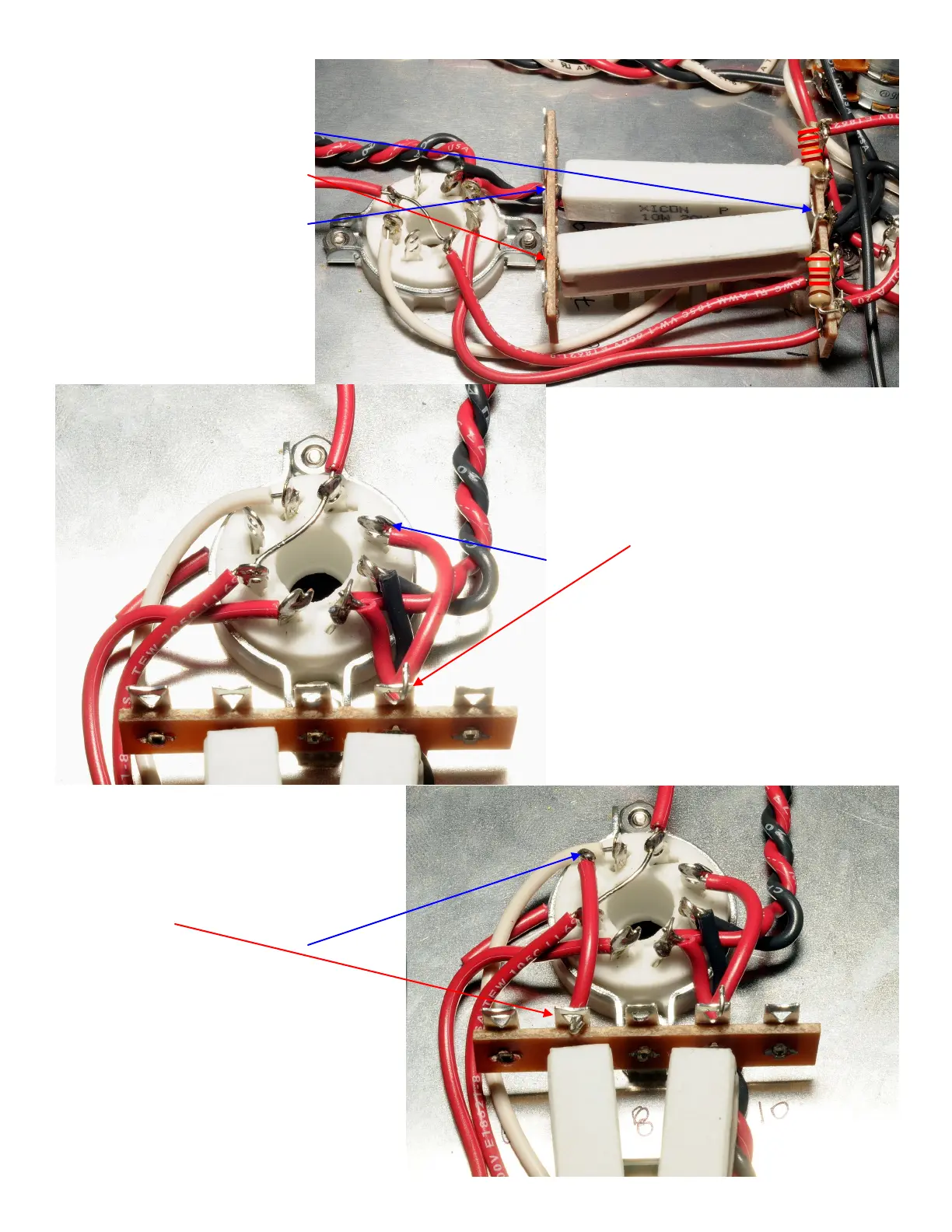

()Trimallbut1/4”(6mm)
from the twisted end of the
resistors and insert the
trimmed end into terminal 3U.
Insert the free lead of one
resistor through terminal7L.
Insert the other free resistor
lead through terminal 9L.
Solder 3U, 7L, 9L and trim the
excess leads.
( ) Cut a 1-1/2”(37mm)redwireandstrip
bothends1/4”.Attachoneendto
terminal 9U and attach the other end to
B6, Solder B6
( ) Cut a 1-1/2”(37mm)redwireandstrip
bothends1/4”.Attachoneendto
terminal 7U and attach the other end to
B3. Solder B3.
