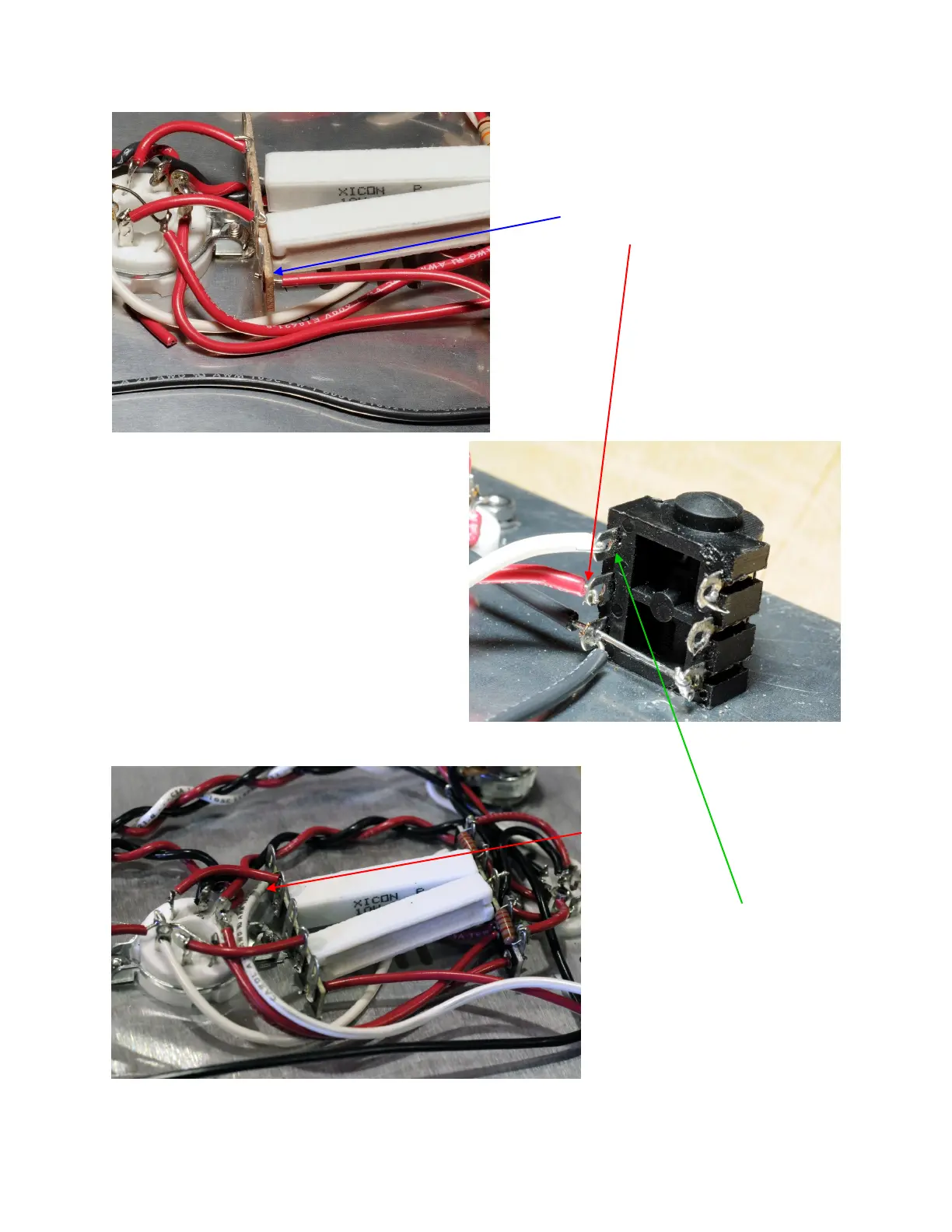

Output jack wiring
( ) Cut a 3-1/2”(87mm)redwireandstrip
bothends1/4”.Attachoneendto
terminal 6L and solder. Attach the other
end to inboard Ring terminal of the TRS
phone jack.
( ) Cut a 5-1/2”(137mm)white
wireandstripbothends1/4”.
Attach one end to terminal
10L and solder. Route the
wire around the terminal strip
as shown. Attach the other
end to the inboard Tip
terminal of the TRS phone
jack.
