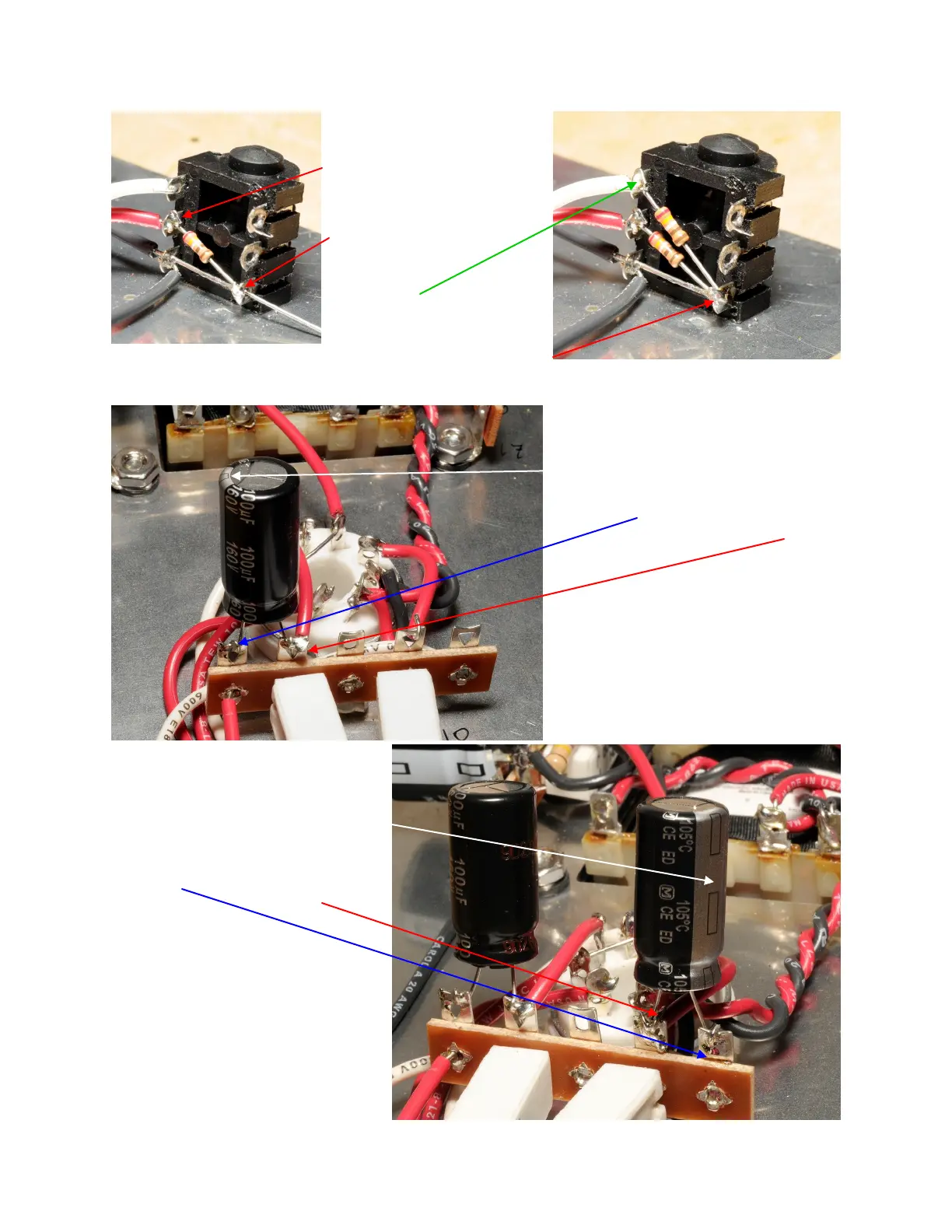

( ) Attach one end of a
2.49K ohm resistor to the
inboard Ring terminal of
the headphone jack.
Attach the other end to the
outboard Sleeve terminal.
Attach one end of a 2.49K
ohm resistor to the inboard
Tip terminal of the
headphone jack. Attach
the other end to the
outboard Sleeve terminal.
Solder all three terminals and trim excess leads.
Output capacitor installation
( ) Attach the striped side lead of a
100uF 160V electrolytic capacitor
to terminal 6U. Attach the non–
striped side lead to terminal 7U.
Double check the capacitor stripe
orientation and solder 6U and 7U.
Trim excess leads.
( ) Attach the striped side lead of
a second 100uF 160V
electrolytic capacitor to terminal
10U. Attach the non– striped
side lead to terminal 9U. Double
check the capacitor stripe
orientation and solder 10U and
9U. Trim excess leads
