BÖWE M18 - Rear of the Machine

9
M12/M15/M18
3. View of the Machine 3.

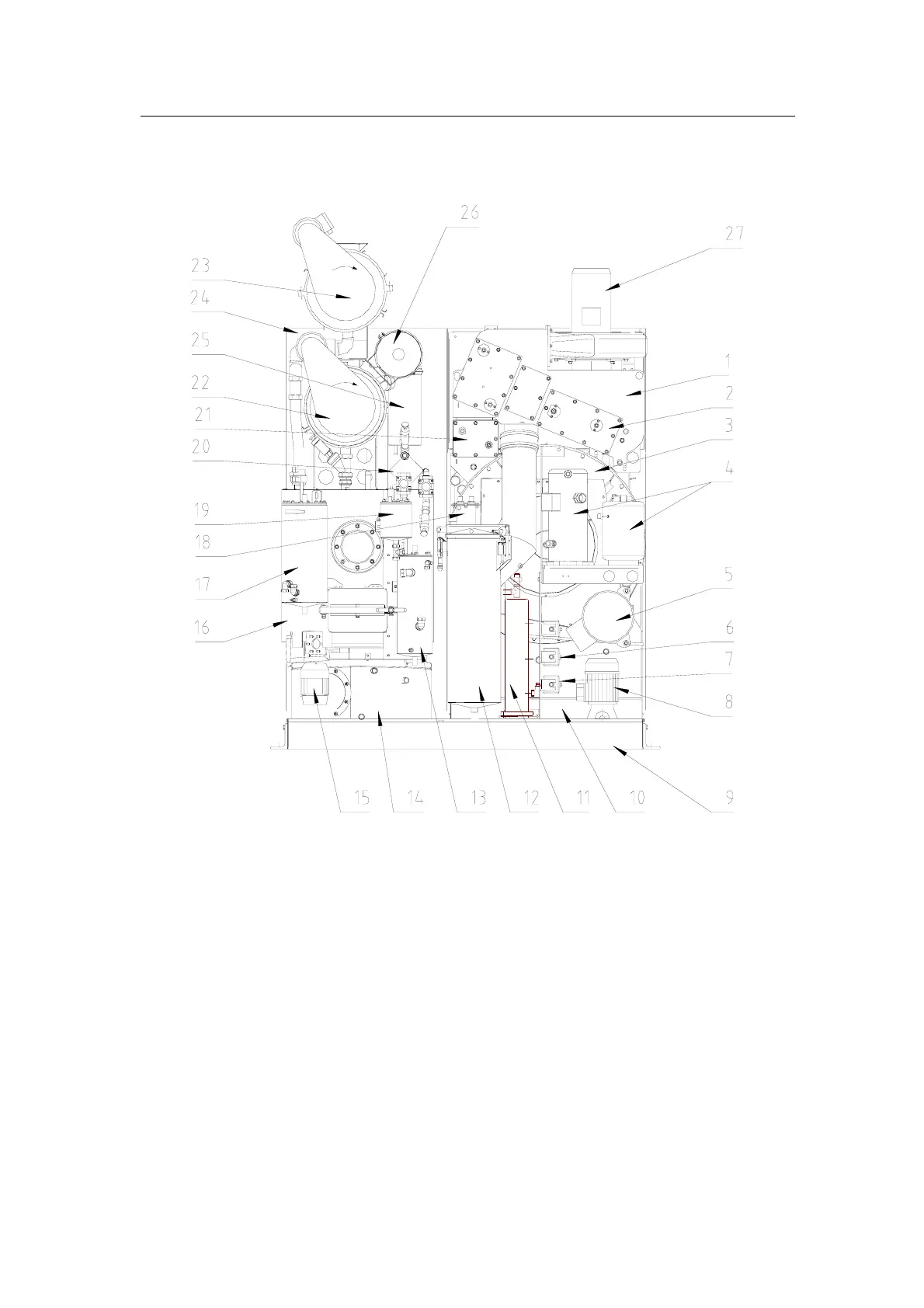

3.2. Rear of the Machine 3.2
707767-02-A
1 Airshaft 16 Still
2 Cooling register 17 Extraction tank
3 Cage housing with cage 18 Solvent cooling system
4 Refrigeration unit 19 Flash tank
5 Cage drive 20 Vacuum pump
6 Dosing unit 21 Heater battery
7 Sprayer * 22 Economy filter 1
8 Solvent pump 23 Economy filter 2 *
9 Safety trough 24 Filter drive
10 Tanks 1, 2 25 Condenser
11 Electric steam generator * 26 Adsorption cartridge filter 1*
12 Button trap with lint filter 27 Fan
13 Water separator
14 Tank 3
15 Pump for still rake out system*
* Option
