7. Functional Units 7.
7.3 Solvent Cooling System 7.3
The detergent solution cooler works over a heat exchanger that is cooled with a cooling agent. The
cooling of the solvent is set to 40 °C (104 °F).
The cooling is controlled over a thermal sensor at the input to the heat exchanger.
During each bath, the program remains stopped before pumping up (the cage does not move) until
the selected detergent solution temperature has been reached. Then the detergent solution
temperature is monitored while the program runs.

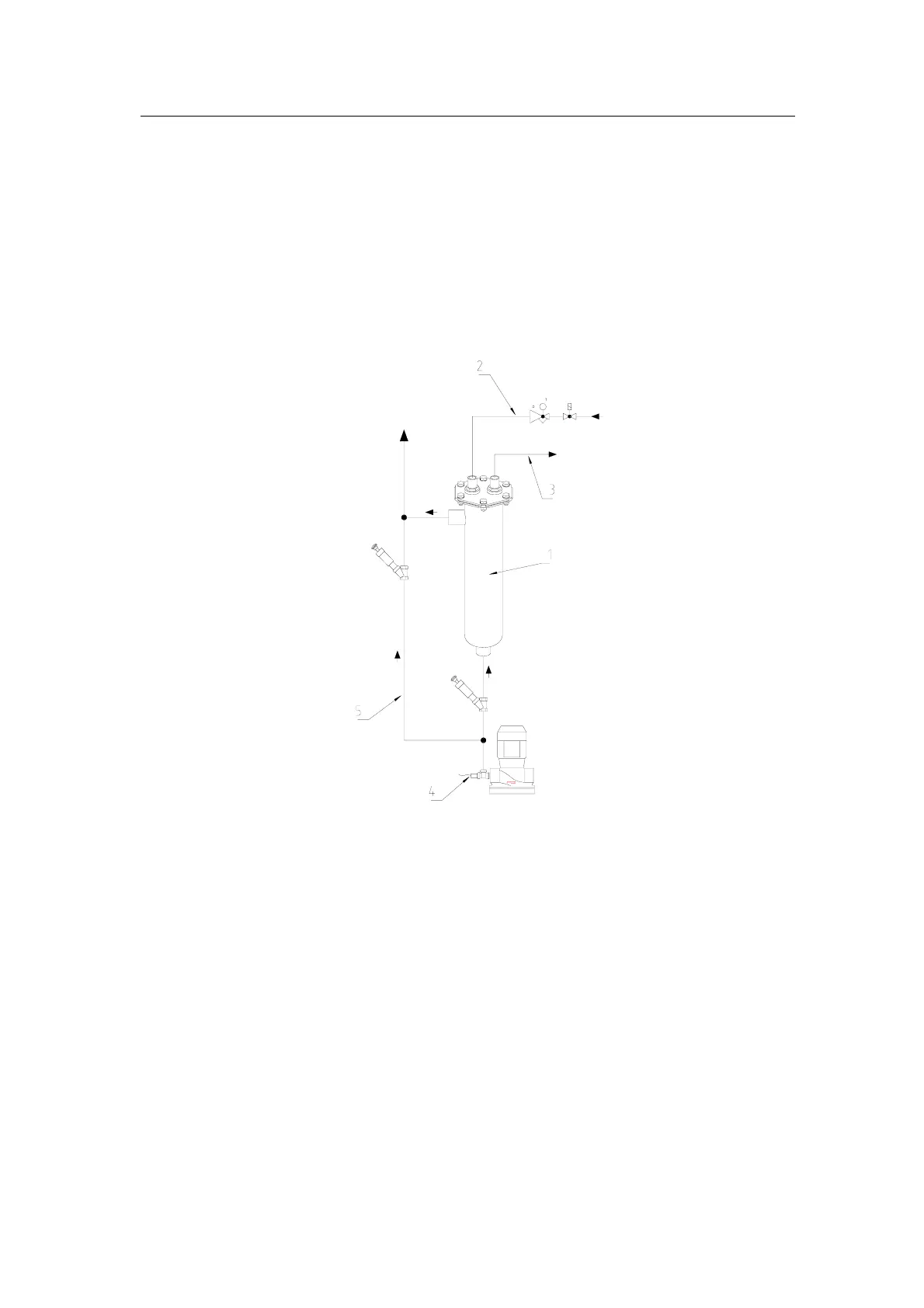

707760-22-0
1 Solvent cooling system
2 Cooling agent inlet
3 Cooling agent outlet
4 Thermal sensor
5 Bypass without cooling
