7. Functional Units 7.
7.16 Vacuum Pump 7.16
The vacuum pump needs no liquid to operate.
The vacuum pump evacuates the distillation system. The vacuum pump on-times are regulated via
the vacuum pressure controls and over the machine control system.
In order to guarantee faultless operation of the vacuum pump, it is recommended to have a major
overhaul performed after 10.000 hours of operation.

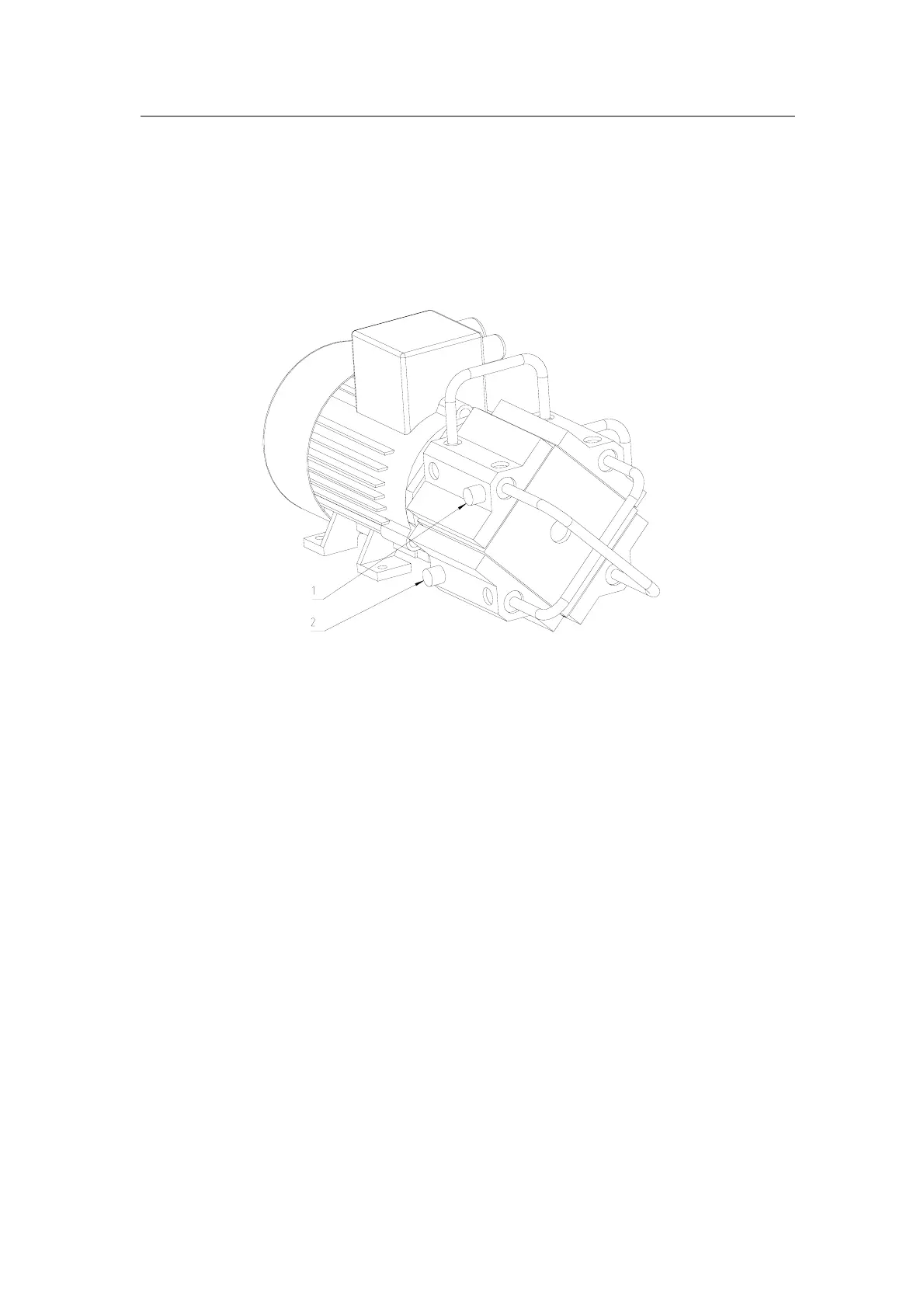

707766-11-0
1 Suction side
2 Pressure side
7.17 Steam Generator (Optional equipment) 7.17
On electric machines, the saturated steam needed for drying is generated in the small electric steam
generator. The system is automatically vented and filled with fresh water.
