BÖWE M18 - Operating and Monitoring Systems

60
M12/M15/M18
19
18
37
17
15
22
16

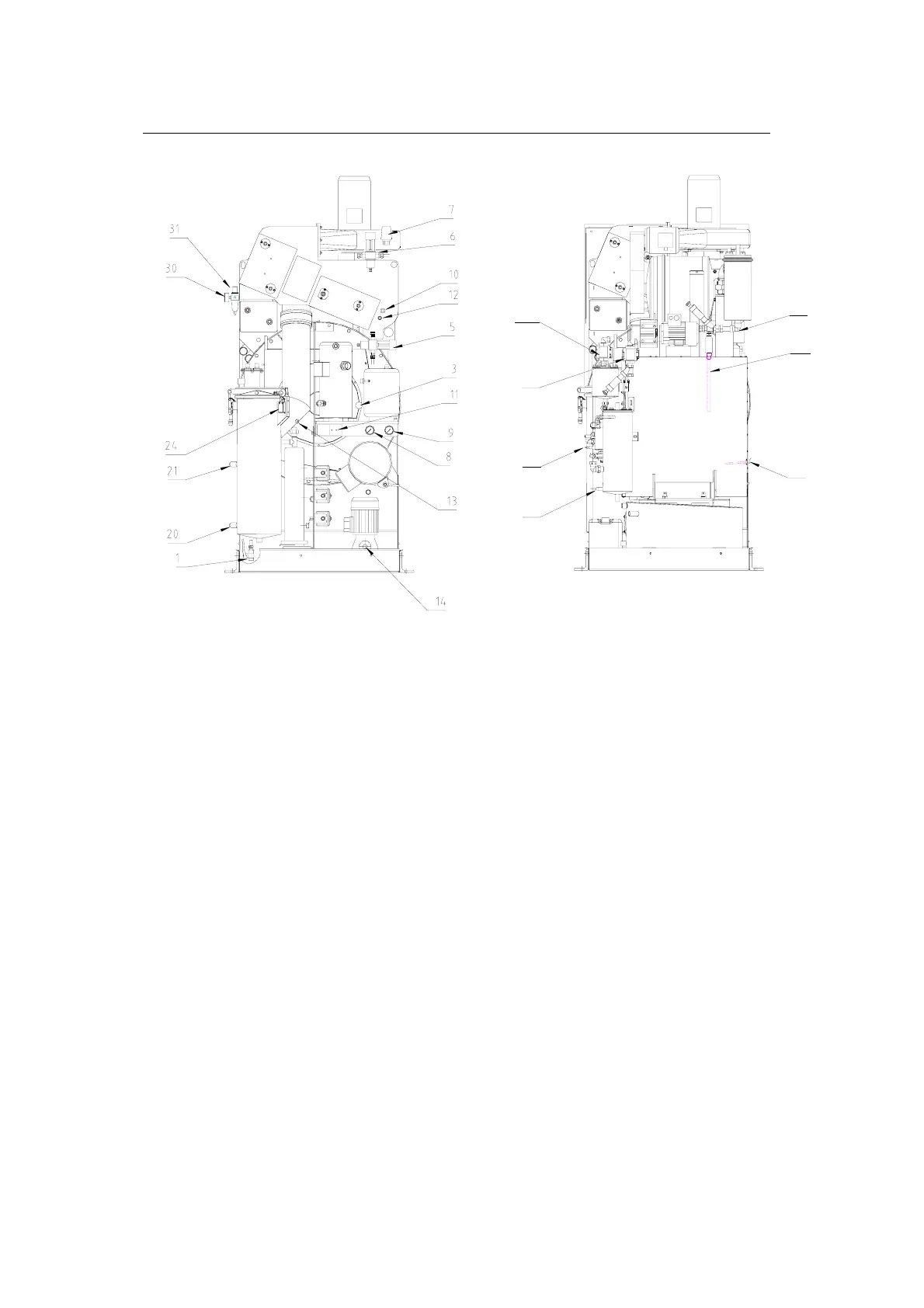

10. Operating and Monitoring Systems 10.
Slimline
707766-15-0 707766-14-0
1 Solvent filling valve 20 Sensor, low level
(2) Sight-glass, still 21 Sensor, high level
3 Sight-glass, refrigeration unit 22
Overfill sensor, distillation
(4)
Sight-glass, tank 3
(23)
Overfill sensor, level sensor, flash tank
5
Cooling water regulator, refrigeration unit
24
Limit switch, button trap
6
Cooling water regulator, distillation
(25)
Limit switch, still
7 Low cooling water level switch (26)
Lamps green - red
8
Low pressure gauge (refrigerating)
(27)
Manual valve, distillation steam
9
High pressure gauge (refrigerating)
(28)
Vacuum pressure gauge
10
Safety temperature limiter after cooler
(29)
Vacuum control switch, distillation
11 High and low pressure controls, refrigeration unit 30
Pressure gauge, compressed air
12 Thermal sensor, aftercooler 31
Low air pressure switch
13 Thermal sensor, cage housing outlet
(32) Heating element, overheating protection (elec)
14 Thermal sensor, solvent
(33) Manometer Dampfdruck (el)
15
Thermal sensor, distillation (34) Pressure gauge, steam pressure (elec)
16 Thermal sensor, distillation condenser
(35)
Safety valve, steam heater (elec)
17 Drying time controller (36)
Aeration valve, steam heater (elec)
18
Sensor, water-sensitive water separator
37
Sight-glass, distillation
19 Sensor, water-sensitive extraction tank
- Overfill sensor, waste disposal barrel
