BÖWE M18 - Maintenance Points

67
M12/M15/M18
11
14
1
7
10
9
19
3
4
1
1
8
6
5
1
11. Maintenance 11.

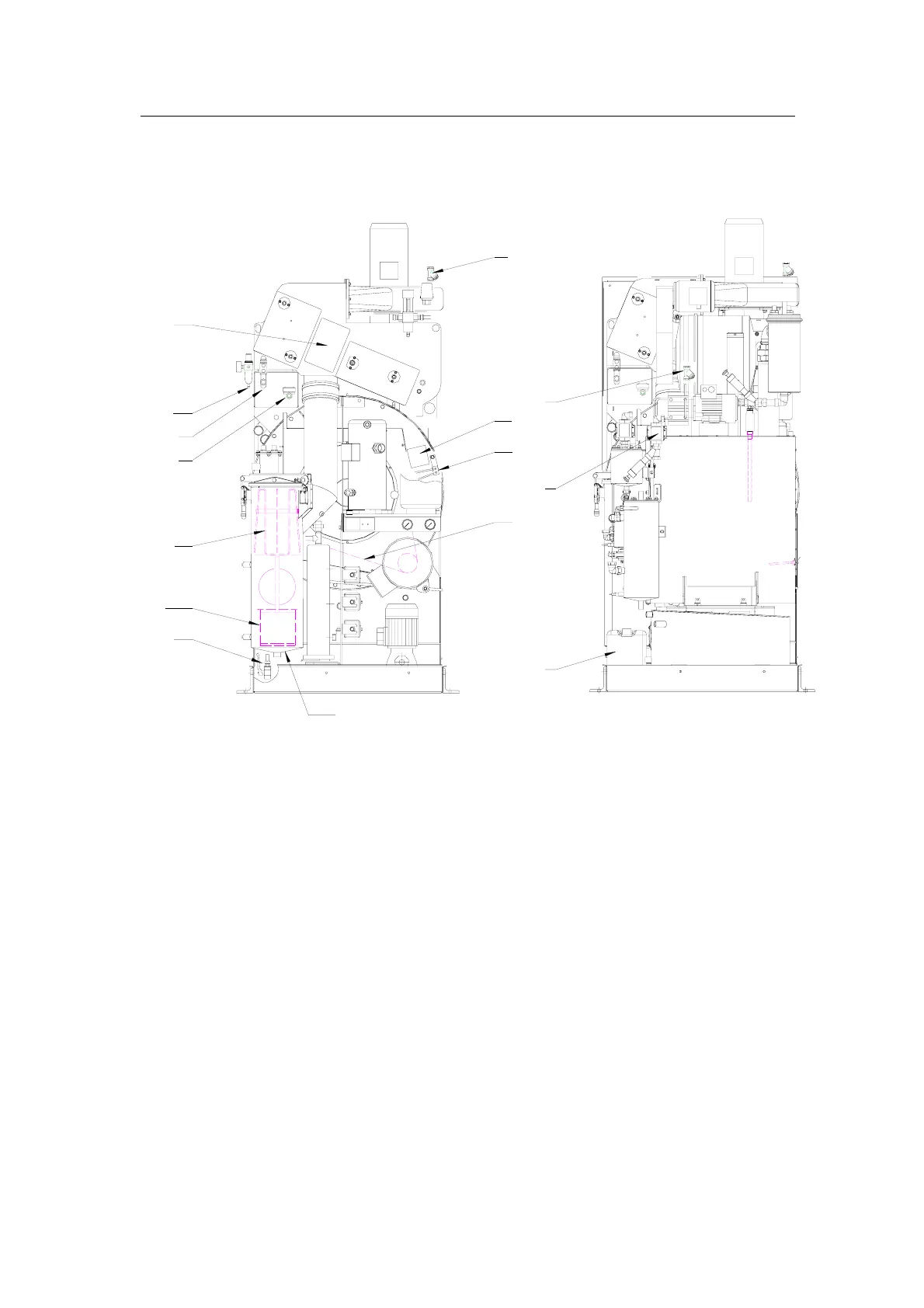

11.2 Maintenance Points 11.2
Slimline
707766-20-0 707766-19-0
1 Strainer (13) Sight-glass, still
(2) Pressure gauge, steam pressure (elec) 14 Drying time controller
3 Inspection cover, airshaft (15) Limit switch
4 Compressed air drain (16) Manual valve, adsorption filter outflow
5 Grease nipple, cage (17) Sight-glass, tank 3
6 Inspection cover, cage flange (18) Filler stub for water (elec)
7 Solvent filling valve 19 Strainer pump protection
8 V belt
9 Lint filter
10 Button trap strainer
11 Process water collecting tank
(12) Still rake-out door
