BÖWE M18 - Page 76

68
M12/M15/M18
4
13
18
15
1
1
1
17
12
2
16
1
1019 9
15
8
7
1
14
5
3
6
1

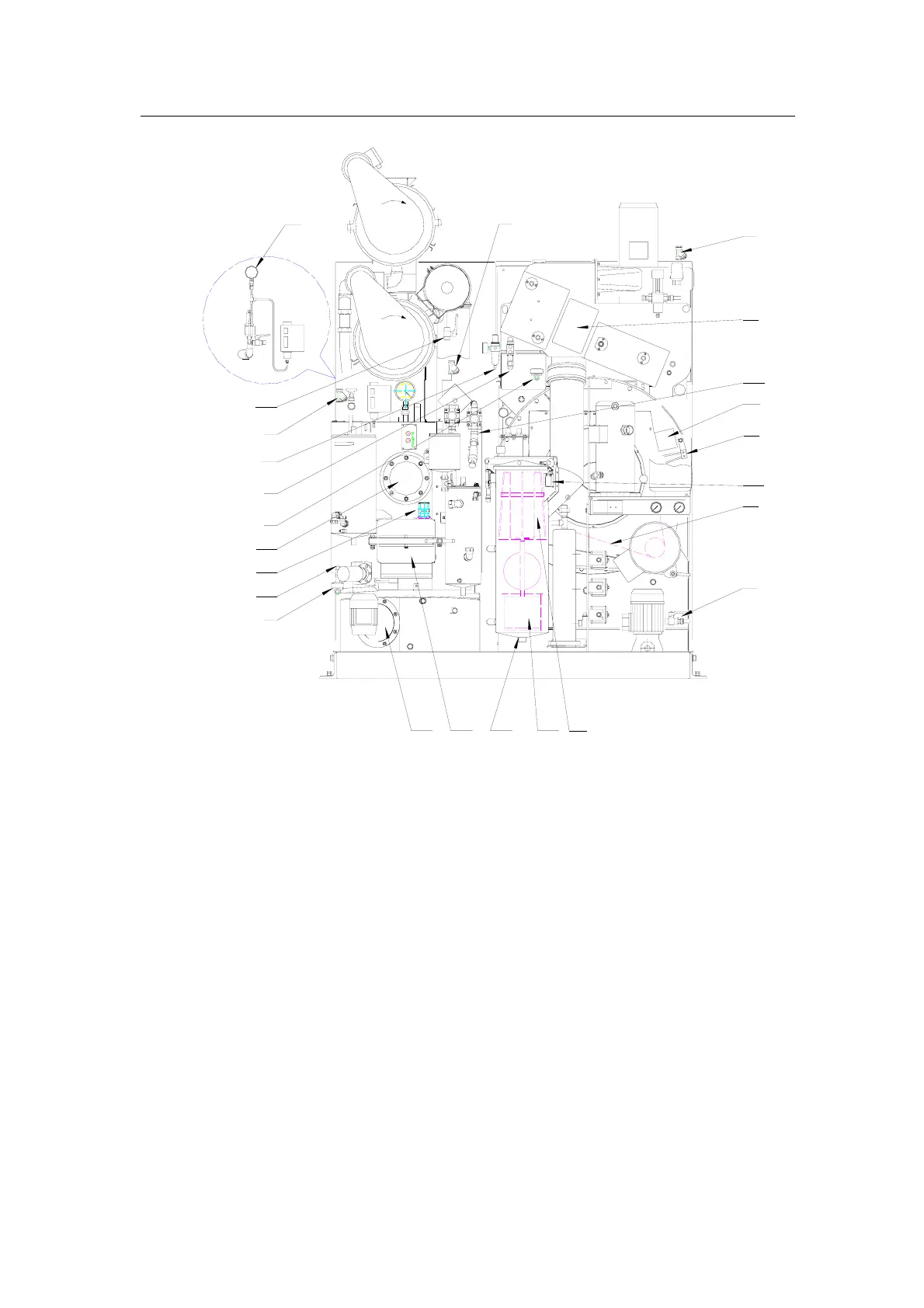

11. Maintenance 11.
Crossline
707766-21-0
1 Strainer 13 Sight-glass, still
2 Pressure gauge, steam pressure (elec) 14 Drying time controller
3 Inspection cover, airshaft 15 Limit switch
4 Compressed air drain 16 Manual valve, adsorption filter outflow
5 Grease nipple, cage 17 Sight-glass, tank 3
6 Inspection cover, cage flange 18 Filler stub for water (elec)
7 Solvent filling valve 19 Strainer pump protection
8 V belt
9 Lint filter
10 Button trap strainer
(11) Process water collecting tank
12 Still rake-out door
