7.15 Water Separator 7.15
The condensate recovered from the 2
nd
fraction of the distillation runs to the water separator.
In the water separator, water that may still be left and other low-boiling solvents are separated
from the cleaning solvent. The heavy water collects at the bottom, where there is a water-
sensitive sensor, which controls the draining of the process water. The solvent runs to the
clean tank.
707766-10-0

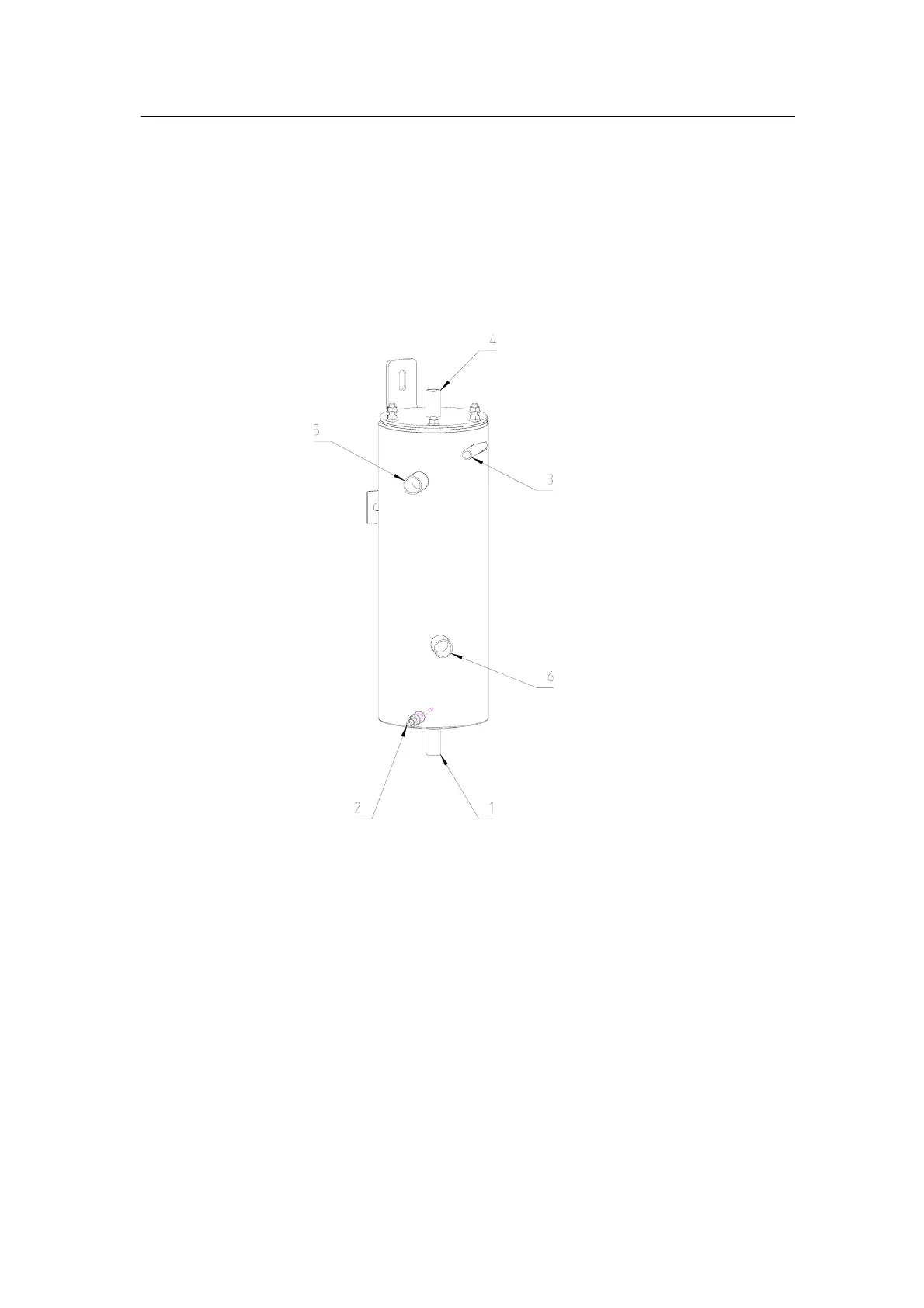

1 For draining water/emptying tank 4 Ventilation and aeration atmospheres
2 Water-sensitive level sensor 5 Solvent overflow to clean tank
3 Connection, rinsing with pump 6 Distillation inlet
