39
M12/M15/M18
1
3
7. Functional Units 7.
7.7 Cage 7.7
The cage has a dynamic channeling of holes for optimum air flow
during drying.
7.8 Cage Drive 7.8
The cage drive is an adjustable V-belt drive with 2 V-belts.

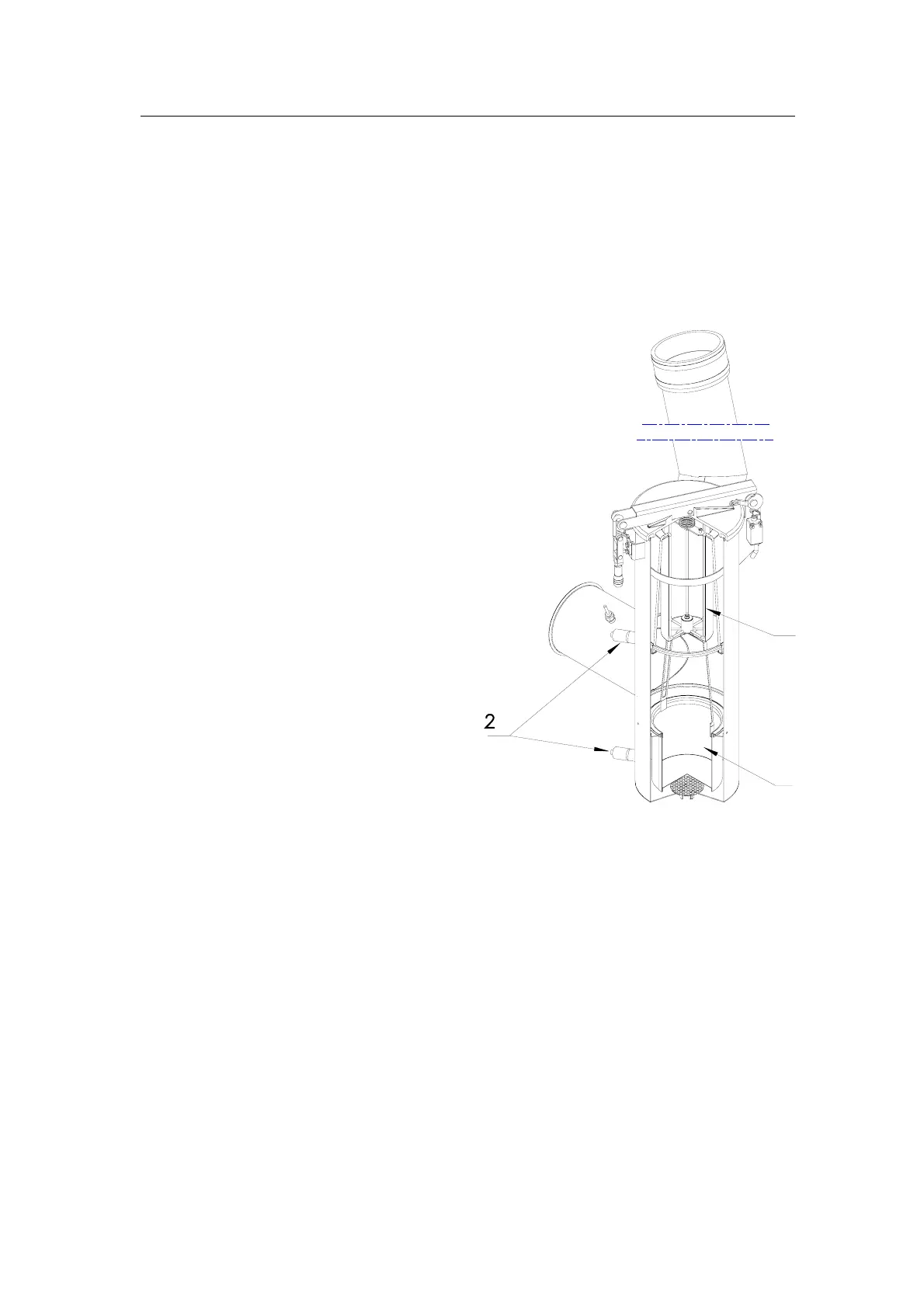

7.9 Button Trap 7.9
The button trap strainer (1) catches large
impurities (such as buttons, etc.) and lint
that are in the detergent solution. Never
operate the system without the button
trap strainer! (Risk of damaging the
solvent pump). Additionally there is a
perforated disk below at the outlet tube
During the drying, a flow of air dries the
dirty lint in the button trap strainer.
7.10 Level Controller
You can adjust the low and high levels with
a capacitive sensor. (2)
7.11 Lint Filter
The lint filter (3) catches the lint that is carried
along in the air flow. The lint filter is in the
button trap housing. Never operate the
system without the lint filter! Never use a
damaged lint filter! Make sure that the lint filter
sits firmly in place. (Risk of lint on the cooling
register)
707766-07-0
