50
M12/M15/M18
7. Functional Units 7.

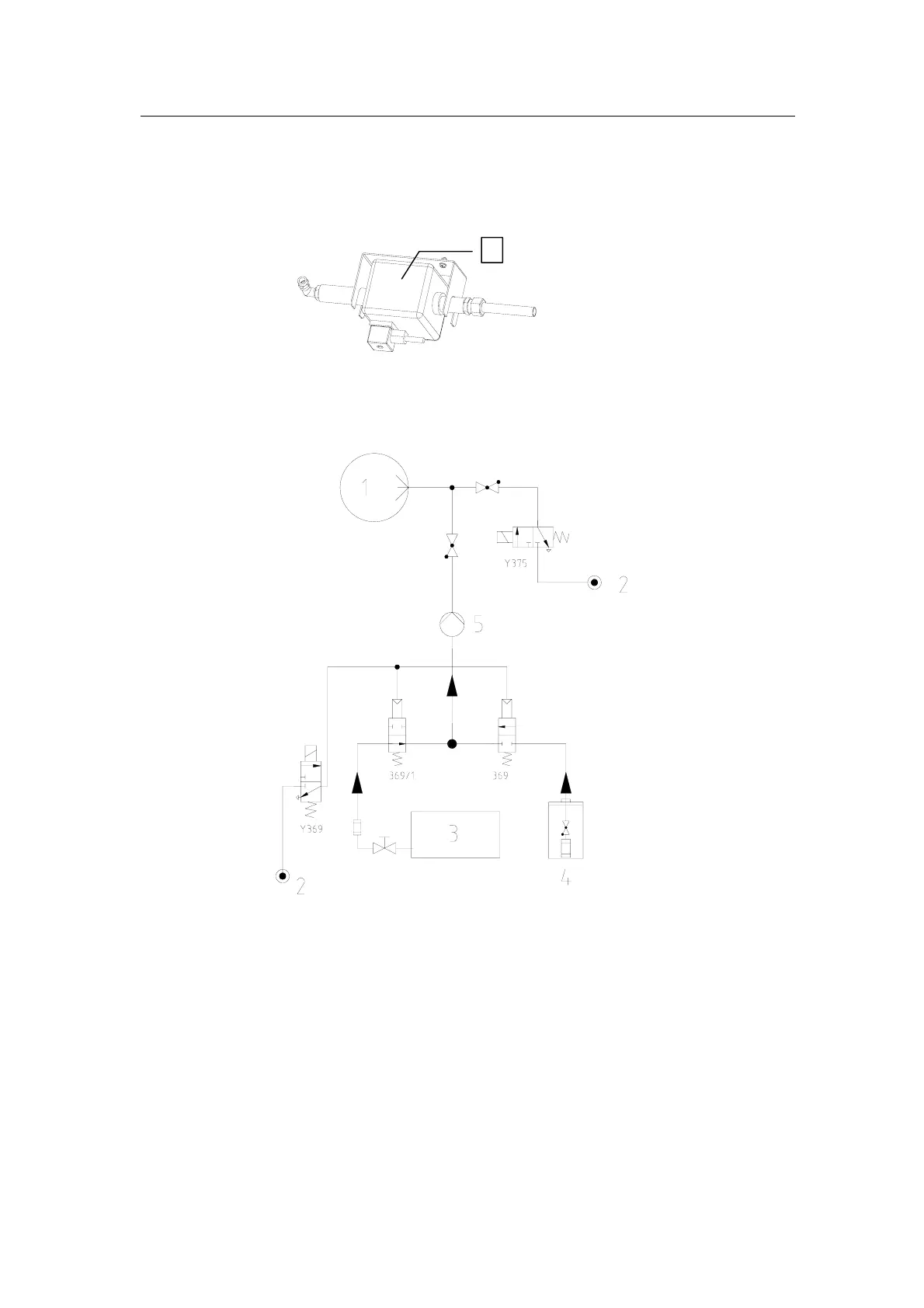

Construction
The main component is a vibrating reciprocating pump (1) with connections for the product suction
lines, suction lines for rinsing with solvent from the clean tank, spray line, connection for compressed
air for blowing the spray nozzles clean and electrical connection for the pump.
707760-13-0
Sprayer functional diagram:
707760-15-0
1 Cage
2 Compressed air 6 bar (87 psi)
3 Clean tank
4 Product
5 Spray pump
1
