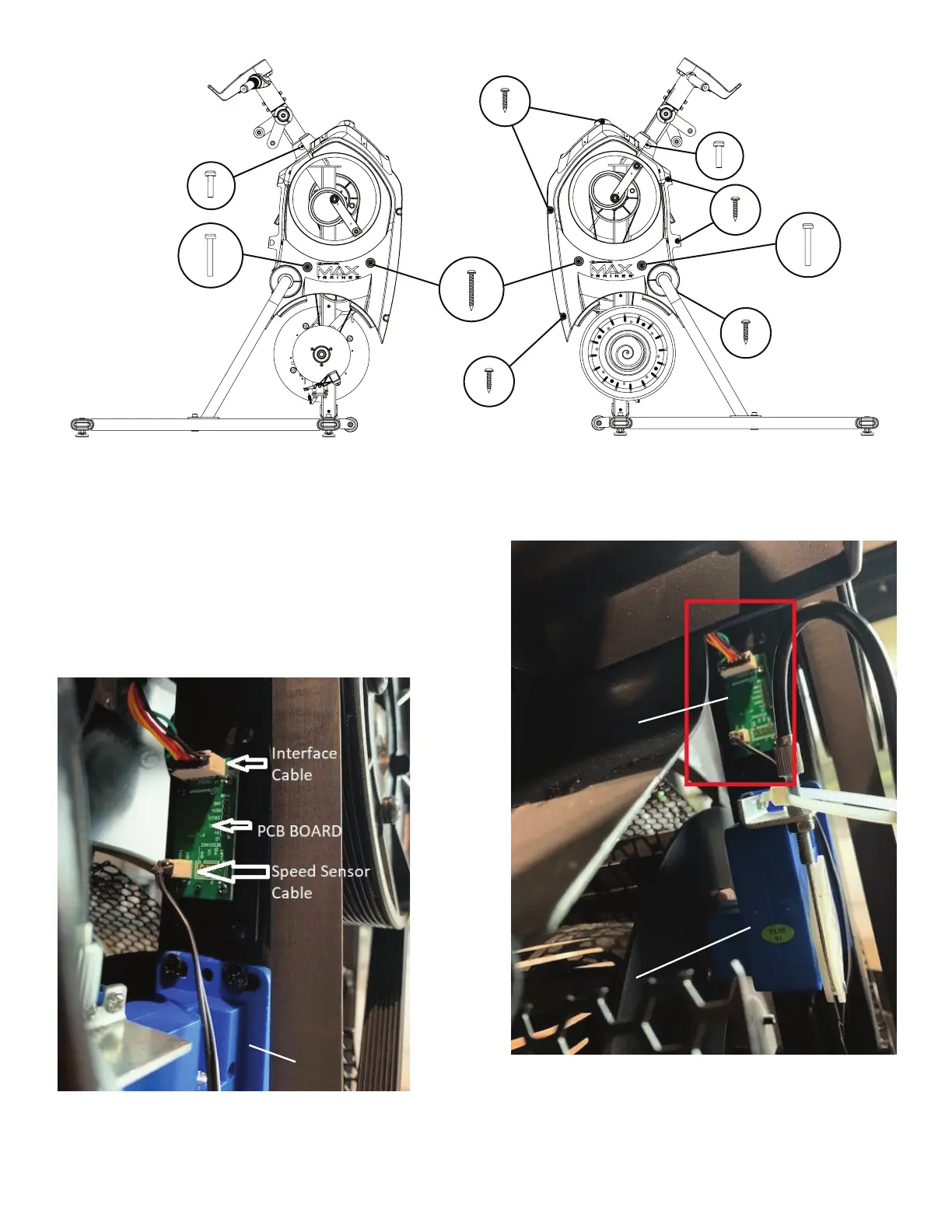

19. The PCBA Board Assembly is located above the Servo Motor.
After noting how the cables connect to the PCBA Board Assem-
bly, disconnect the cables from it.
Note: Be sure not to crimp or cut any of the cables.
Right Side Left Side
*
*
PCBA Board
Assembly
Servo Motor
Servo Motor
