14.Atthemaximumresistancesetting,theouteredgeoftheBrakeMag-
net should line up with the outer edge of the Brake Disc.
15. If the Brake Assembly needs to be adjusted, use a 8mm open ended
wrench to loosen the Brake Cable Securing Nut. Turn the Adjustment
Barrel by hand until the magnet is placed correctly.
16. Carefully rotate the Brake Disc. If the Brake Disc does not rub against
the Brake Magnet, skip to step 19.
Keep ngers out of any pinch opportunities when rotating
the Brake Disc.
Note: The Brake Disc may appear to have a slight “wobble”. This is
normal and will not affect machine function.

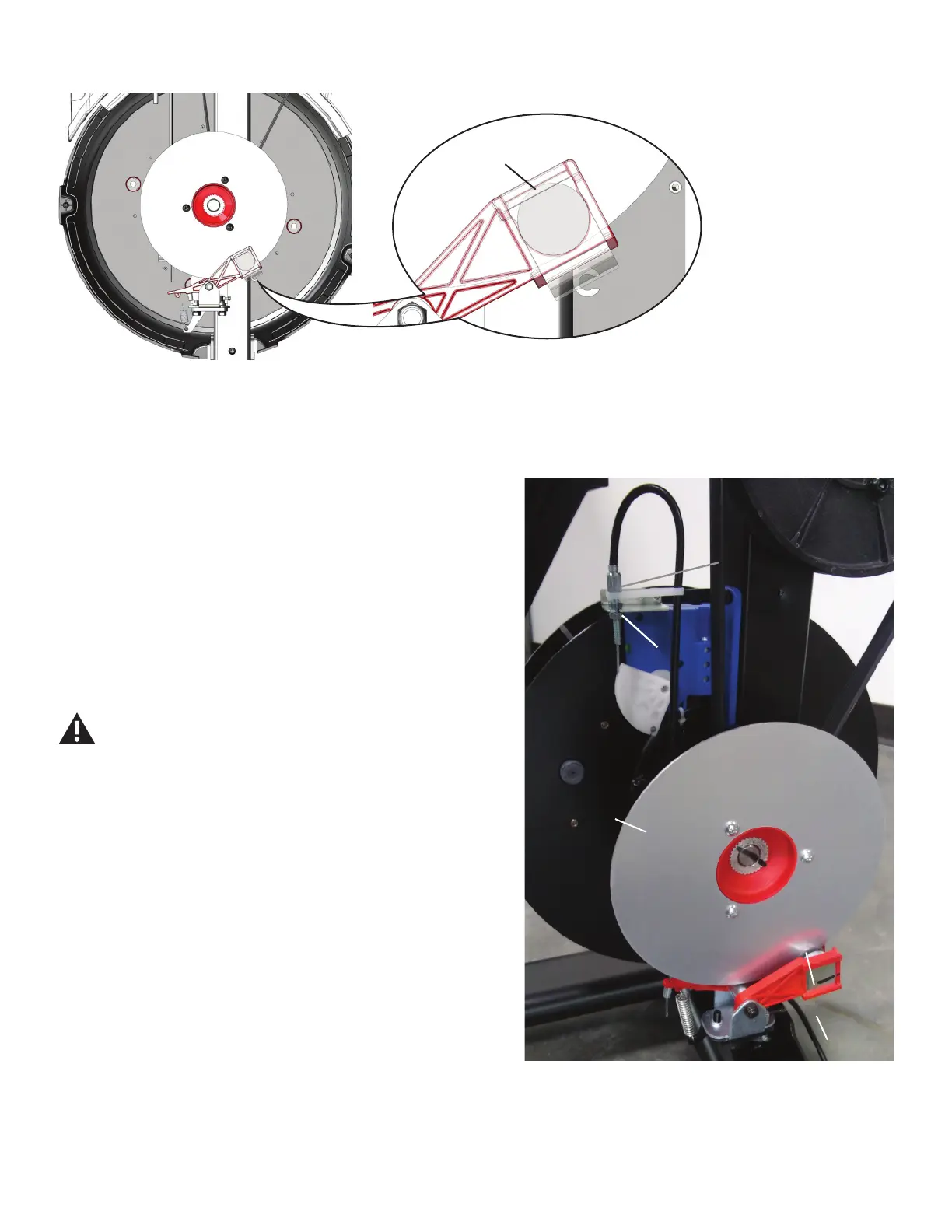

Brake Magnet
Brake Disc
Brake Disc
Brake Assembly
Brake Magnet
Brake Cable Securing Nut
Adjustment Barrel
