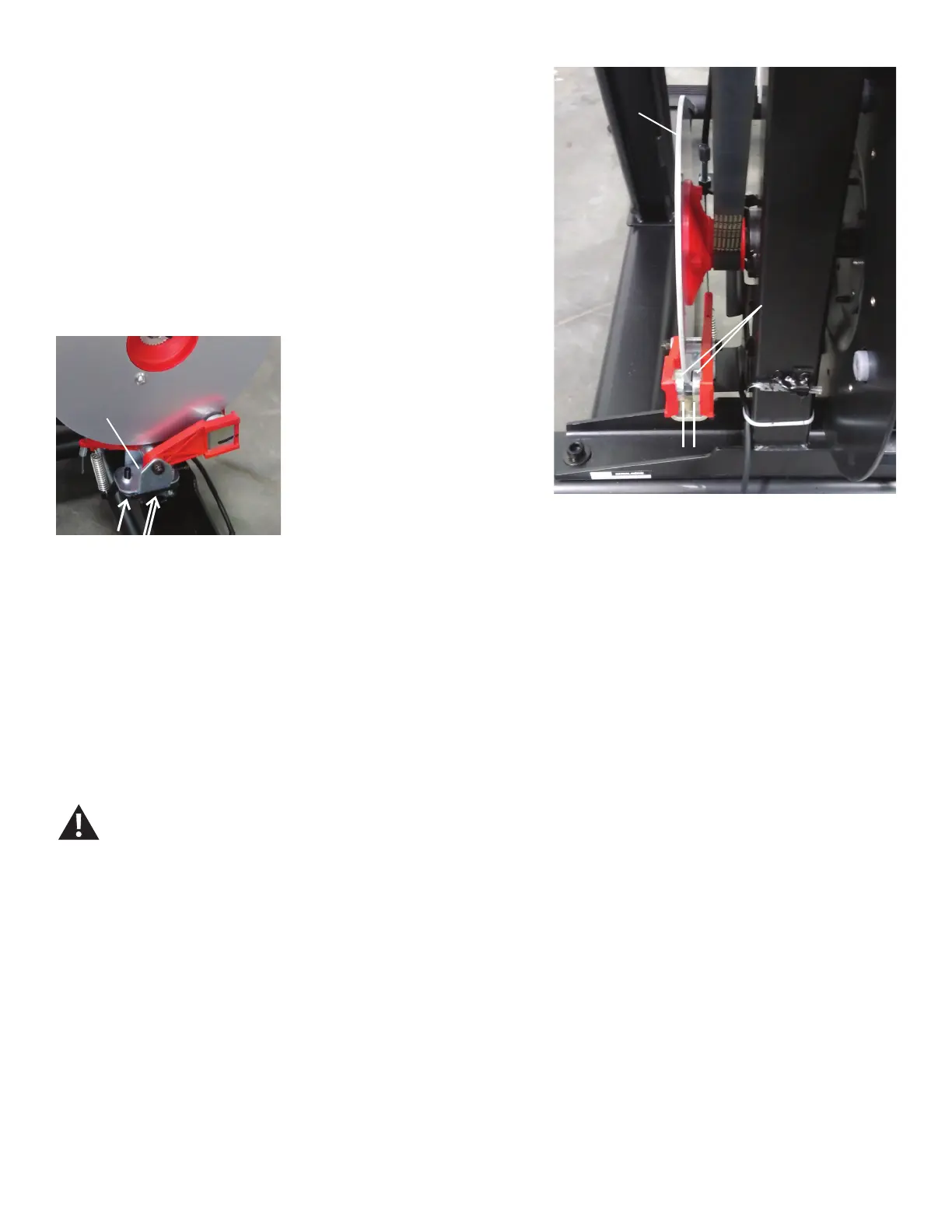

17. The Brake Magnets should be aligned with the Brake Disc
and centered around the Brake Disc. If they are not aligned and
centered, then the Magnets are adding drag.
18. If the Brake Assembly only needs to be slightly adjusted,
loosen the front screw (indicated by double-tailed arrow) that
secures the Brake Assembly using a 10mm hex wrench. Rotate
the Brake Assembly until the Magnets are aligned and of equal
distance from the Brake Disc.
If the Brake Assembly must be fully shifted, loosen the 2 screws
(indicated by arrows) that secure the assembly and shift it until
centered and aligned with the Brake Disc. Fully tighten the
hardware.
19. Installation is the reverse procedure.
20. Final Inspection
Inspect your machine to ensure that all hardware is tight and
components are properly assembled.
Do not use until the machine has been fully
assembled and inspected for correct performance
in accordance with the Owner’s Manual.
Brake
Assembly
=
Brake Assembly
Magnets
Brake Disc
