144

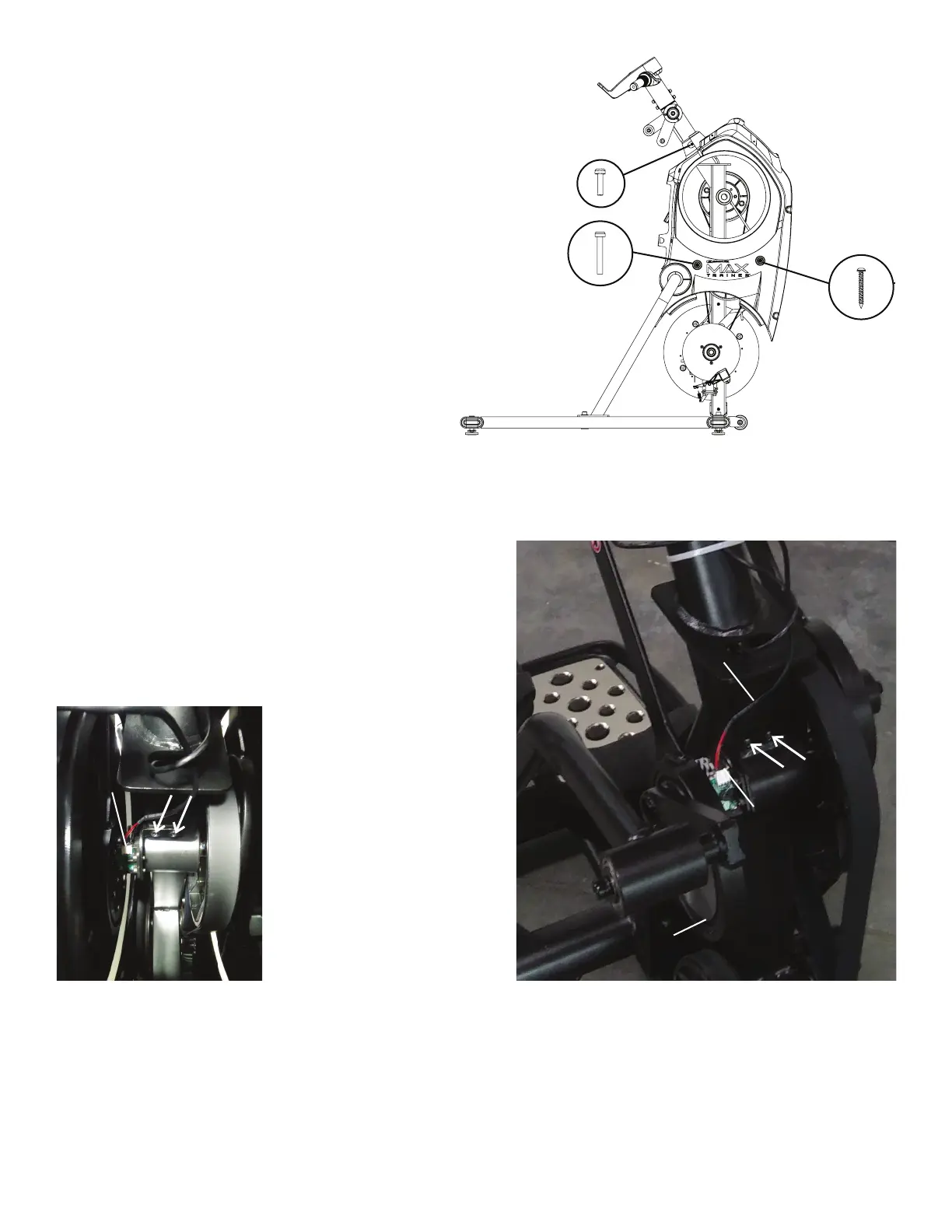

17.Usinga#2Phillipsscrewdriver,removetheindicatedscrews
from the Right shroud ( 3 screws on the Right Shroud). Remove the
upper screws labeled ‘ * ’ last.
18. Carefully remove the Right Shroud from the machine.
Right Side Left Side
*
*
Note: Shrouds are removed for clarity.
Upper Body Sensor
Right Crank Arm
Upper Body Sensor
Cable
Note: View into Shrouds from above.
Upper Body
Sensor
19.Usinga#2Phillipsscrewdriver,removethescrews(indicatedbyar-
rows) that secure the Upper Body Sensor. Allow the Upper Body Sensor
to hang on the Cable, away from the Right Crank Arm.
