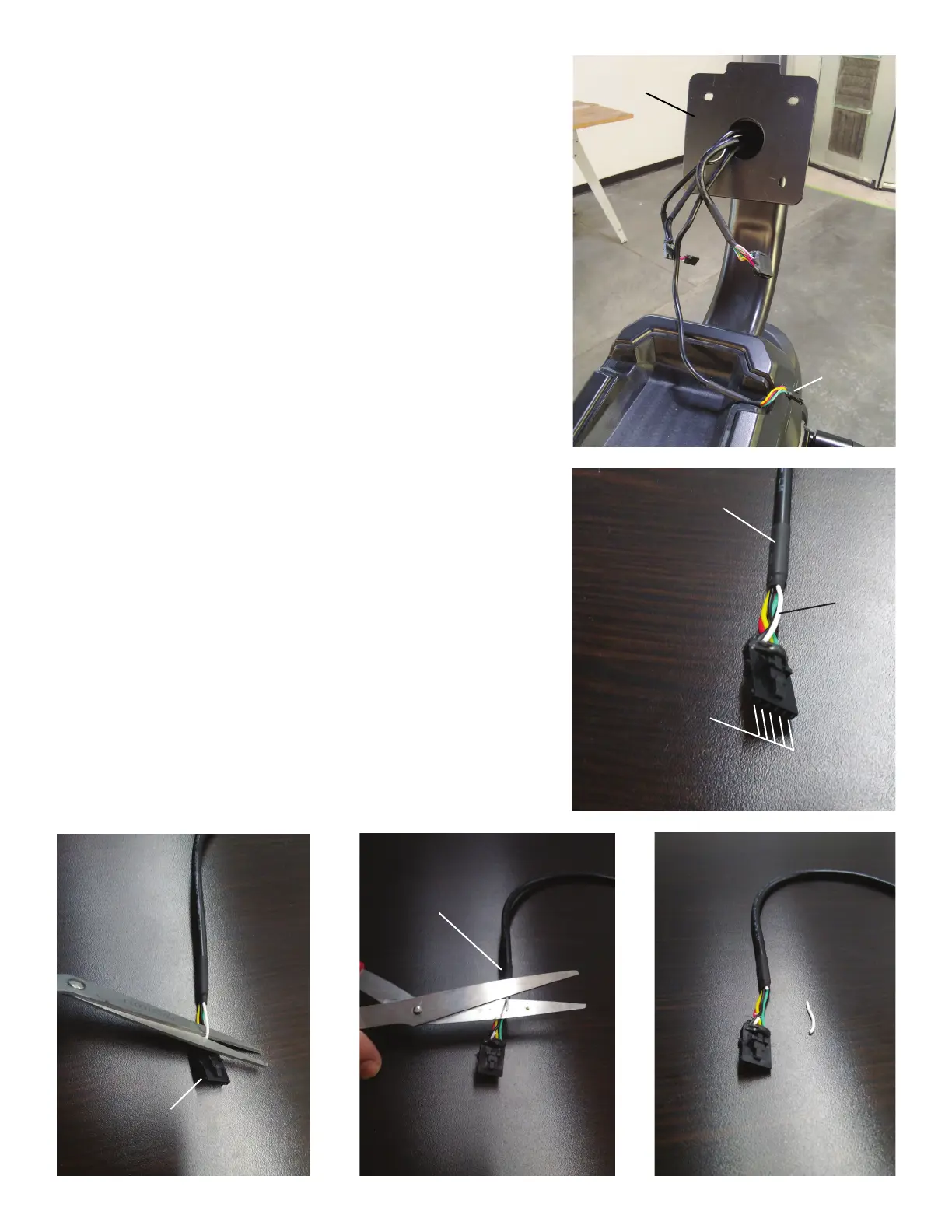

6. Locate the Resistance Knob Cable which has the 5-pin Wire Connector coming
from the Console Mast. This Cable will have Red, Yellow, Black, Green and White
Wires inside of it.
7. Slightly pull out the White Wire from the others and cut it twice with scissors or wire
cutters.Therstcutshouldbeasnearthe5-pinWireConnectoraspossible,andthe
second cut should be where the Cable Sleeve covers all the Wires.
Note: Be sure not to cut or crimp any of the other Wires.
Resistance
Knob Cable
(5-pin)
5-pin Wire Connector
Console Mast
Resistance Knob Cable
White Wire
5-pin Wire Connector
Cable Sleeve
