Bowflex Max Total 16/40 - Page 55

55

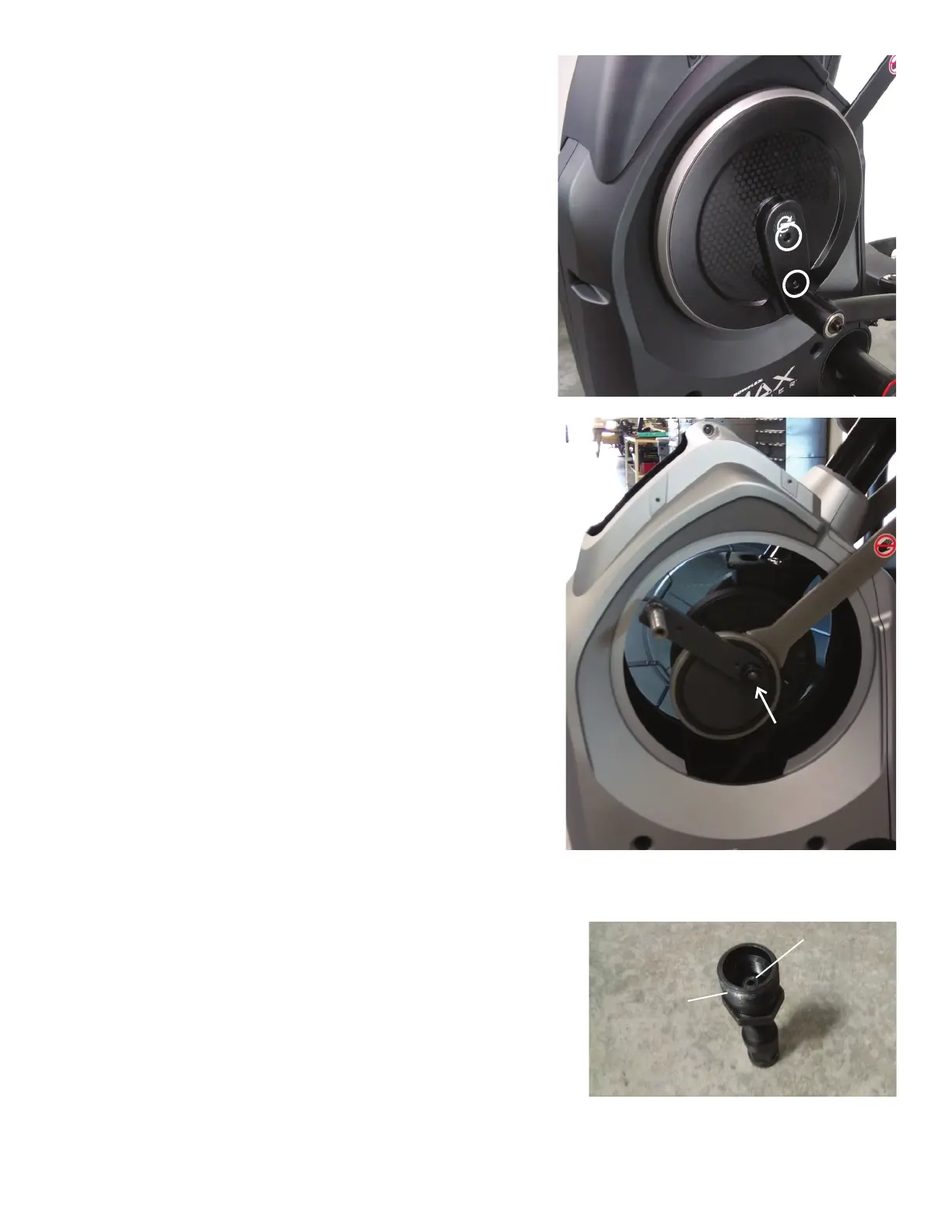

8.Usinga#2Phillipsscrewdriver,removethe2indicatedscrews
from the Left Crank Cover.
Note: The Left Crank Cover screws may have been over-tightened
when installed. Try not to strip the screws when removing them.
9. Remove the Left Crank Cover from the machine.
10.Usinga9/16”or14mmsocketandwrench,removetheindicated
nut from the Crank Assembly.
11. Adjust the Crank Puller until the end of the Bolt is inside the Nut
(as shown).
Bolt
Nut
Crank Cover
