Select the area where you are going to set up and operate your equipment. For safe operation, the location must be on a hard, level surface. Allow a workout area of
minimum 3 m x 3 m (120” x 120”).
Basic Assembly Tips
Follow these basic points when you assemble your equipment:
1. Read and understand the “Important Safety Instructions” before assembly.
2. Collect all the pieces necessary for each assembly step.
3. Using the recommended wrenches, turn the bolts and nuts to the right (clockwise) to tighten, and the left (counterclockwise) to loosen, unless instructed otherwise.
4. When attaching 2 pieces, carefully lift and look through the bolt holes to help insert the bolt through the holes.

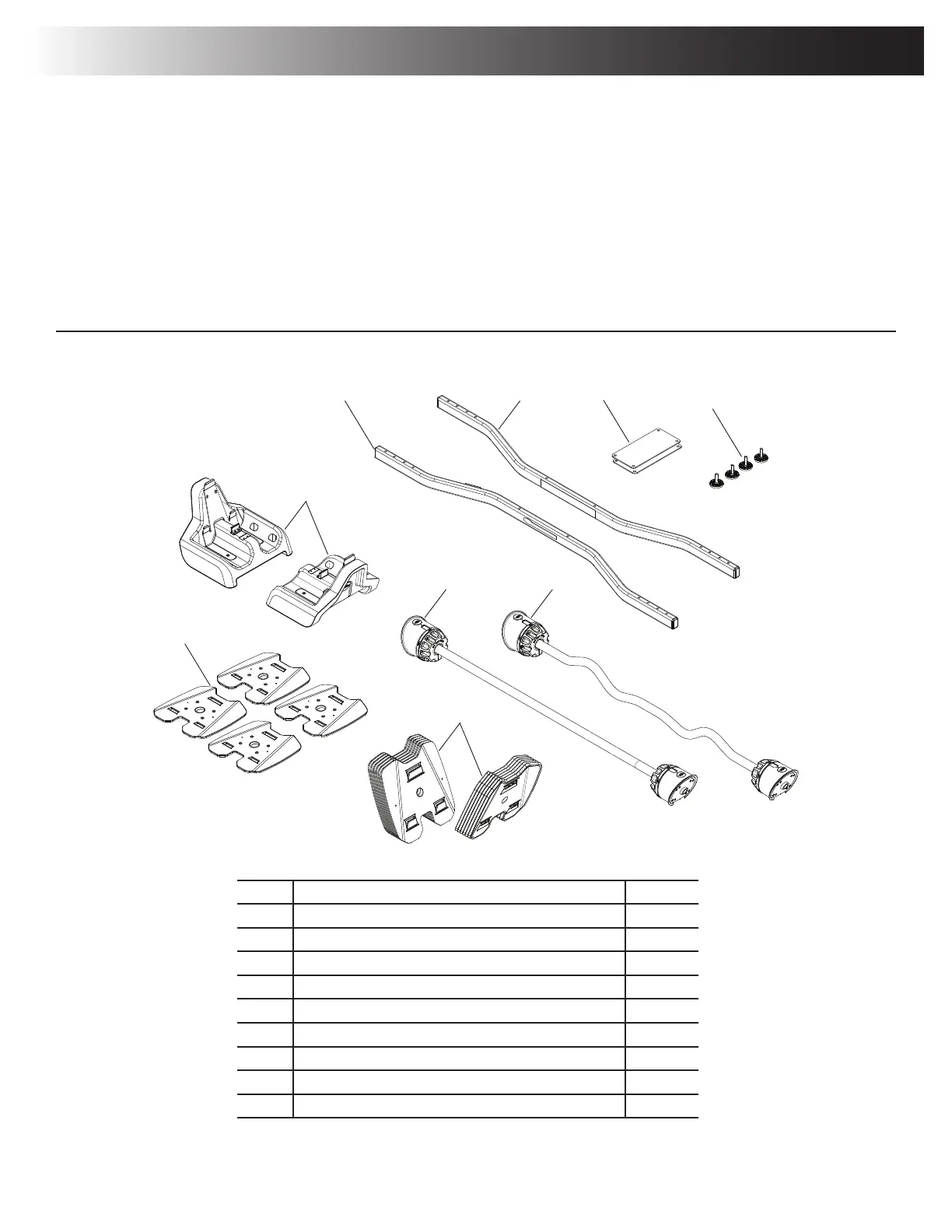

Item Description Qty
1 Base Tube, Front 1
2 Base Tube, Rear 1
3 Base Plates 2
4 Levelers 4
5 Base End Shrouds 2
6 Barbell Handle Assembly 1
7 Curl Bar Handle Assembly 1
8 Adapter Plates 4
9 5-lb (2.27 kg) Weight Plates 12
1
3
4
2
5
6
7
8
9
Parts
Before Assembly / Parts
Owner’s Manual
