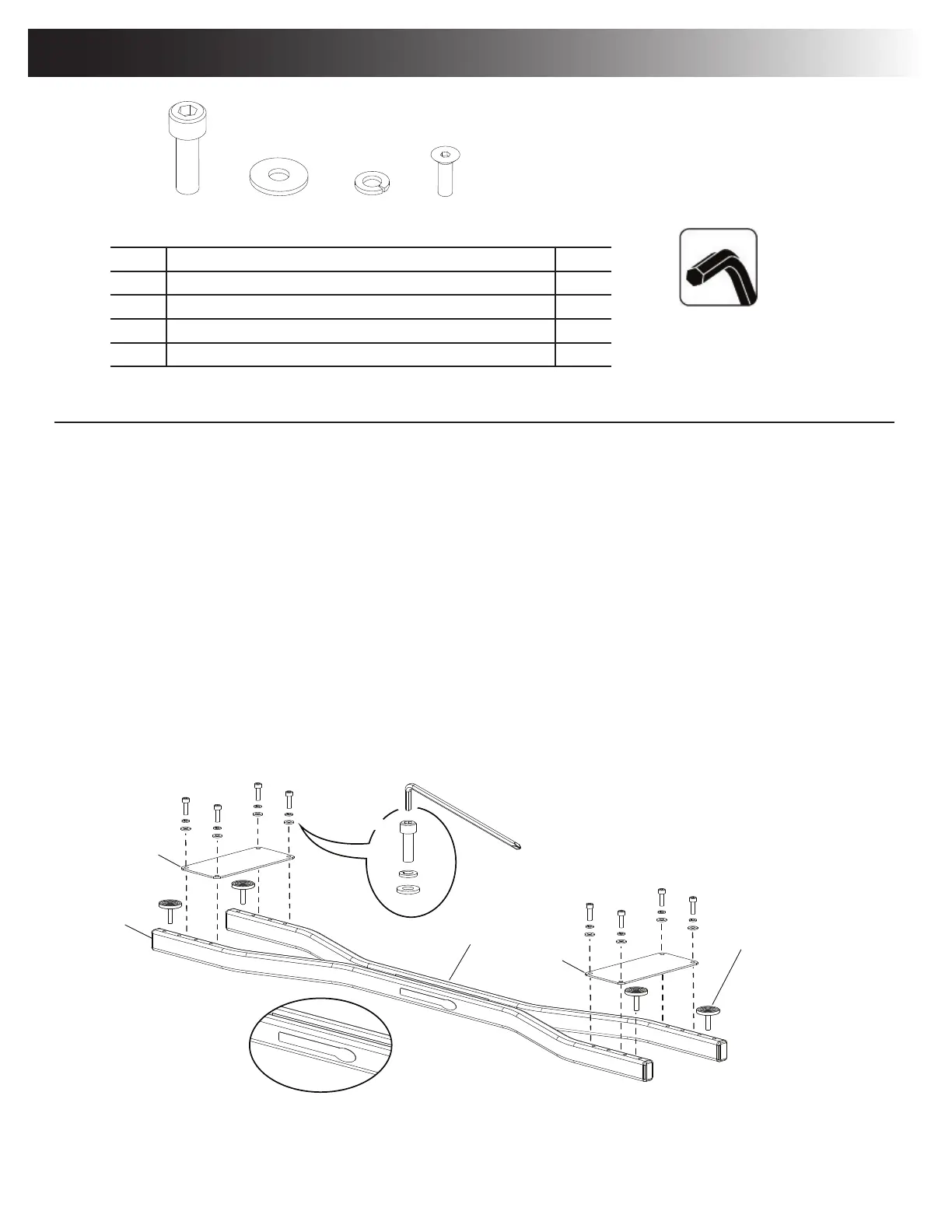

1. Attach Base Plates to Base Tubes, then Install Levelers.
Note: Be sure to attach the Base Plates to the bottom of the tubes so that the label (1a) will be right side up after assembly. Hand tighten all
screws, then fully tighten. Install the Levelers.
Turn the Base assembly right side up and adjust the Levelers so that the assembly is level and stable.
Item Description Qty
A Socket Head Cap Screw M8 X 25 16
B Flat Washer M8 8
C Spring Lock Washer M8 8
D Flat Head Socket Cap Screw M5 X 16 16
Included
3 mm
6 mm
Tools
B
C D
A
Assembly
If you are assembling the Barbell with Curl Bar set and the optional Stand with Media Rack together, refer to the Bowflex
™
SelectTech
™
2080 Stand with Media Rack Assembly Manual for assembly instructions.
Hardware / Tools / Assembly
3
B
C
A
X8
6mm
3
4 X4
1
2
1a
Owner’s Manual
6
To Next Page
