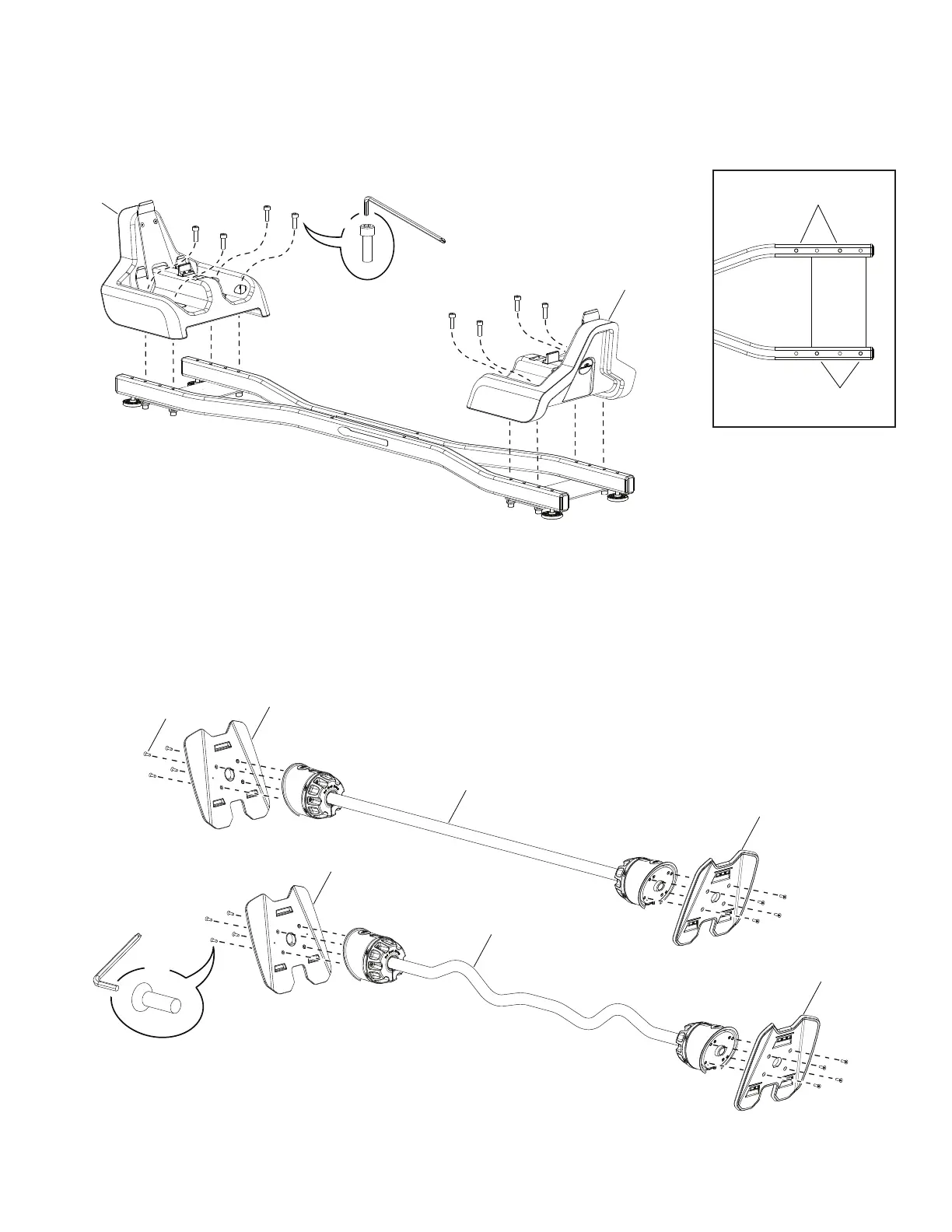

3. Attach Adapter Plates to Barbell Handle and Curl Bar Handle
NOTICE: Ensure the Adapter Plates are oriented correctly. The screws must enter the countersink holes on the back of the plates.
6
7
8
8
D
8
8
D X8
X8
2. Attach Base End Shrouds
Note: Do not fully tighten screws. Shrouds should still slide.
NOTICE: Use the inner set of screw holes in the Base Tubes to t the 80-lb barbell conguration. If the Barbell will have the 40-lb Weight
Upgrade (the 120-lb conguration), use the outer set of screw holes in the Base Tubes.
5
5
A
6mm
X8
Inner
Outer
Owner’s Manual
7
