Bowflex ULTIMATE 2 - Preacher Curl; Reverse Grip Tricep Pushdown

40

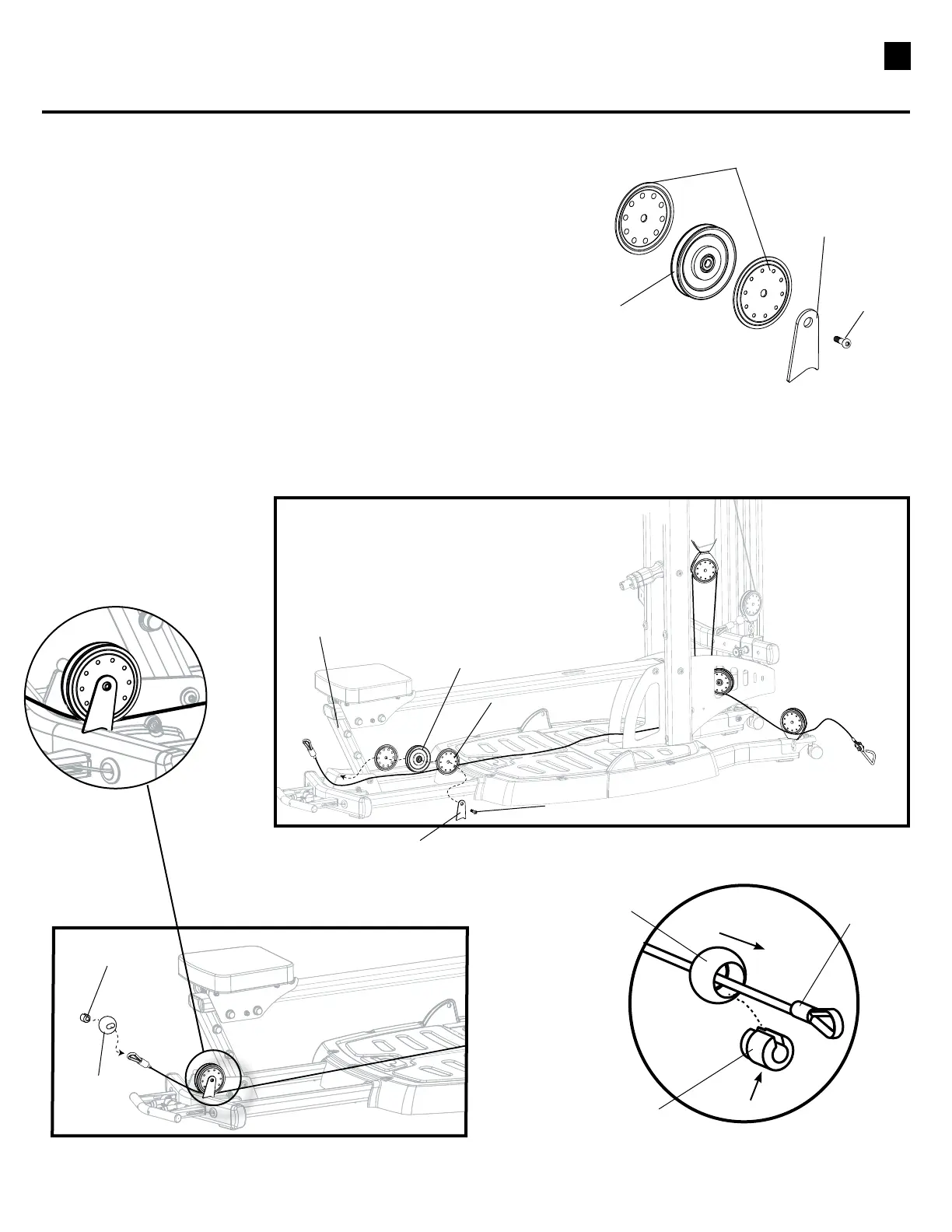

Cable Installation STEP 6
a. InBox3,LocateaSinglePulleyAssemblywithtwoCheeksanda
CableRetainerBracket.(See Figure A)
b. ExtendtheCabletothefrontoftheunit.
c. RoutetheCableunderthePulleyandattachthe
PulleytotheFrameinfrontoftheBenchSupport.
NOTE: Make sure the Bracket is oriented as shown. (Detail C)
d. ReplacetheBallStop.(See Figure C and D )
Tool:
 •HexKey(7/32”)
Figure A
Figure B
Pulley
Cheek
Button Head Screw
Bench Support
Figure C
Slide Ball Tightly Against
Insert and Cable End
Replace Slotted Insert
Cable End
Figure D
Ball Stop
Slotted Insert
Cheeks
Pulley
REPEAT CABLE INSTALLATION STEPS 1-6 FOR THE CABLES ON THE OPPOSITE SIDE OF THE UNIT.
Installing Your Bowflex Ultimate
®
2 Cables
Cable Retainer
Bracket
Button
Head
Screw
Cable Retainer Bracket
Detail C
