Assembling Your Bowflex Ultimate
®
2

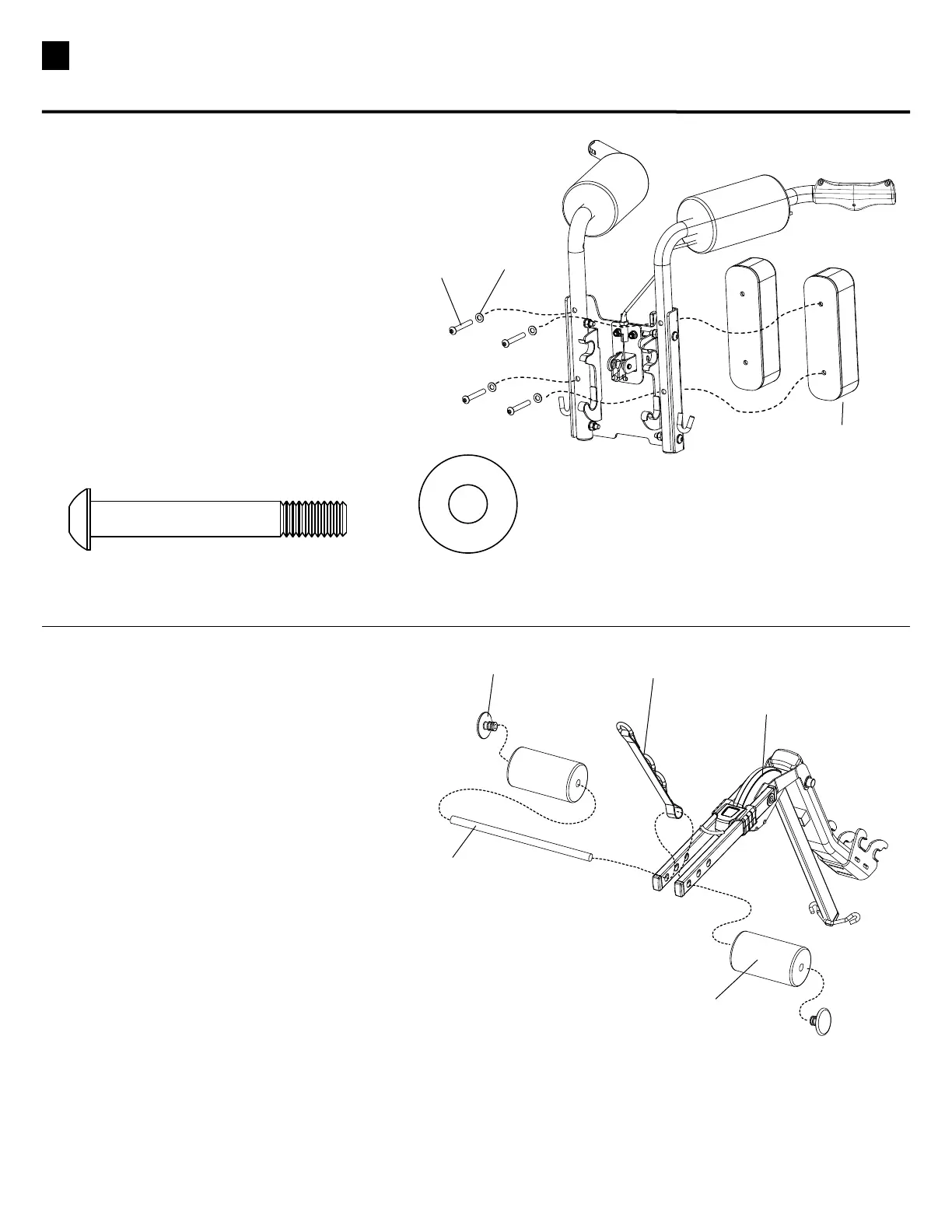

STEP 21
Parts:
 •LegExtensionPivotArmAssembly(Box7)
 •RollerPads(Box7)
 •WebbingwithSteelRing(Box7)
 •RollerShaft(Box7)
 •EndCaps(Box7)
21-1 Insert Roller Shaft through hole in one of
therectangulararms.PlacetheWeb-
bing with Steel Rings between the two
rectangulararms,andcontinuetoslide
theShaftthroughtheWebbingandhole
in opposite arm.
21-2 SlideRollerPadsandEndCapsontoRollerShaft.
Roller Pad
Roller Shaft
Leg Extension Pivot Arm
Assembly
Webbing with Steel Rings
STEP 20
Parts:
 •SquatAssembly(from step 19)
 •SquatBackPads(Box2)
Tool:
 •HexKey(3/16”)
20-1 AlignholesinSquatBackPadsand
SquatAssembly.
20-2 Installandcompletelytightenhardware.
Hardware (1:1):
4 Pan Head Allen Bolt (5/16” X 2 1/4”) 4 Washers (5/16”)
Pan Head Allen
Bolt
Washer
Squat Back
Pad
End Cap
