Assembling Your Bowflex Ultimate
®
2

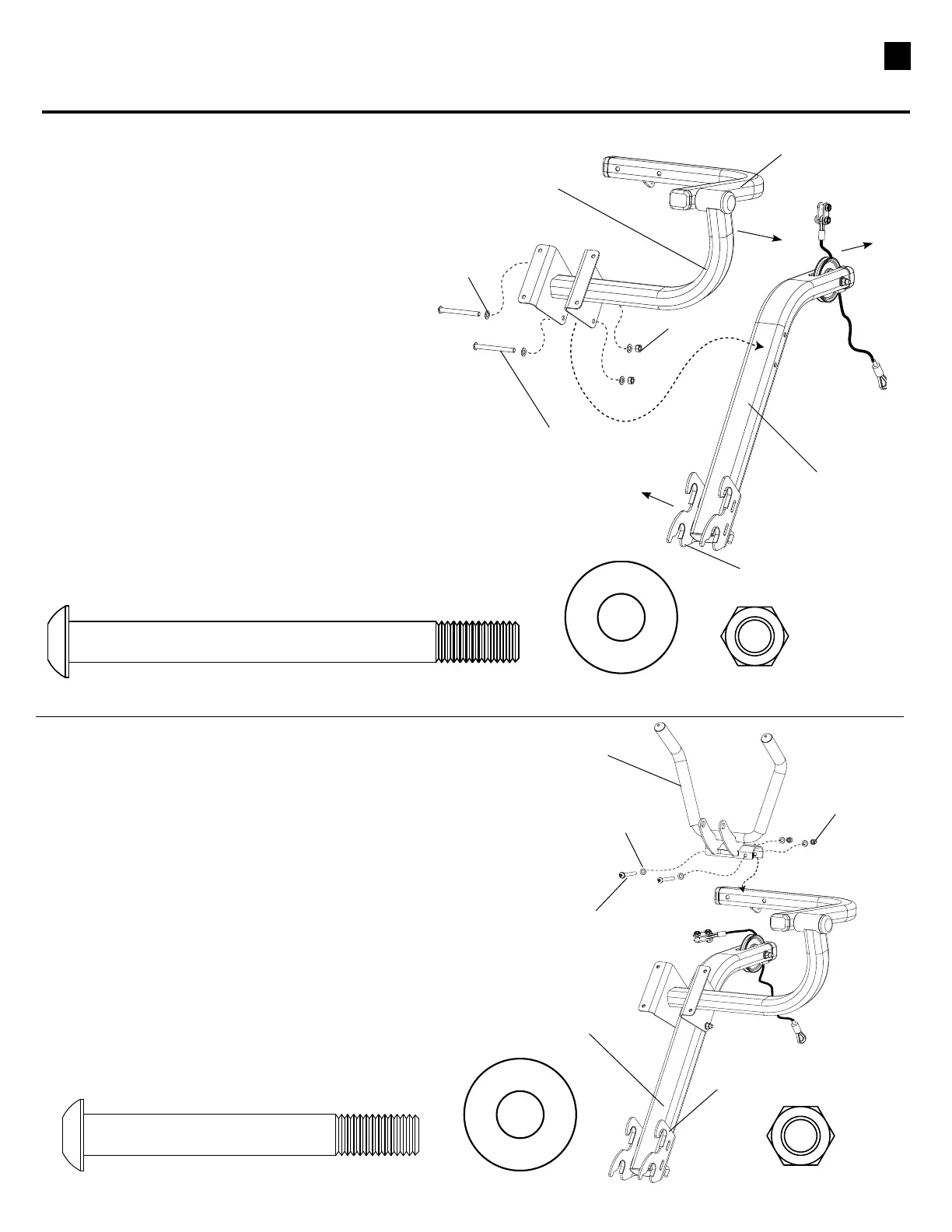

STEP 22 (optional attachment)
Parts:
 •AbCrunchFrame(AbBox)
 •AbCrunchPivotArm(AbBox)
Tool:
 •HexKey(7/32”)
 •Wrench(9/16”)- or Adjustable Wrench
22-1 PlaceAbCrunchFrameonoorwithhooks
onthetopandpulleyendpointingaway
from you.
22-2 AlignAbCrunchPivotArmonAbCrunch
Frame with the pivot mechanism to the right
sideasshown.
22-3Installandcompletelytightenhardware.
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 4”) 4 Washers (3/8”)
Hooks on top
Pulley
pointing
away
Pivot Arm pointing to right
Pan Head Allen
Bolt
Washer
Nylock Nut
Ab Crunch Frame
2 Nylock Nuts (3/8”)
STEP 23
Parts:
 •AbCrunchAssembly(from step 21)
 •AbHandleBars(AbBox)
Tool:
 •HexKey(7/32”)
 •Wrench(9/16”)- or Adjustable Wrench
23-1 PlacetheAbHandleBarsontheAbPivotArmwith
theHandleBarspointingtowardthesamesideas
the hooks on the Ab Frame as shown.
23-2Installandcompletelytightenhardware.
Hardware (1:1):
2 Pan Head Allen Bolt (3/8” X 3”)
4 Washers (3/8”)
2 Nylock Nut (3/8”)
Pan Head Allen
Bolt
Washer
Nylock Nut
Hooks
Ab Frame
Ab Handle Bars
HardwareforthisstepisinthehardwarebagintheABBOX.
Hardwareforthisstepisinthehardware
bagintheABBOX.
Ab Crunch Pivot
Arm
