Pre Start Inspection and Operation
3.6

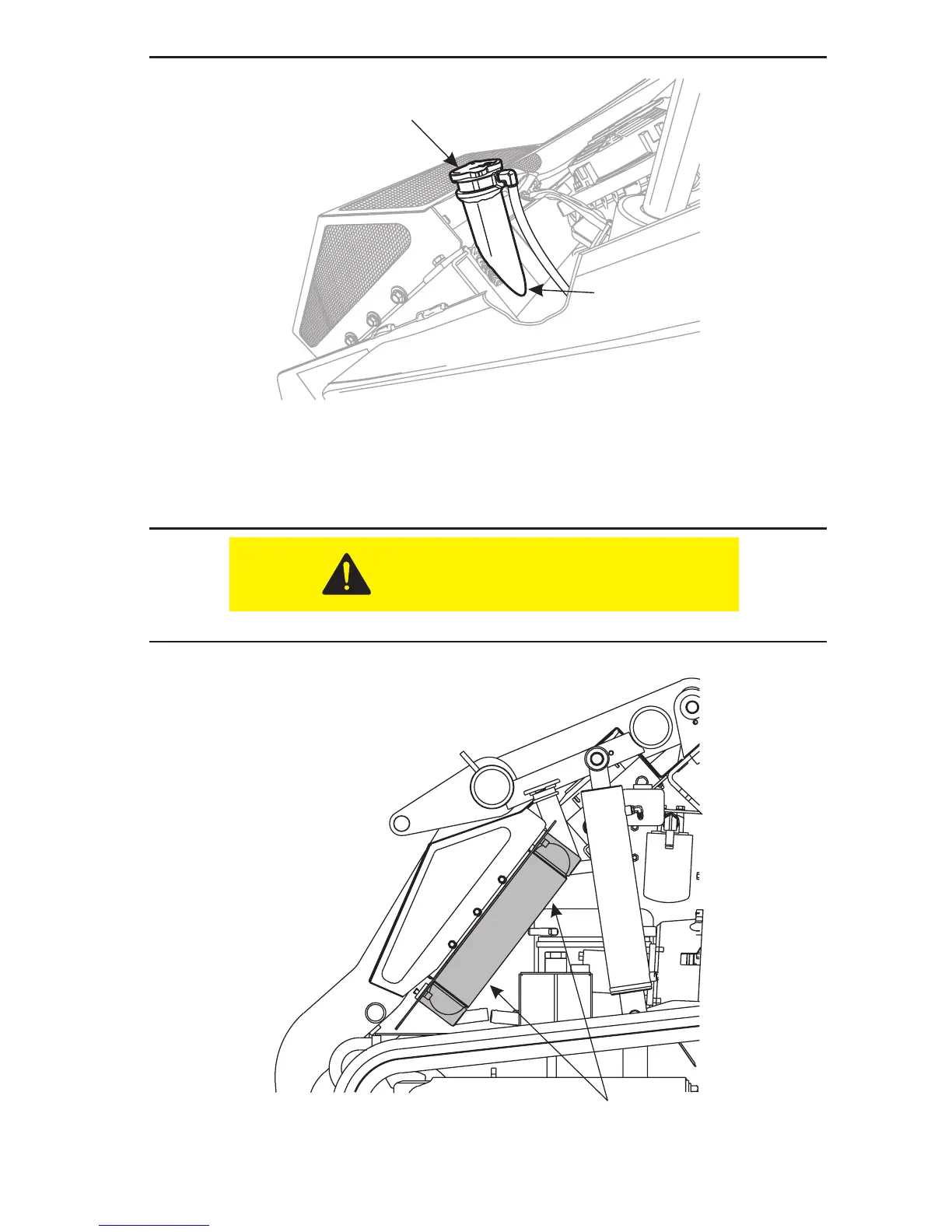

Figure 3-4 Engine Coolant Level Check
5. Inspect the radiator to make sure that the air ow is not blocked. The fan located on top of
the unit is a suction fan, which draws air from inside the machine. Check the engine side
of the radiator (Item 1, Figure 3–5) to make sure that debris has not been sucked against
the radiator blocking air ow.
DO NOT check until the engine radiator is cool to the touch.
NOTE:Some items in Figure 3–5 have been removed for clarity.
Figure 3-5 Radiator Air Flow Inspection
