Routine Service and Maintenance
4.7
If you are checking the uid level after a period of use, the hydraulic system and uid
will be very hot. Wear gloves when inspecting the hydraulic system and uid.
8. Check hydraulic oil level with the machine at operating temperature, ll as needed with
the proper hydraulic oil - be sure engine is OFF.
a. Unscrew the dipstick assembly and remove from the machine. (Item 1, Figure 4–8)
b. Make sure that the hydraulic uid is not above the upper mark when the machine is at
operating temperature..

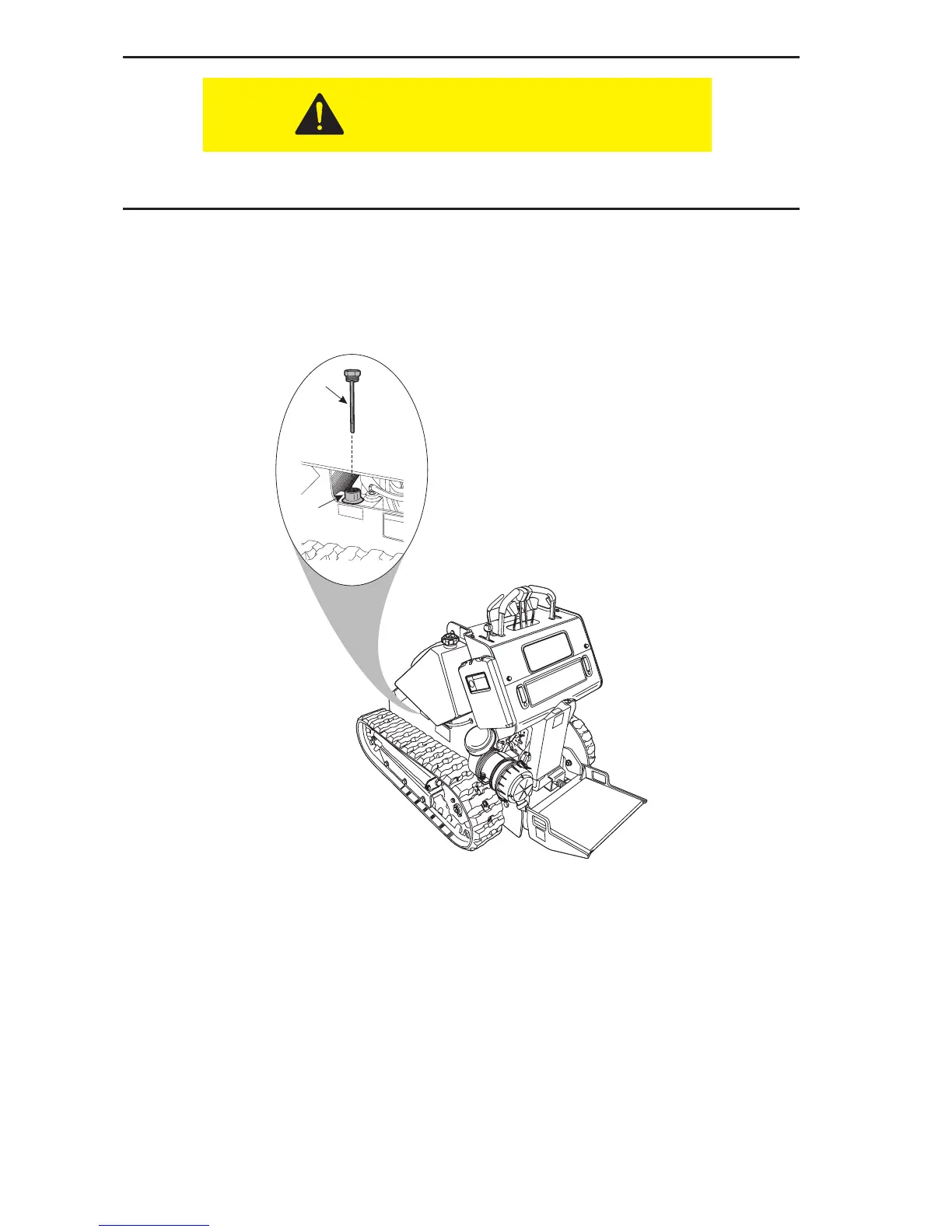

Figure 4-8 Hydraulic Fluid Level Dip Stick
c. Add the proper hydraulic uid (Chevron Rykon Premium ISO 46 hydraulic uid or
equivalent) through the ller port (Item 2, Figure 4–8) .
