Bpt TH/500 - Advanced Program Configuration (P4); Customizing Program P4 Settings

18
H
F
G
ON ON
OFF
1 h
TH/500EN 24810740 30-10-14

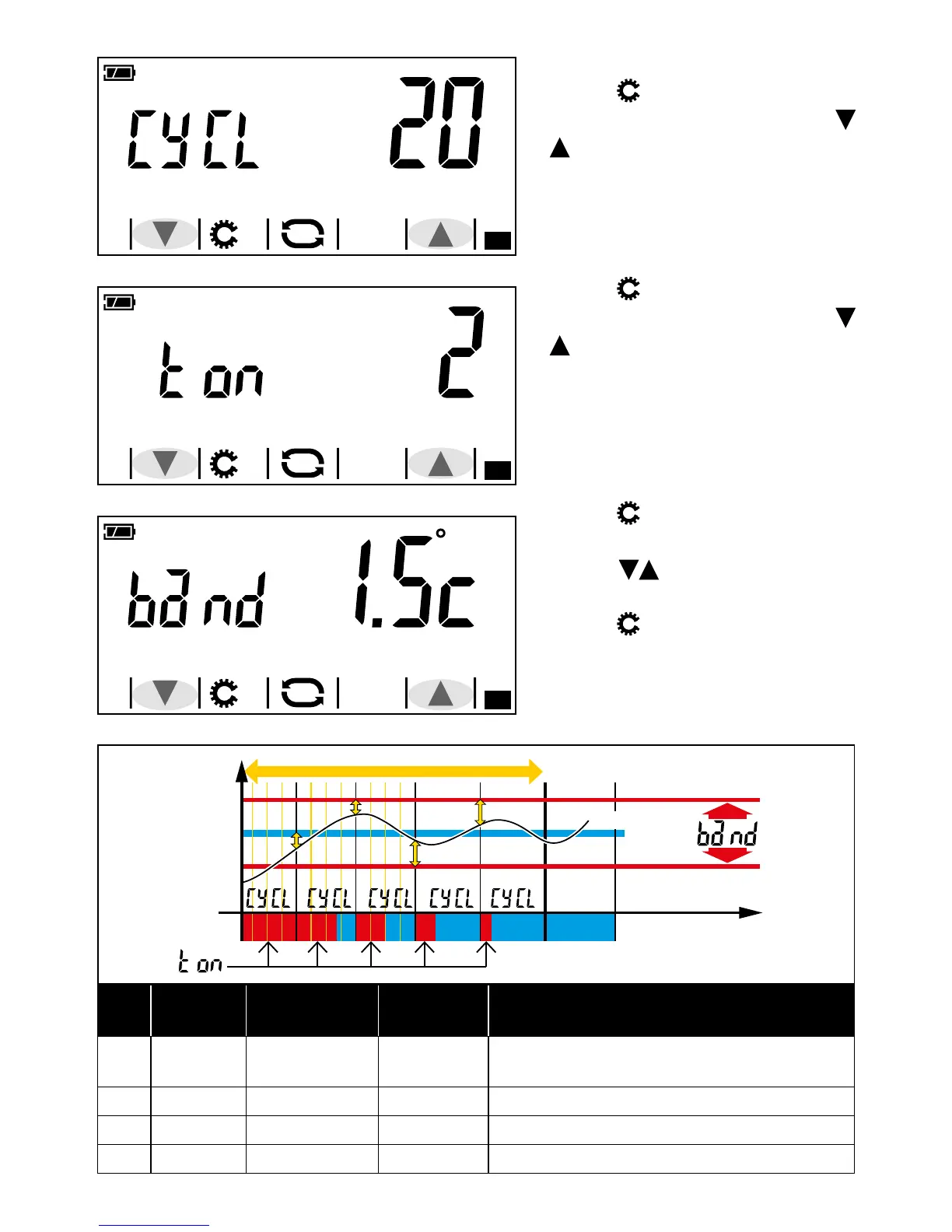

Program P4 can be made up as required.
Press the
button in gure E to be able
to enter the duration of a cycle, using the
arrows F.
Press the
button in gure F to be able
to enter the minimum on time, using the
arrows G.
Press the
button in gure G to be able
to enter the value of the proportional band,
using the arrows H.
Press the
button to move on to the next
parameter to be congured.
Temperature
Time
Set-point
Prog.
Cycle duration
(minutes)
Minimum ON
time (minutes)
Proportional
Range
Type of system
P1 10 1 1.5 °C
Base for gas burner, convector heaters, zone valves,
aluminium radiators
P2 5 1 1.5 °C Electric radiators
P3 20 2 1.5 °C Radiant or underoor systems, cooling
P4 from 5 to 40 from 1 to 5 from 1 °C to 3 °C
