BRADEN CH175A - Brake Cylinder Service and Assembly

128
127
143
142
130
124
122
136
129
126
123
125
139
131
133
135
134
137
132
140

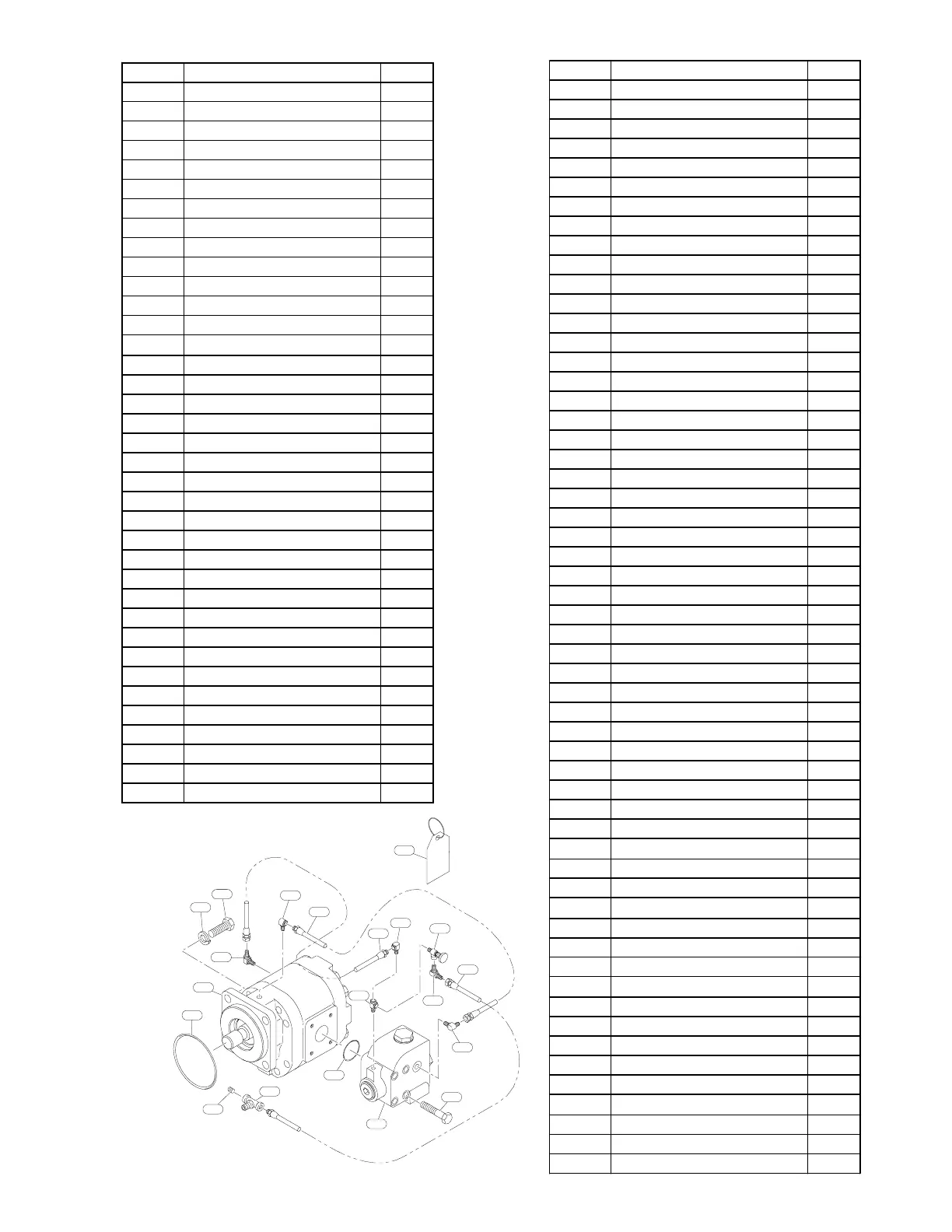

Single Speed Motor
(-1 option)
ITEM DESCRIPTION QTY.
2 Brake Cylinder 1
3 Brake Piston 1
4 Brake Piston Plate 1
5 Backup Plate 1
6 Belleville Spring 8
7 Spring Guide 1
8 Retaining Ring 1
9 Snap Ring 1
10 Snap Ring 1
11 O-Ring 1
12 O-Ring 1
13 Backup Ring 1
14 Backup Ring 1
15
Street Elbow - 45
o
1
17 Outer Brake Race* 1
18 Inner Brake Race* 1
19 Snap Ring 2
20 Sprag Bearing Retainer 2
21 Sprag Clutch* 1
24 Sprag Bearing 1
26 Primary Planet Carrier 1
27 Primary Planet Gear 3
28 Primary Planet Gear Shaft 3
29 Thrust Washer 6
29 Thrust Washer 6
30 Roller Bearing 3
31 Spirol Pin 3
32 Thrust Washer 1
34 Output Planet Carrier 1
35 Output Planet Gear 3
36 Output Planet Gear Shaft 3
37 Thrust Washer 6
38 Roller Bearing 6
39 Spirol Pin 3
40 Support End Plate 1
41 Bearing Support 1
42 Capscrew 8
ITEM DESCRIPTION QTY.
43 Lockwasher 36
44 Reducer Bushing 1
45 Relief Valve 1
46 Sight Glass 1
46 Pipe Plug 1
48 Motor End Plate 1
49 Motor Adapter 1
50 O-Ring 1
51 Capscrew 8
53 Ring Gear 1
54 Ring Gear Adapter 1
55 Primary Sun Gear 1
56 Cable Drum Closure 1
57 Output Sun Gear 1
58 Thrust Washer 1
59 Cable Drum 1
60 Capscrew 16
61 Tie Plate 2
62 Bearing Spacer 3
64 Ball Bearing 1
65 Ball Bearing 1
66 Brake Disc 10
67 Friction Disc 9
68 O-Ring 1
69 Oil Seal 1
70 Oil Seal 1
71 Cable Anchor Wedge 1
72 Plug 1
73 Brake Plate Spacer 1
74 Retaining Ring 1
76 Pipe Nipple 1
100 Bearing Race (.092" thick) 1
101 Thrust Bearing 1
102 Bearing Race (.063" thick) 1
122 Hydraulic Motor 1
123 Brake Valve 1
124 O-Ring 1
125 O-Ring 1
126 Capscrew 4
127
Elbow Fitting (90
o
)1
128 Hose Assembly 1
129 Fitting 1
130
Elbow Fitting (90
o
)1
131 Hose Assembly 1
132 Tee Fitting 1
133 Needle Valve 1
133a
Elbow Fitting (90
o
)1
134 Fitting 1
135 Hose Assembly 1
135 Tee Fitting 1
136 Tee Fitting 1
137 Plug 1
139
Elbow Fitting (90
o
)1
140 Warning Tag 1
142 Lockwasher 4
143 Capscrew 4
21
