18

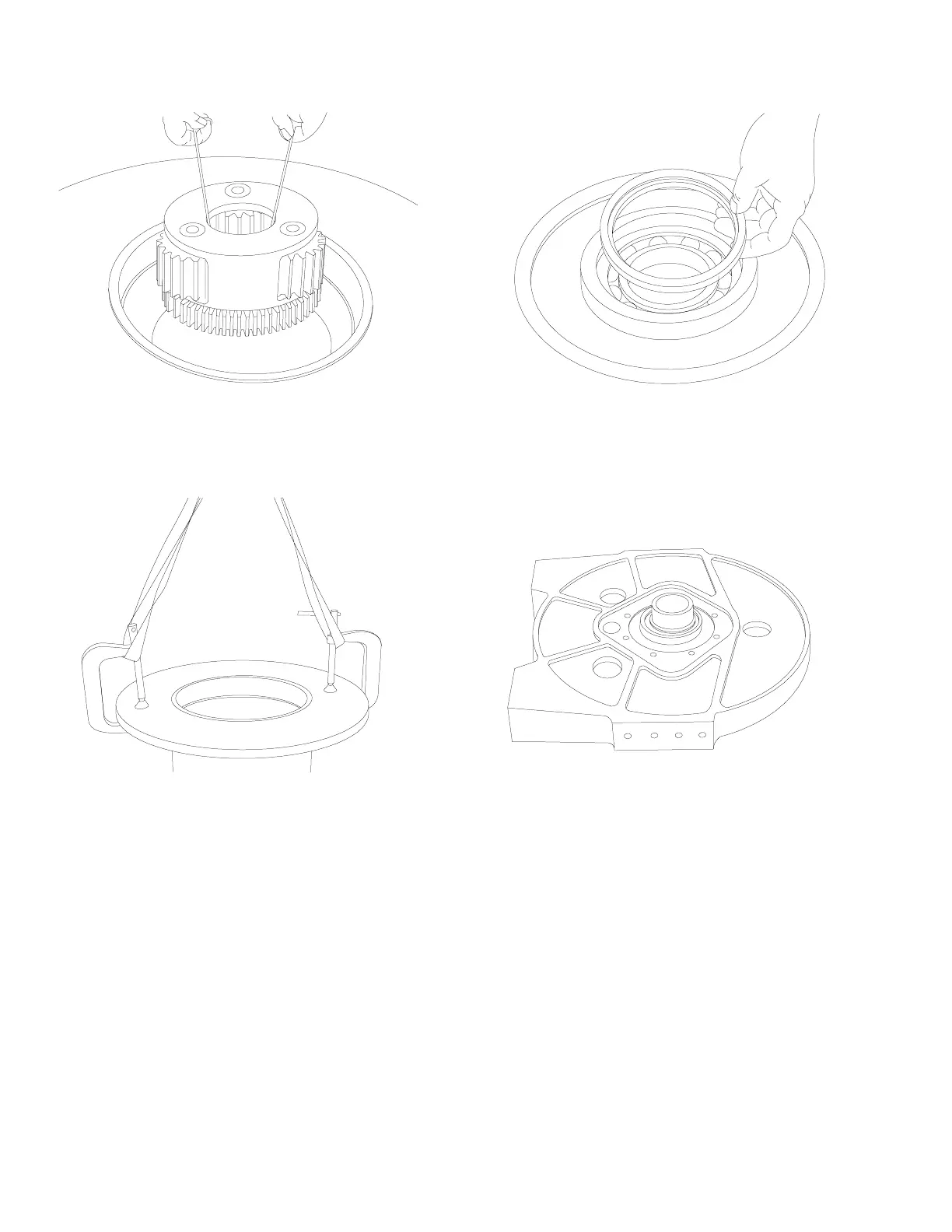

21. Lift the drum off the support end plate.
20. Remove the output planet carrier assembly. You can
make hooks like the ones shown to make removal
easier. Refer to the section on disassembly of the out-
put planet carrier assembly.
23. Check the bearing support sealing surface for nicks
and burrs. It is not necessary to remove the bearing
support from the support end plate unless it has been
damaged.
22. Turn the drum over and remove and discard the seal.
Inspect the bearing in the end of drum. If replacement
is necessary, use a bearing driver to remove the bear-
ing.
