BRADEN CH280 - Page 23

23
46
40
44
45
104
41
42
43

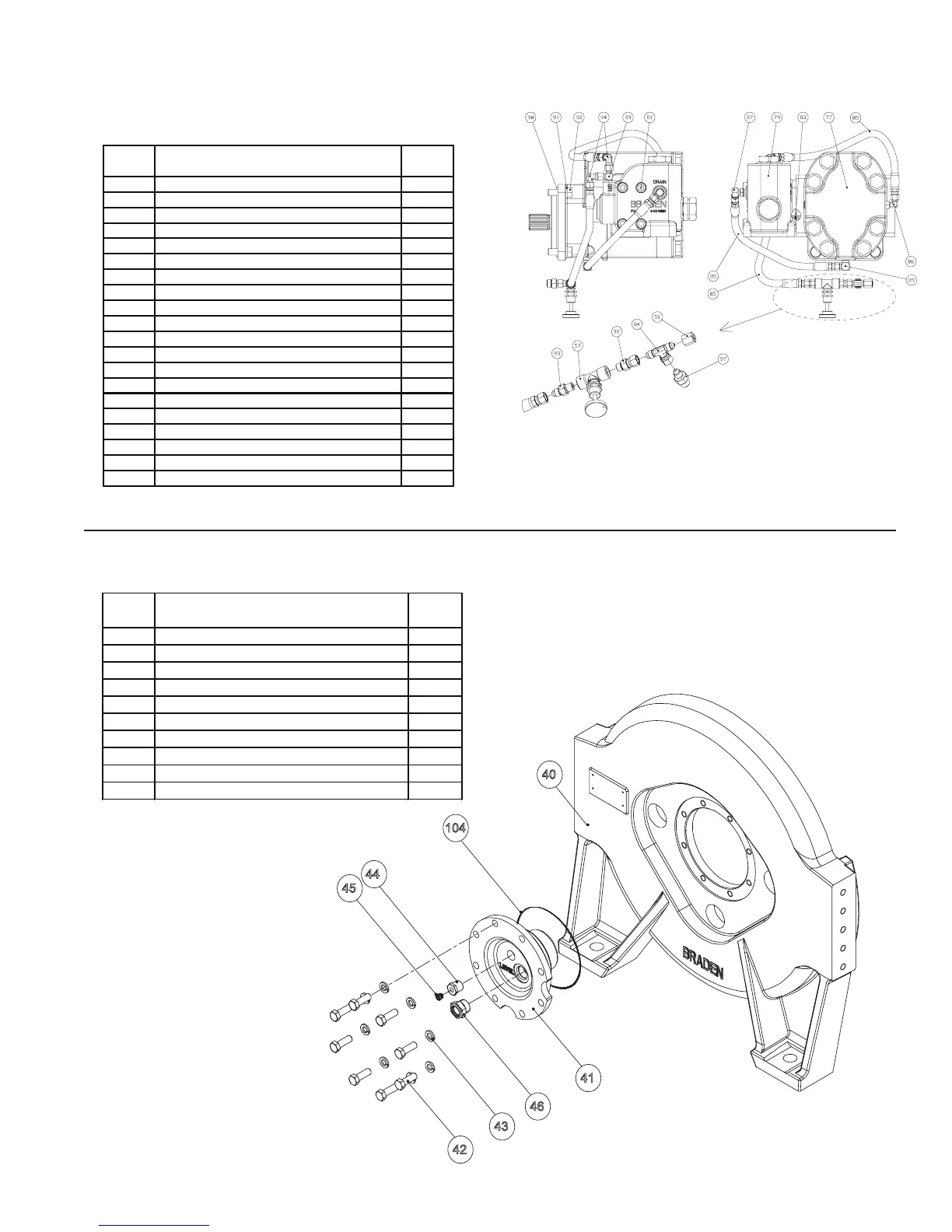

ITEM DESCRIPTION QTY.
40 Support Endplate 1
41 Bearing Support 1
42 Capscrew (1/2 NC X 1-1/2 G8 Z) 8
43 Lockwasher (1/2) 8
44 Reducer Bushing 1
45 Vent Plug 1
46 Sight Gauge 1
104 V-Ring Seal 1
105 Drive Screw (not shown) 4
106 Approval Plate (not shown) 1
Drum Support Assembly
ITEM DESCRIPTIONQTY.
56 Cap Nu
t1
57 Needle Valv
e1
59 Male Run Te
e1
77 Hydraulic Moto
r1
79 Brake Valv
e1
81 Capscrew (1/2 - 13 X 4-1/2 G8 Sock Hd
)4
83 O-Ring 1
84 Swivel Tee Fittin
g1
85 Hose Assembly 3
86 Elbow Fitting 1
87 Elbow Fitting 1
89 Elbow Fitting 1
90 Capscrew (1/2 - NC x 1-1/2 G5
)4
91 Lockwasher (1/2
)4
92 Adapter 1
93 Adapter 1
94 Swivel Nut Elbow, 90 degree 2
97 Adapter 1
98 O-Ring 1
-- Warning Tag (not shown) 1
Motor Group
