Getting Started 21
5. Place the Media Supply Roll on the Media Hub Assembly. Slide the media
retainer against the supply roll and tighten the thumb screw.
6. Route the media over the Guide Plate, between the Media Sensor, and over
the Platen Roller (located beneath the Printhead).
7. Route the media liner (backing) around the Tear Bar to the Media
Rewinder as shown in Figure 2-9.
8. Place the Clasp over the end of the media and rotate the Media Rewinder a
few turns.
9. Rotate the Media Edge Guide up and slide it to the media's edge.
10. Lift and snap the Lower Right Front Panel closed.
11. Close the Hinge Plate and latch the Printhead by rotating the Printhead
Latch clockwise to the latched position. Close the side cover.

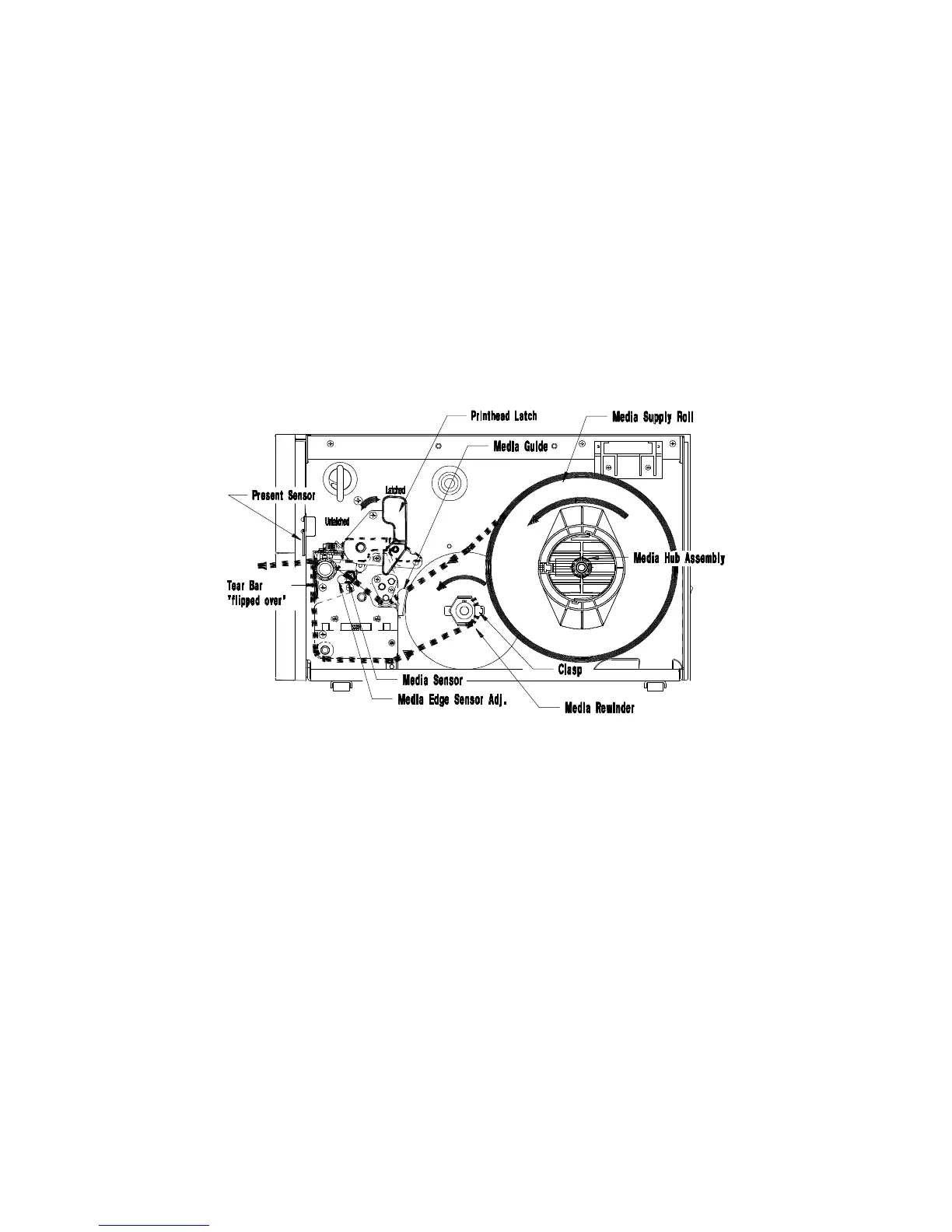

Figure 2-9 Installing Media using Peel and Present Option
