Brady 2024 User Manual

_______________________________________________________________________
22 Getting Started
2.6 Ribbon Installation and Removal
Follow the instructions below when installing the thermal transfer ribbon.
Ribbon Installation:
1. Open the Side Access Cover.
2. Rotate the Printhead latch counterclockwise to unlatch and raise the
Printhead.
3. Lower the Hinge Plate.
4. Place the new Ribbon Supply Roll on the Supply Hub, making sure that the
ribbon roll is pushed up against the hub flange.

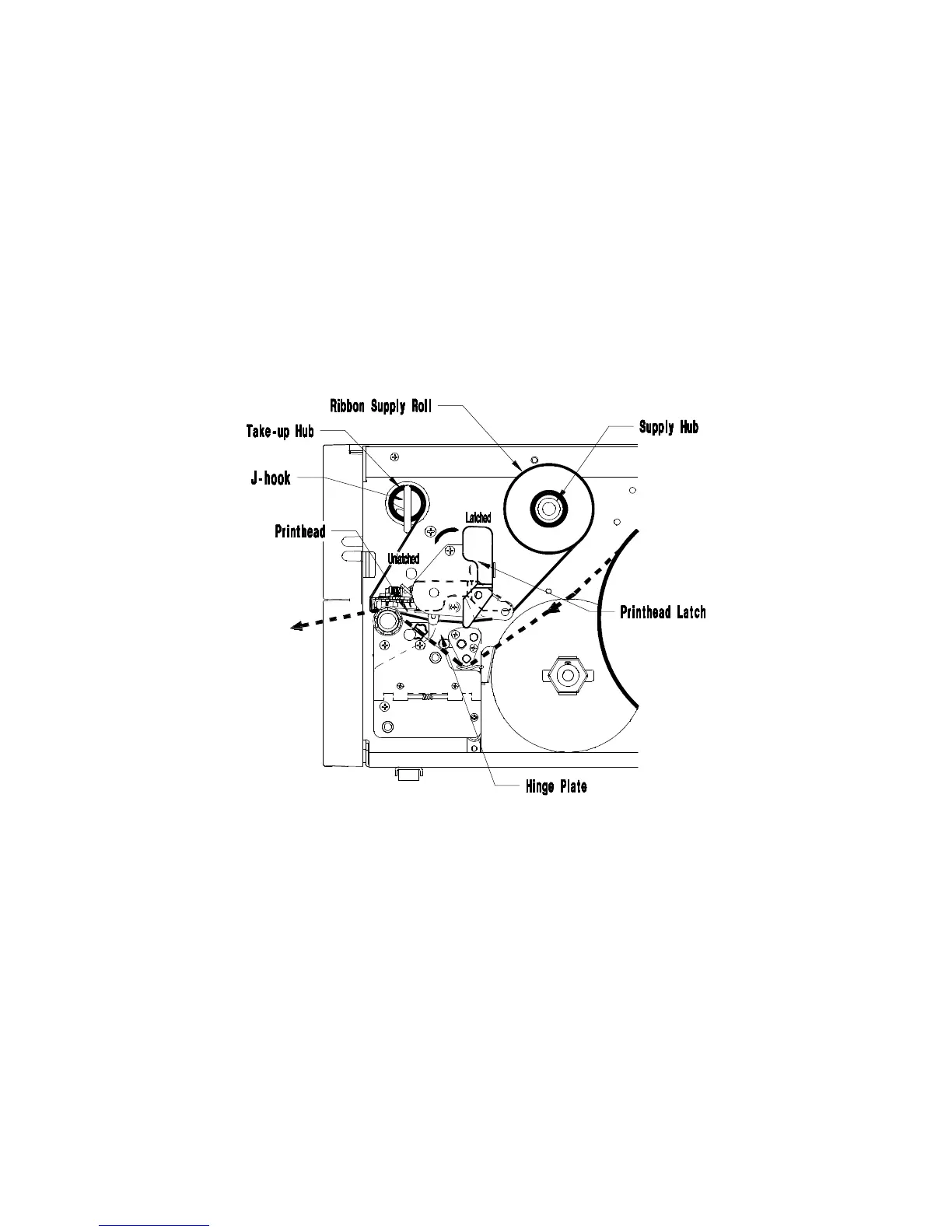

Figure 2-10 Ribbon Installation

Brady 2024 Specifications

General

Print Technology	Thermal Transfer
Resolution	203 dpi
Display	LCD
Connectivity	USB, Ethernet
Supported Media Types	Labels
Print Speed	4 inches per second (102 mm per second)
