18 Getting Started
2.5.1 Using the Optional Internal Rewind
If the Internal Rewind Option is installed in your Printer, then the media and
Arc Plate should be installed as described below.
NOTE: The Arc Plate is supplied only with the Internal Rewind Option.
1. Turn off the Printer and open the Side Access Cover.
2. Follow steps 2, 3, and 4 of Section 2.5 before installing media.
3. Open the Lower Right Front Panel.
4. Remove the Arc Plate from its stored position and install it on the front of
the Printer as shown in Figure 2-6.

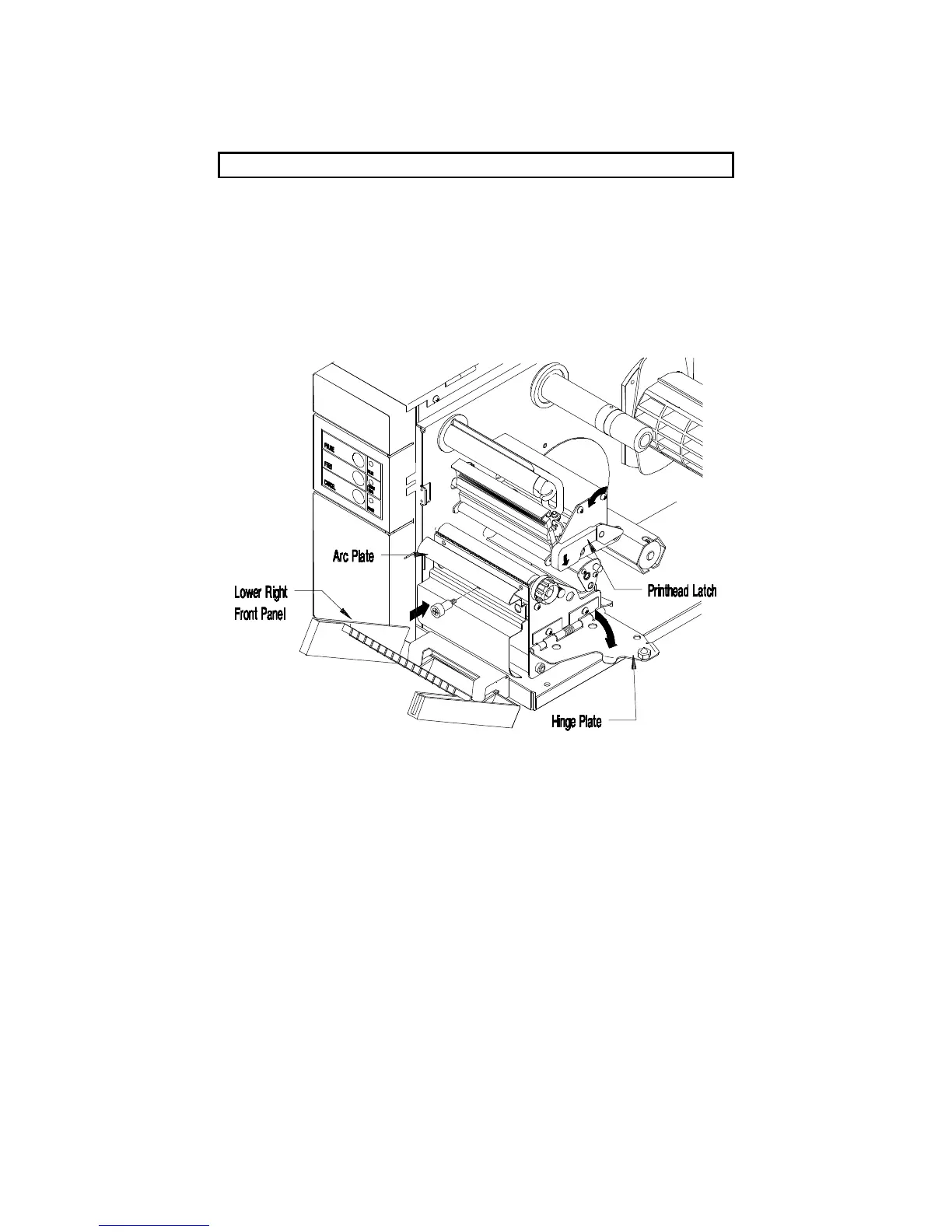

Figure 2-6 Installing the Arc Plate for Internal rewind
5. Place the media core adapters on the Media Hub Assembly if using 3"
cores, (see Figure 2-5a).
