Getting Started 17
7. Route the media over the Guide Plate, between the Media Sensor, and over
the Platen Roller, (located beneath the Printhead), as shown in Figure 2-5b.
8. Rotate the Media Edge Guide up and slide it to the media's edge.
9. Close the Hinge Plate and lower the Printhead by rotating the Printhead
Latch clockwise to the latched position.

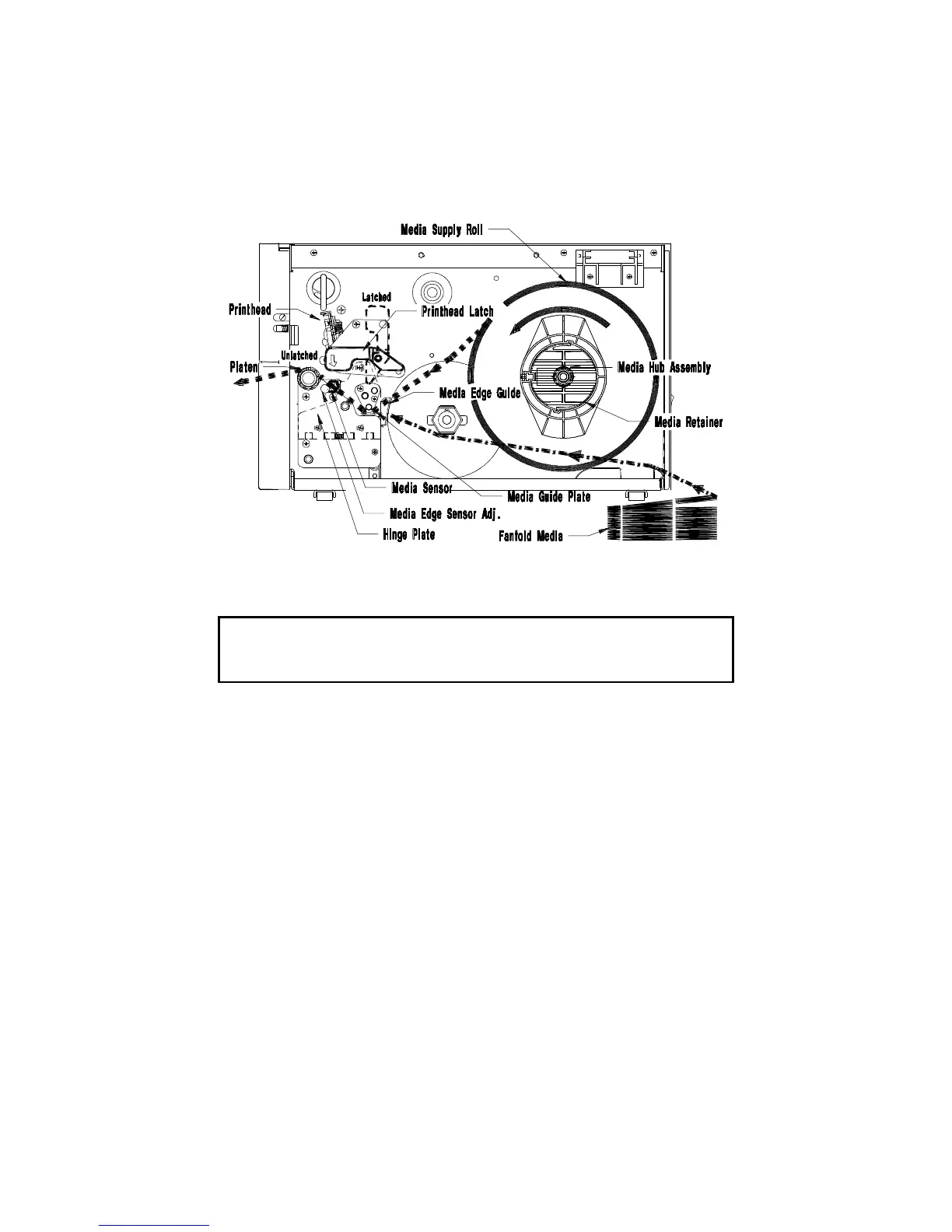

Figure 2-5b Media Installation
NOTE: If the media is not sensing, try adjusting the Media Edge Sensor by
turning the Media Edge Sensor Adjustment knob (see Section
5.3.2).
