16 Getting Started
NOTE: If using fanfold media, skip steps 5 and 6. Install fanfold media as
shown in figure 2-5b.
5. Place the 3" Media Core Adapters on the Media Hub Assembly, (if using
media with 3" media cores).

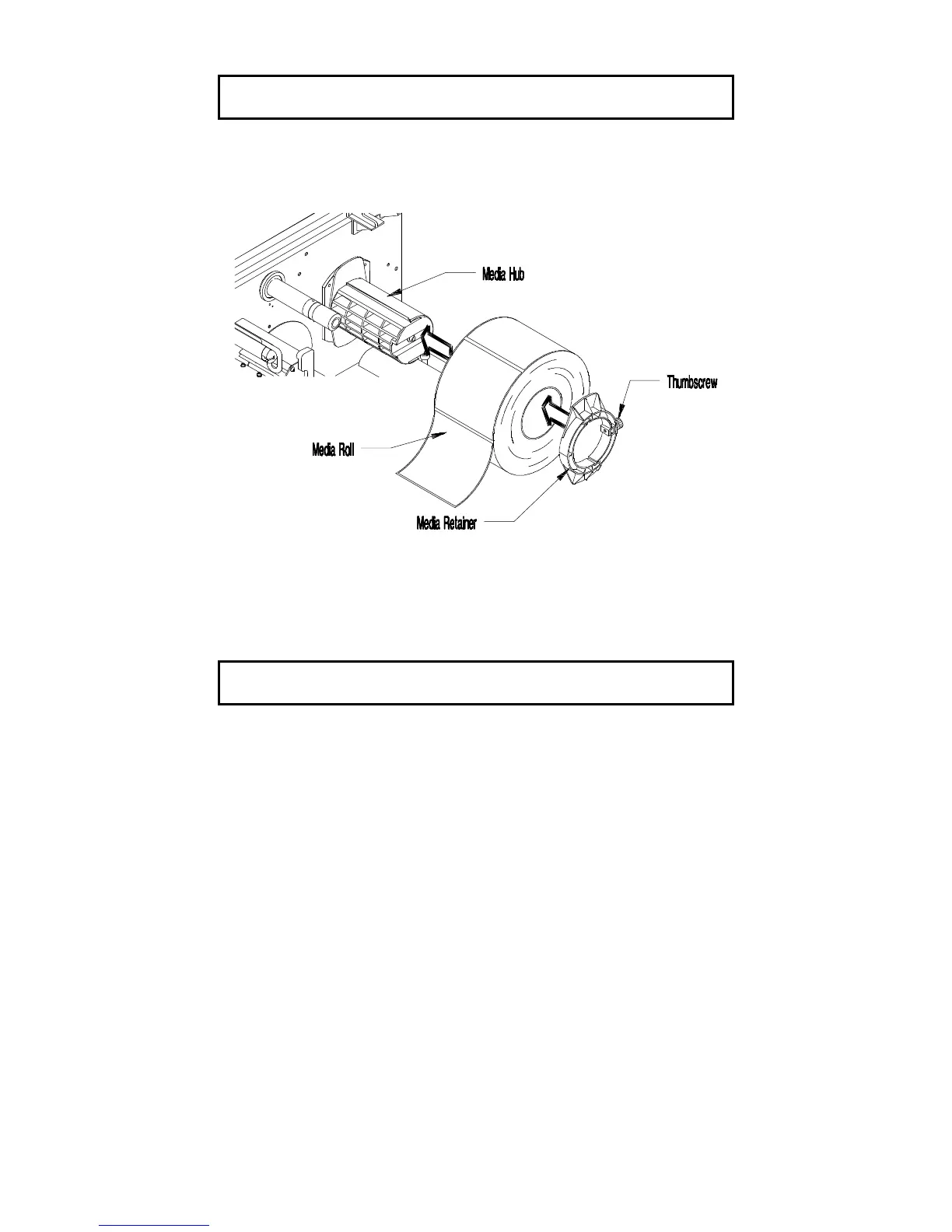

Figure 2-5a Media Installation (3" core)
6. Place the Media Supply Roll on the Media Hub Assembly. Slide the media
retainer against the supply roll and tighten the thumb screw.
NOTE: Do not use the media retainer if the Media Supply Roll is wider than
4 inches (102mm).
